LAFFERTY - USA
4-Way Drum Pick Up Stick for Mixing Stations
Item no. 07 491644

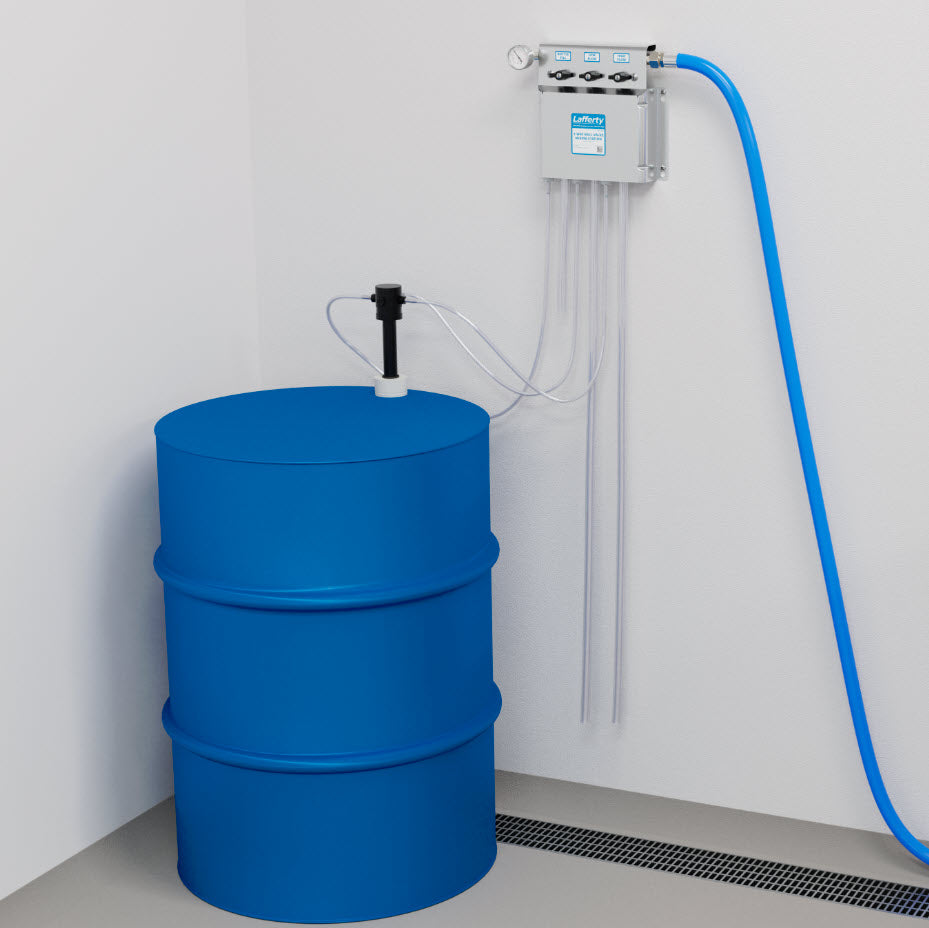

A Lafferty drum pick up stick with four outlets, so one drum of concentrate can feed up to four suction lines at once. It is made for multi outlet mixing stations, where one chemical is diluted to several ratios, for example a strong mix for a bucket and a weak mix for a spray bottle.
Key specifications
- Seals Viton or EPDM
- Material Polypropylene pipe and bung adapter, Hastelloy strainer
- Suits Mixing stations and units with spring loaded check valves only
Not sure it suits your chemical? Check it in our Chemical Compatibility Guide.
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Key benefits
- One drum feeds up to four outlets
- Made for multi outlet mixing stations
- Plugs supplied for unused outlets
- Viton or EPDM seals
Application fields
Product information

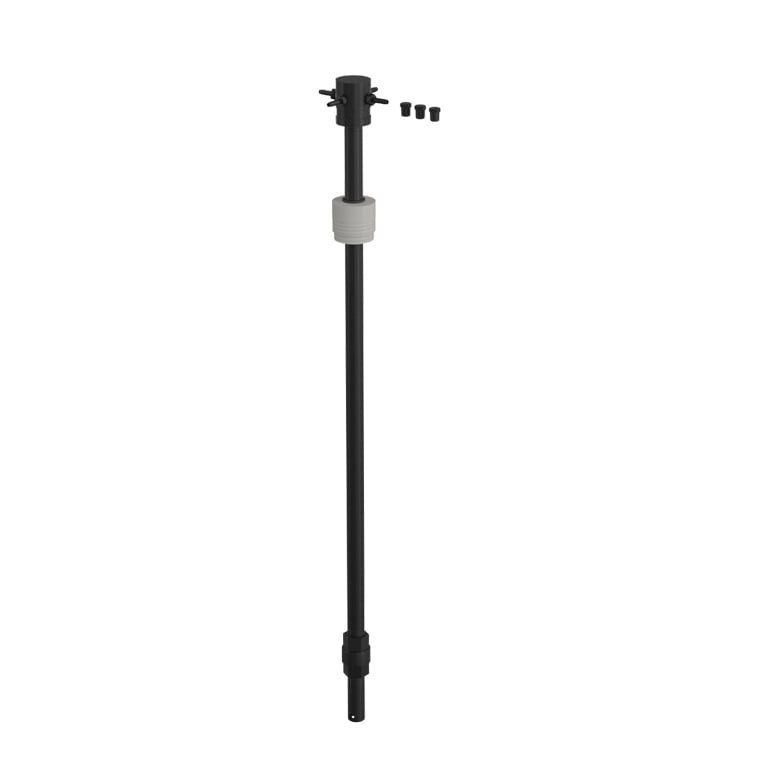

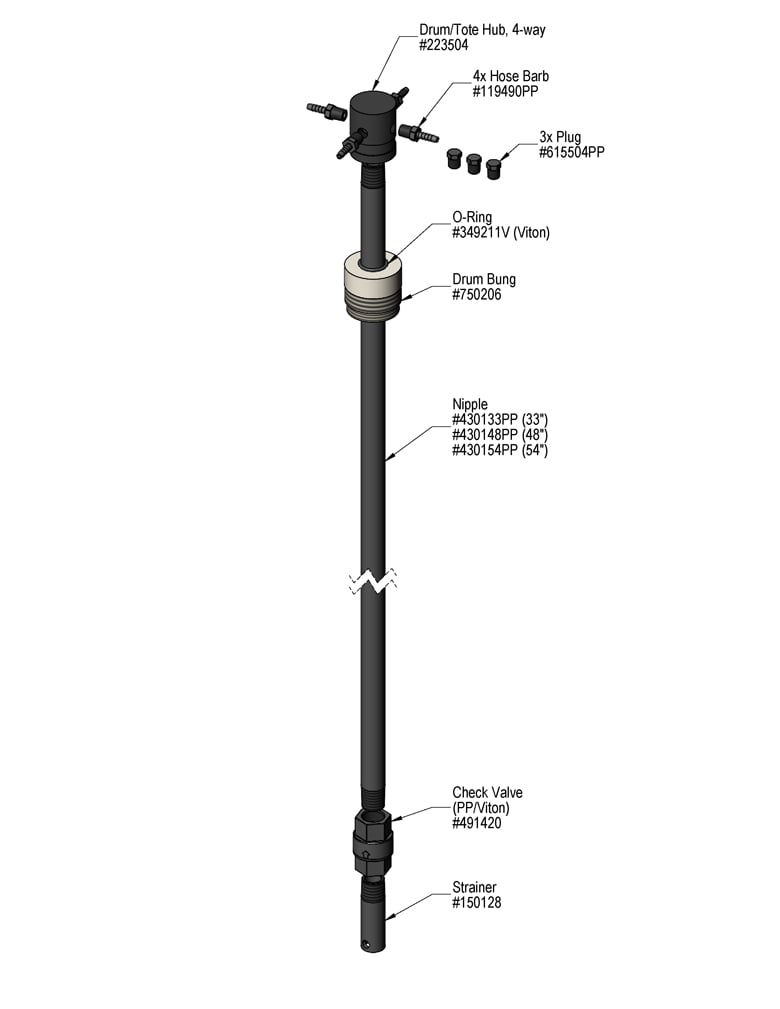

The stick is a rigid 1.9 cm (3/4 inch) polypropylene pipe with a Hastelloy strainer, a polypropylene bung adapter that fits coarse or fine threaded bung holes, four 0.64 cm (1/4 inch) hose barbs and three plugs for any outlets you do not use. Choose Viton or EPDM seals to suit your chemical.
Important: Lafferty says this stick can only be used with mixing stations and units that have spring loaded check valves, such as the 491402 or 491401. Ask us if you are not sure your unit has them. See our Lafferty mixing stations.
Technical details
- Brand
- LAFFERTY
- Item number
- 07 491644
- Lafferty Part No.

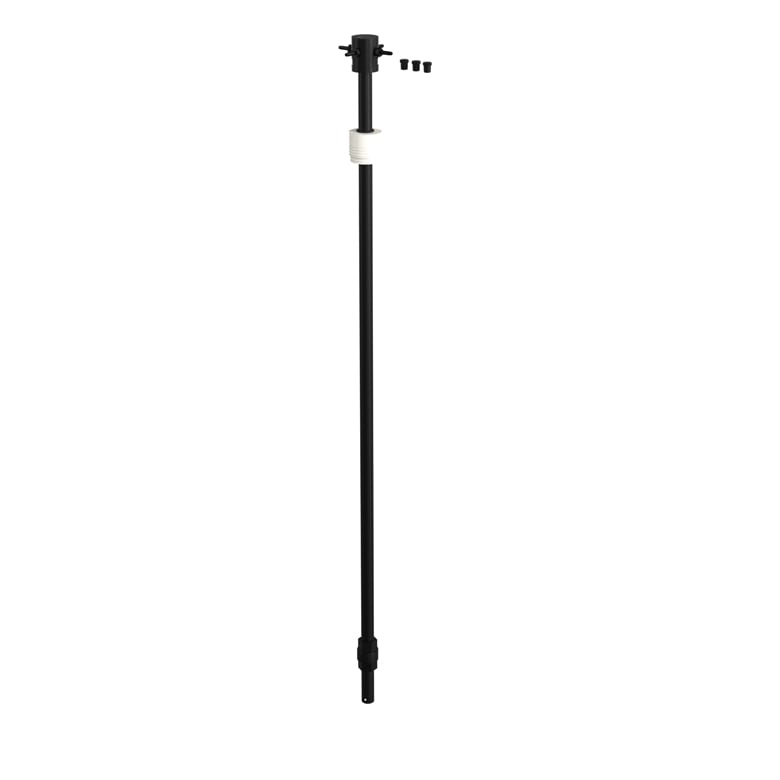

- 491644 (84 cm, Viton), 491644-E (84 cm, EPDM), 491649 (122 cm, Viton)
- Material
- Polypropylene pipe and bung adapter, Hastelloy strainer
- Pipe
- 1.9 cm (3/4 inch), rigid
- Outlets
- Four 0.64 cm (1/4 inch) hose barbs, three plugs supplied
- Max Drum Depth
- About 89 cm (84 cm stick) or 127 cm (122 cm stick)
- Seals
- Viton or EPDM
- Suits
- Mixing stations and units with spring loaded check valves only
