LAFFERTY - USA

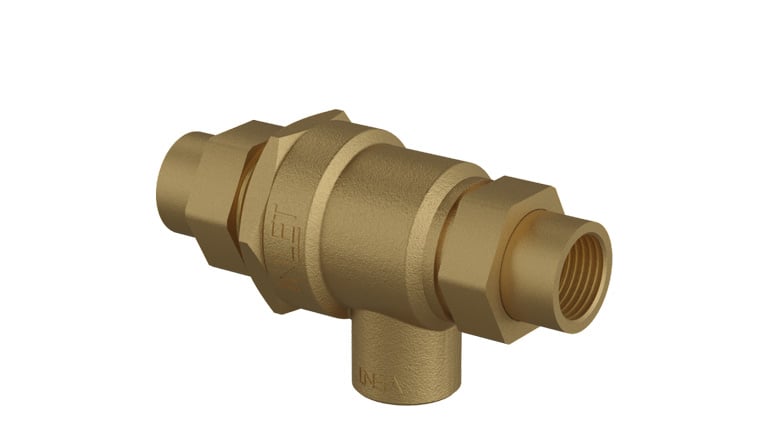

Backflow Preventer for Foamers and Sprayers
Item no. 07 270298
A point of use backflow preventer from Lafferty, fitted on the water line just before a water driven foamer, sprayer or mixing station. If the water supply drops or reverses, for example in a mains pressure drop, a power failure or when inlet valves are left open, it stops chemical solution and compressed air from being drawn back into the water supply.
Key specifications
- Suits Water driven foamers, sprayers and mixing stations
Made to order, about 3 to 4 weeks
Key benefits
- Stops chemical and air flowing back into the water supply
- Fits on the water inlet of foamers and sprayers
- 1.3 cm or 1.9 cm sizes
- Mounts horizontally or vertically
Application fields
Product information
Most Lafferty wall units are sold without a backflow preventer, so add one when you order. It suits continuous pressure, non health hazard, point of use installations. The discharge vent can be piped to a drain, and the body can be mounted horizontally or vertically. Choose the 1.3 cm (1/2 inch) or 1.9 cm (3/4 inch) size to match your water supply line.
Backflow rules in Australia are set by the plumbing code and your local water authority, so have a licensed plumber confirm the right device for your site before installing.
Technical details
- Brand
- LAFFERTY
- Item number
- 07 270298
- Lafferty Part No.

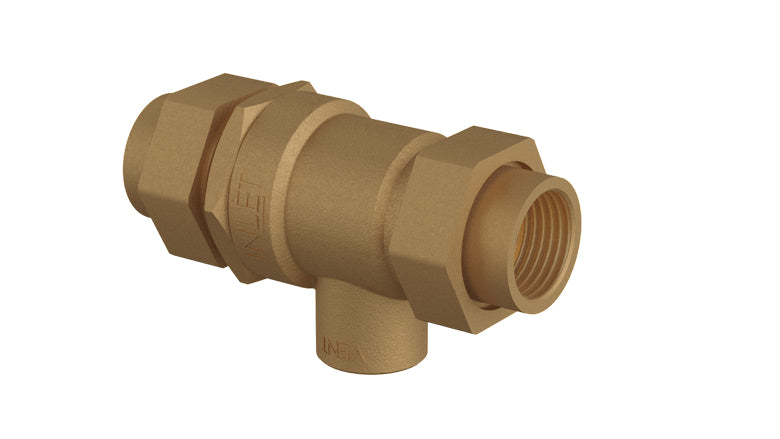

- 270298 (1.3 cm, 1/2 inch), 270299 (1.9 cm, 3/4 inch)
- Suits
- Water driven foamers, sprayers and mixing stations
- Installation
- Point of use, on the water inlet, horizontal or vertical
- Discharge Vent
- Can be piped to a drain
- Fittings
- US NPT threads, check against your site fittings
