FLOJET - USA
Air-Driven Double Diaphragm Pump
Item no. 16 G573205

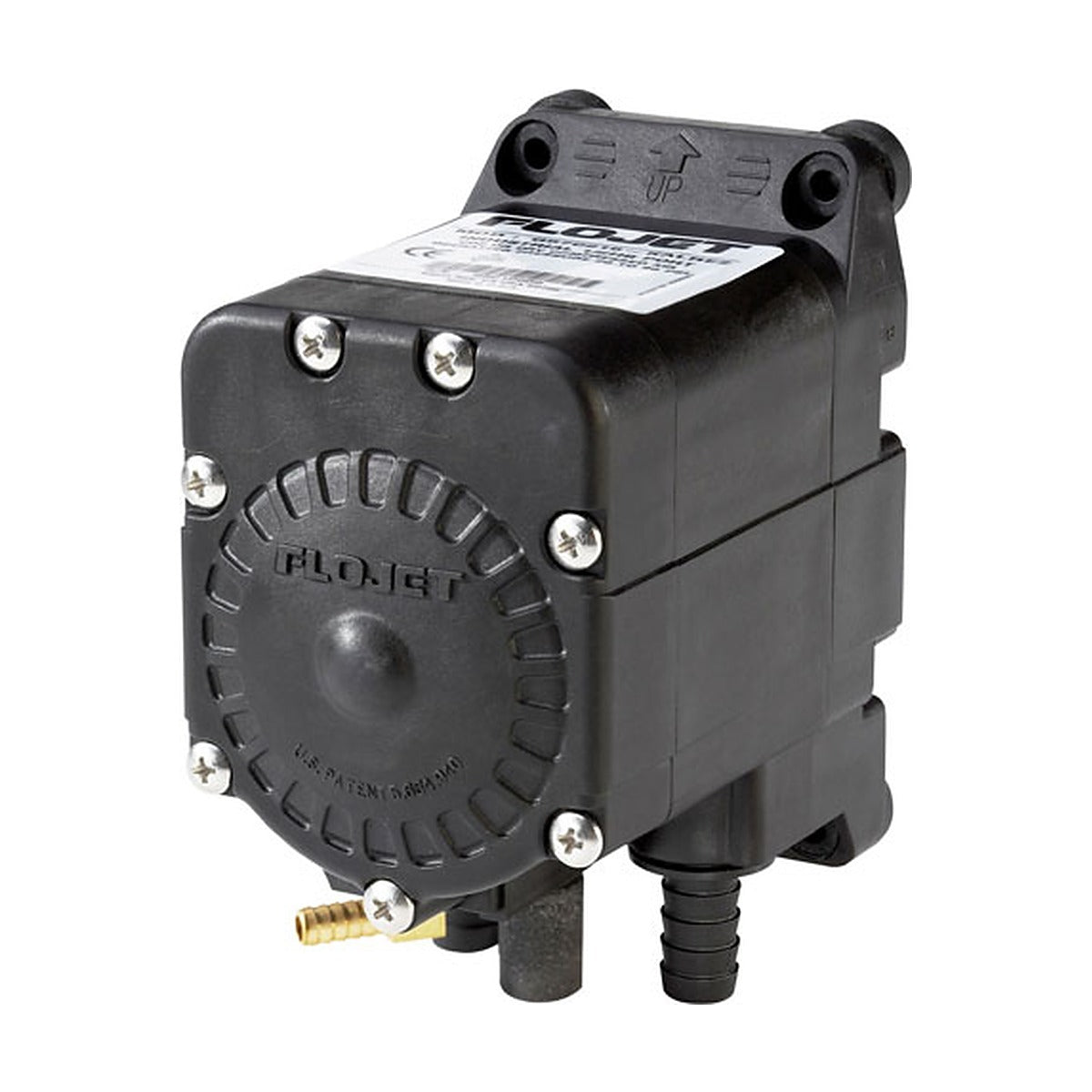

The Flojet G57 (G573205) is an air operated double diaphragm pump for handling high viscosity and aggressive liquids such as acids, alkaline products and hydrocarbon based solvents at relatively low pressures and flows. It is the pump used in our Flojet wall mount sprayer units, and we also supply it on its own as a replacement or for your own chemical transfer and dispensing setup.
For acids.
Not sure it suits your chemical? Check it in our Chemical Compatibility Guide.
Key benefits
- Handles acids, alkalis and hydrocarbon solvents
- Polypropylene body, VITON elastomers, Hastelloy springs
- Air operated, no electrics
- Self priming, lifts up to 4.5 m
- Passes solids up to about 3 mm
Product information
Features: polypropylene body with Viton elastomers and Hastelloy springs, powered by compressed air, self priming with suction lift up to 4.5 m depending on the viscosity of the liquid, and passes solids up to about 3 mm.
Applications: automotive and machinery cleaning, car wash and truck wash, chemical transfer and dispensing, parts washers, mining, and cement and concrete machinery.
Product code 16 G573205. Confirm your chemical against the pump materials before ordering. Pricing is on quote.
