LAFFERTY - USA
Drum Bung Mount Uni-Body A-25 Airless Foamer
Item no. 07 975075 DB

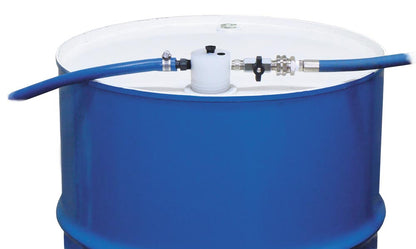

The Lafferty Uni-Body A-25 Drum Bung Mount is an airless foamer that screws straight into a drum bung and foams directly from the chemical drum, so there is no separate tank to fill or carry. Water pressure alone drives the venturi, and the airless foam wand turns the mix into wet, clinging foam, with no compressor.
Key specifications
- Hose 15 m discharge hose with ball valve
- Foam Wand Machined polypropylene airless foam wand
- Water Supply 2.4 to 8.6 bar (35 to 125 PSI), about 4.9 L/min at 2.8 bar
- Chemical Metering Venturi with 20 colour coded metering tips, hidden or exposed
- Body Machined polypropylene Uni-Body
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Key benefits
- Screws into the drum bung, no tank to fill
- No compressed air
- Hidden metering tip stops dilution changes
- Coarse and fine threads for different drums
- 15 m discharge hose
- Spare A-25 wand stocked
Application fields
What it is for
Drum direct foaming of sanitisers and cleaners in food processing and washdown areas, and foam cleaning small to medium areas. Tell us your chemical and drum size when you request a quote.
How it works

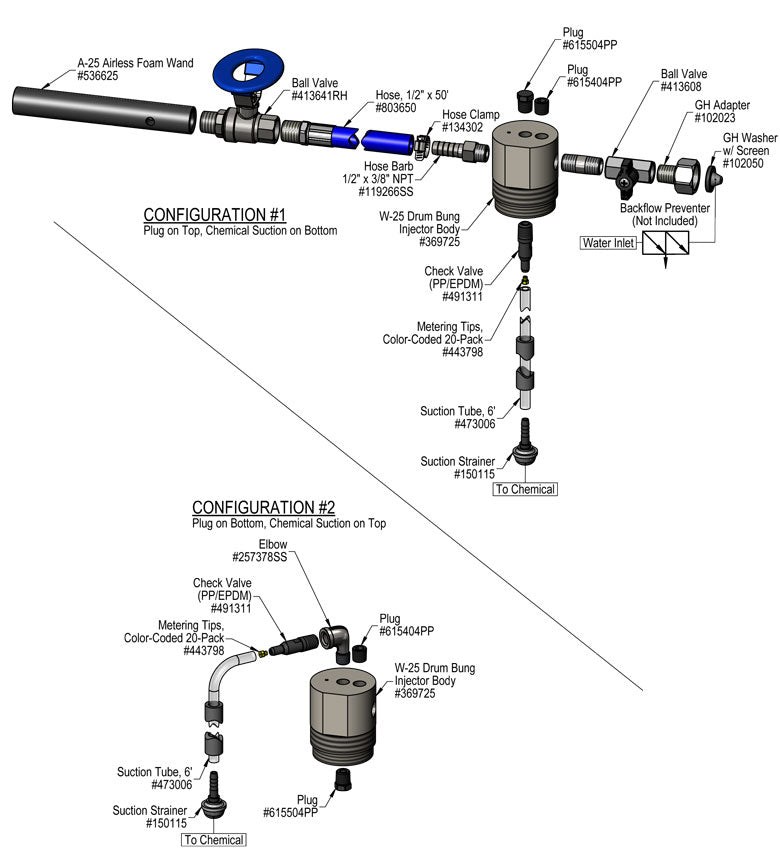

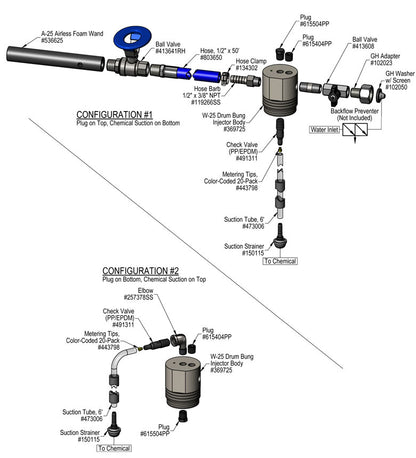

The machined polypropylene body has coarse and fine threads to fit different drums. Set it up with the metering tip hidden inside the drum, so the dilution cannot be changed without taking the unit off, or with the tip on top and the chemical tube through the drum's other bung. It needs water at 2.4 to 8.6 bar (35 to 125 PSI) and uses about 4.9 litres a minute at 2.8 bar.
Keep it running
It comes with 20 colour coded metering tips, a 15 m discharge hose with ball valve and a polypropylene airless foam wand. A genuine A-25 airless foam wand is stocked as a spare. Food plants and resellers can request a quote or apply for a trade account. Genuine Lafferty, supplied by NORA PRO.
Technical details
- Brand
- LAFFERTY
- Item number
- 07 975075 DB
- Part Number
- 07 975075 DB
- Mounting
- Drum bung, coarse and fine threads
- Water Supply
- 2.4 to 8.6 bar (35 to 125 PSI), about 4.9 L/min at 2.8 bar
- Air Supply
- None needed, airless
- Chemical Metering
- Venturi with 20 colour coded metering tips, hidden or exposed
- Body
- Machined polypropylene Uni-Body
- Hose
- 15 m discharge hose with ball valve
- Foam Wand
- Machined polypropylene airless foam wand
Common questions
Will it fit my drum?
The body has both coarse and fine threads for different drum bungs. Tell us your drum and we will confirm.
Can staff change the dilution?
Not easily if you use the hidden set up: the metering tip sits inside the drum.
