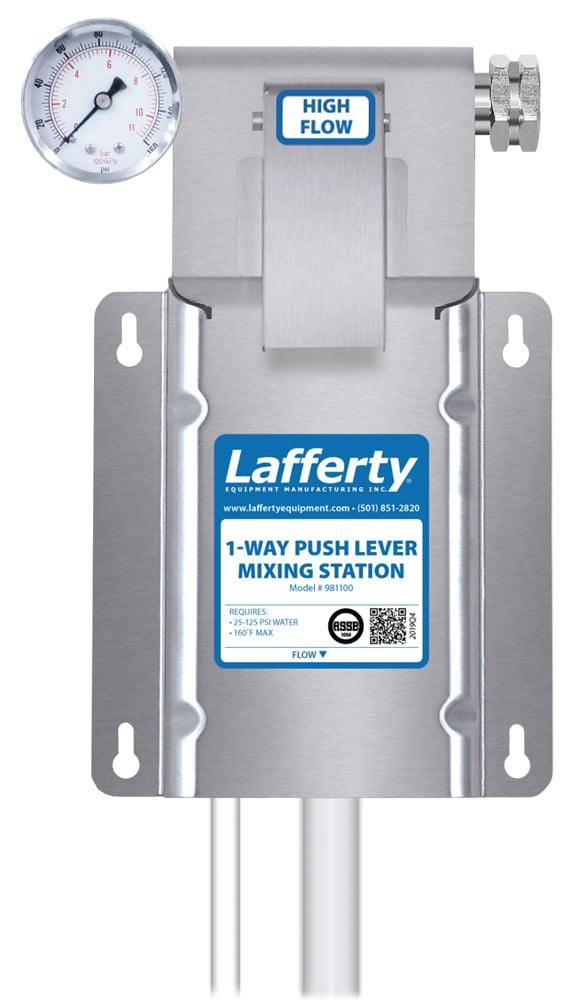

1-Way Push Lever Chemical Mixing Station (Wall Mount)
Item no. 07 981100
A chemical mixing station is a wall-mounted venturi unit that dilutes concentrate into your water supply at a fixed ratio and dispenses the ready-to-use solution straight into a bucket, sink or drum. The 1-Way version handles one chemical at one dilution, set by a colour-coded metering tip, so every batch comes out at the same strength no matter who is filling it. It runs on incoming water pressure alone, with no compressor and no power, and the push lever dispenses only while it is held.
Key specifications
- Water Requirements 1.7 to 8.6 bar (25 to 125 psi), 1.27 cm (1/2 inch) supply line minimum, up to 71°C
- Chemical Feed One chemical at one dilution ratio
- Construction Polypropylene injector body
Not sure it suits your chemical? Check it in our Chemical Compatibility Guide.
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Key benefits
- Same dilution every time
- Runs on water pressure, no power
- Dispenses only while the lever is held
- Vacuum breaker protects the water supply
- Bottle fill, low flow or high flow
Application fields
Product information
It sits upstream of your foamers and sprayers, feeding them correctly diluted chemical instead of leaving it to a measuring jug and a guess. NORA PRO supplies the Lafferty mixing station range from Brisbane. This is part number 07 981100, available in bottle fill, low flow and high flow configurations, so tell us the containers you fill and we will match it. An integrated vacuum breaker at the water inlet protects the potable supply. The chemical check valve is EPDM as standard, with a VITON version (Lafferty 491402) for acids and solvents. Concentrations and temperatures vary, so confirm your chemical against its SDS and send the details through, and we will check dilution ratio, metering tips and materials before we quote.
Applications: Chemical dilution and dispensing in food processing, commercial kitchens, cleaning operations and washdown bays
Technical details
- Brand
- LAFFERTY
- Item number
- 07 981100
- Part Number
- 07 981100
- Function
- Venturi chemical dilution and dispensing
- Chemical Feed
- One chemical at one dilution ratio
- Mounting
- Wall mount, fixed installation
- Operation
- Incoming water pressure, no compressed air or power
- Actuation
- Push and hold lever, dispenses only while held
- Chemical Metering
- Colour-coded metering tips, ratio set by tip selection
- Flow Configurations
- Bottle fill 2.3 to 3.8 L/min, low flow 7.2 to 12.9 L/min or high flow 15.1 to 27.6 L/min, factory set, specify when you enquire
- Construction
- Polypropylene injector body
- Backflow Prevention
- Brass vacuum breaker at the water inlet, ASSE 1055 certified unit
- Chemical Pick-Up
- Suction tube with strainer
- Chemical Check Valve
- EPDM standard, VITON 491402 available
- Water Requirements
- 1.7 to 8.6 bar (25 to 125 psi), 1.27 cm (1/2 inch) supply line minimum, up to 71°C
