LAFFERTY - USA

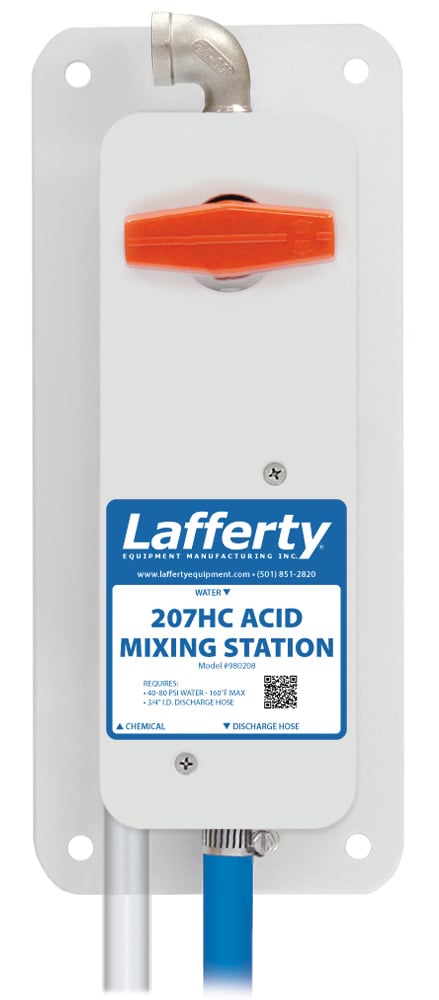

207HC Acid Mixing Station (Wall Mount)
Item no. 07 980208
The Lafferty 207HC Acid Mixing Station is a high concentrate proportioner for strong acids and other corrosive chemicals, such as concrete removers and aluminium brighteners. It mixes as strong as 1 to 1 with water thin chemicals and fills containers at about 7.6 L/min at 2.8 bar (40 psi), so there is no need to pour acid by hand.
For acids.
Key specifications
- Flow rate About 7.6 L/min at 2.8 bar (40 psi), up to 10.7 L/min at 5.5 bar (80 psi)
- Discharge Hose 1.9 cm (3/4 inch) ID x 3 m, open flow
- Chemical Acid and corrosive chemicals
Not sure it suits your chemical? Check it in our Chemical Compatibility Guide.
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Key benefits
- Mixes acid as strong as 1 to 1 with no hand pouring
- Fills at about 7.6 L/min on mains water
- Acid resistant polypropylene and PVC wetted parts
- Metering tips and plugs for weaker ratios
- Hands free ball valve filling
Product information
It runs on mains water pressure with no air or power. Wetted parts are acid resistant polypropylene and PVC, and weaker ratios are set with metering tips or plugs. Open the ball valve to fill hands free. Draw straight from a drum or tote with a Lafferty drum pick up stick or tote pick up stick, and keep the hose tidy on a small stainless steel hose rack.

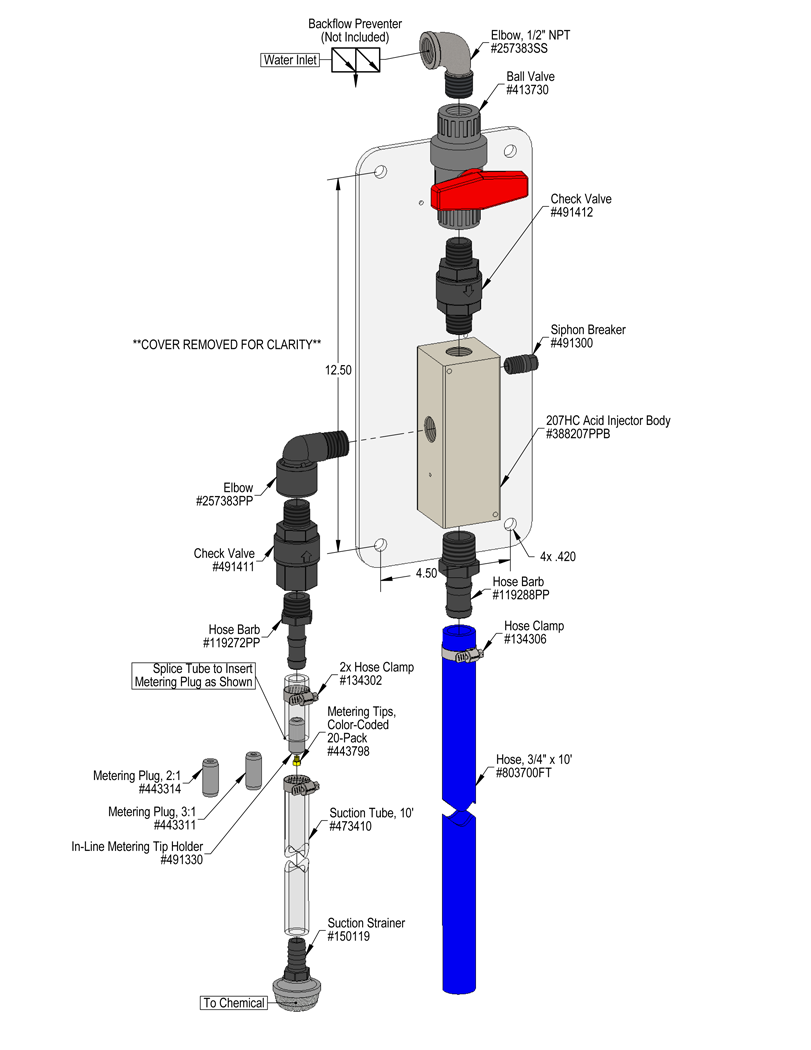

Supplied with a polypropylene mounting plate and cover, a PVC ball valve, a machined polypropylene injector with siphon breaker, 20 colour coded metering tips, metering plugs for 2 to 1 and 3 to 1, a 3 m suction tube with strainer, and a 3 m open flow discharge hose. A backflow preventer is not included and is needed on a drinking water supply. For a smaller flow, see the 105HC Acid Mixing Station, or the 207HC 2-Way for two chemicals.
Applications: Concrete truck and plant washing, aluminium brightening on trucks and trailers, and other acid cleaning
Technical details
- Brand
- LAFFERTY
- Item number
- 07 980208
- Lafferty Part No.
- 980208
- Mounting
- Wall, polypropylene plate with cover, mounting holes about 31.8 cm x 11.4 cm apart
- Power
- Mains water pressure
- Chemical
- Acid and corrosive chemicals
- Water Pressure
- 2.8 to 5.5 bar (40 to 80 psi)
- Flow Rate
- About 7.6 L/min at 2.8 bar (40 psi), up to 10.7 L/min at 5.5 bar (80 psi)
- Water Temperature
- Up to 71°C
- Supply Line
- 1.27 cm (1/2 inch)
- Ratio Range
- From about 457 to 1 (smallest tip) up to 1 to 1 (no tip), water thin chemicals at 2.8 bar (40 psi)
- Activation
- Ball valve, hands free
- Discharge Hose
- 1.9 cm (3/4 inch) ID x 3 m, open flow
- Shipping Weight
- 4.1 kg
- Backflow Preventer
- Not included, add a 1.3 cm (1/2 inch) backflow preventer on drinking water supplies
- Fittings
- 1.27 cm (1/2 inch) NPT water inlet, check against your site fittings
