LAFFERTY - USA

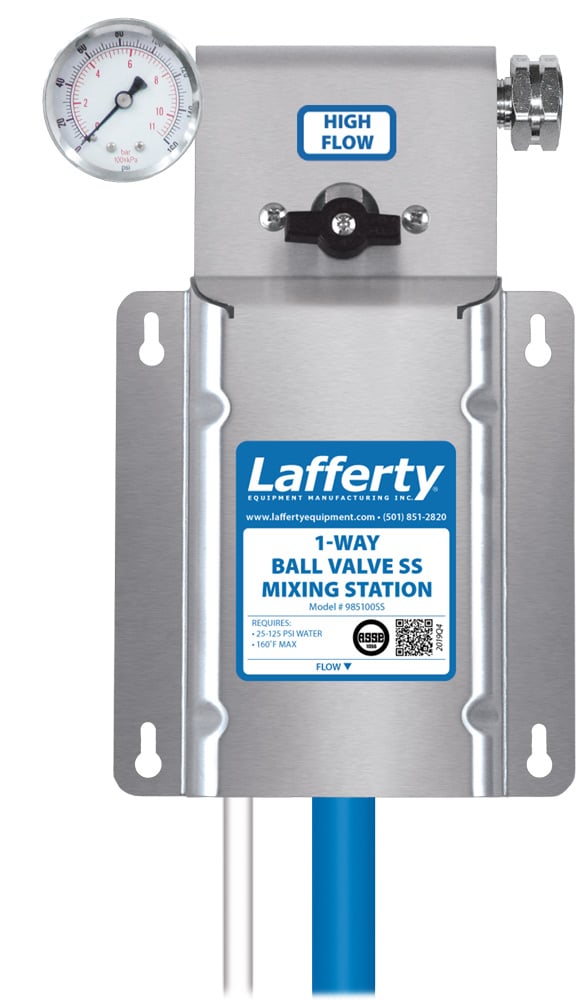

1-Way Ball Valve Stainless Steel Mixing Station (Wall Mount)
Item no. 07 985100SS
The Lafferty 1-Way Ball Valve SS Mixing Station dilutes one chemical to the right ratio and fills any container, from a spray bottle to a mop bucket or tank. The injector body is stainless steel and the wetted parts resist solvents, so it suits chemicals that would attack a standard polypropylene station. It runs on mains water pressure and is certified to ASSE 1055, the US standard for chemical dispensing systems with backflow protection.
Not sure it suits your chemical? Check it in our Chemical Compatibility Guide.
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Key benefits
- Stainless steel injector with solvent resistant wetted parts
- Hands free ball valve filling of any container
- ASSE 1055 certified with built in vacuum breaker
- Water gauge and colour coded tips for repeatable ratios
Application fields
Product information
Open the ball valve and it keeps filling hands free until you close it. The ratio is set with a colour coded metering tip, as strong as about 9 to 1 (high flow) or 4 to 1 (low flow) with no tip, so staff get the same mix every time. A water gauge helps with set up and the water inlet can go on either side.

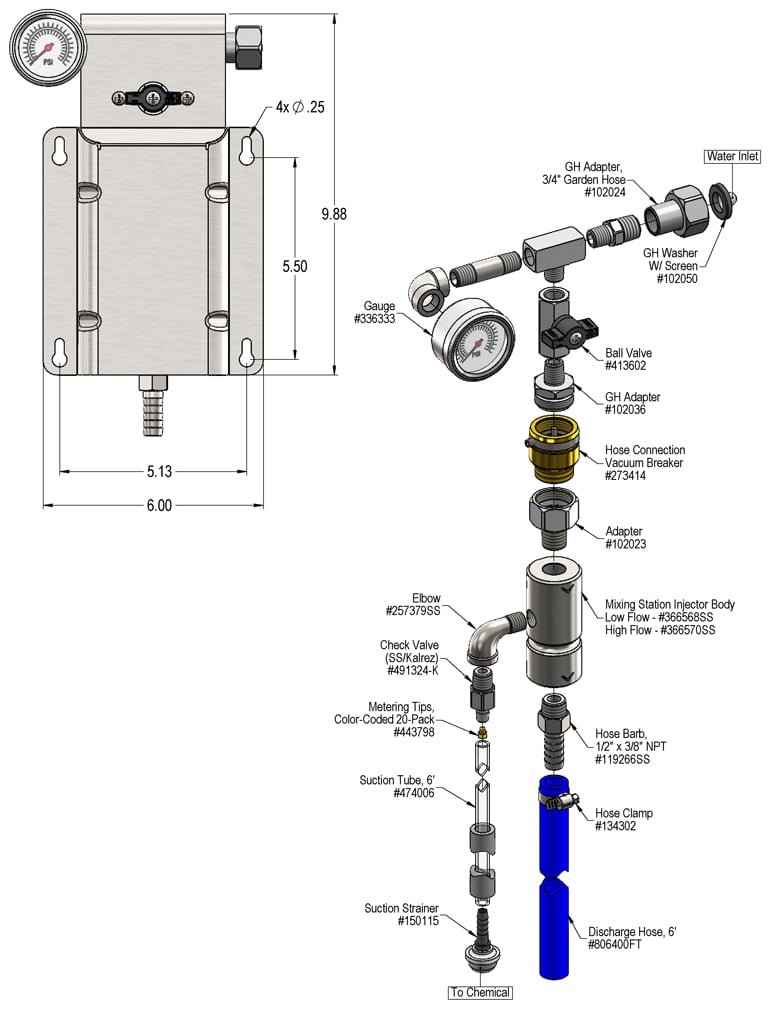

Lafferty factory sets the flow, so choose low flow or high flow when you order. Supplied with a stainless steel mounting bracket, a stainless steel injector, a ball valve, a vacuum breaker, a water gauge, a Kalrez check valve, 20 colour coded metering tips, a 1.8 m suction tube with strainer and a 1.8 m discharge tube, with polyurethane suction and discharge tubing. Water connects with a garden hose adaptor. For everyday water based chemicals, Lafferty also makes the polypropylene 1-Way Ball Valve Mixing Station.
Applications: Workshops, factories, printing and metal processing, and any site diluting solvent based cleaners
Technical details
- Brand
- LAFFERTY
- Item number
- 07 985100SS
- Lafferty Part No.
- 985100SS
- Mounting
- Wall, stainless steel bracket, 15.2 cm wide x 25.1 cm high
- Power
- Mains water pressure
- Injector
- Stainless steel, Kalrez check valve
- Water Pressure
- 1.7 to 8.6 bar (25 to 125 psi)
- Flow Options
- Low 7.4 L/min or high 15.1 L/min at 2.8 bar (40 psi)
- Water Temperature
- Up to 71°C
- Supply Line
- 1.27 cm (1/2 inch) minimum
- Strongest Ratio
- With no metering tip: about 9 to 1 high flow, 4 to 1 low flow
- Activation
- Ball valve, hands free
- Certification
- ASSE 1055
- Discharge Tube
- 1.8 m
- Shipping Weight
- 3.2 kg
- Fittings
- 1.9 cm (3/4 inch) US garden hose water inlet and NPT threads, check against your site fittings
