3-Way Ball Valve Chemical Mixing Station (Wall Mount)
Item no. 07 985300

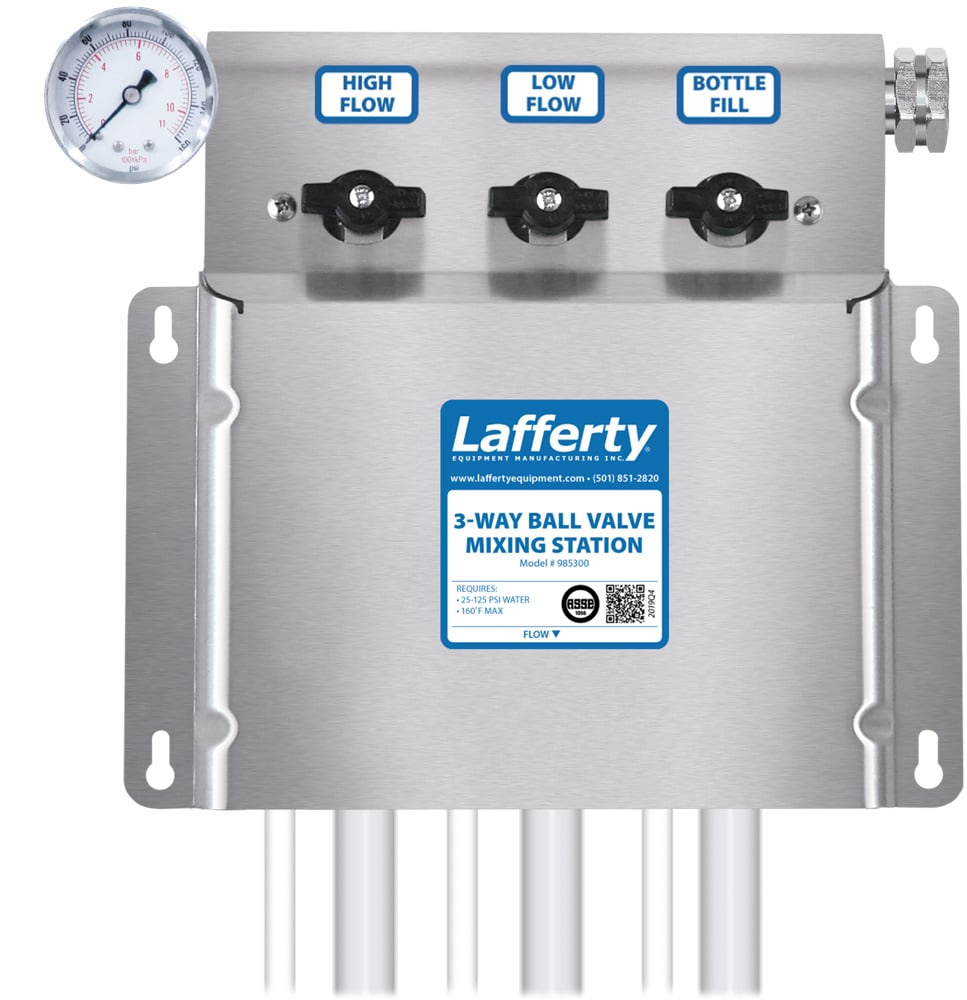

The Lafferty 3-Way Ball Valve Mixing Station dilutes up to 3 different chemicals to the right ratio and fills any container, from a spray bottle to a mop bucket or tank. Each of the 3 ball valves has its own injector and metering tip, so one wall unit can serve a cleaner, a degreaser and a sanitiser side by side. It runs on mains water pressure and is certified to ASSE 1055, the US standard for chemical dispensing systems with backflow protection, with a vacuum breaker built into each outlet.
Not sure it suits your chemical? Check it in our Chemical Compatibility Guide.
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Key benefits
- 3 chemicals from one wall unit, each at its own ratio
- Hands free ball valve filling of bottles, buckets and tanks
- ASSE 1055 certified with built in vacuum breakers
- Water gauge and colour coded tips for quick, repeatable set up
- Flow set per valve: bottle fill, low or high
Application fields
Product information
Open a ball valve and it keeps filling hands free until you close it. Each valve is set with a colour coded metering tip, so staff get the same mix every time and less concentrate is wasted. A water gauge helps with tip selection, the water inlet can go on either side, and stations can be run in series. To feed several outlets from one drum, add the 4-Way Drum Pick Up Stick.

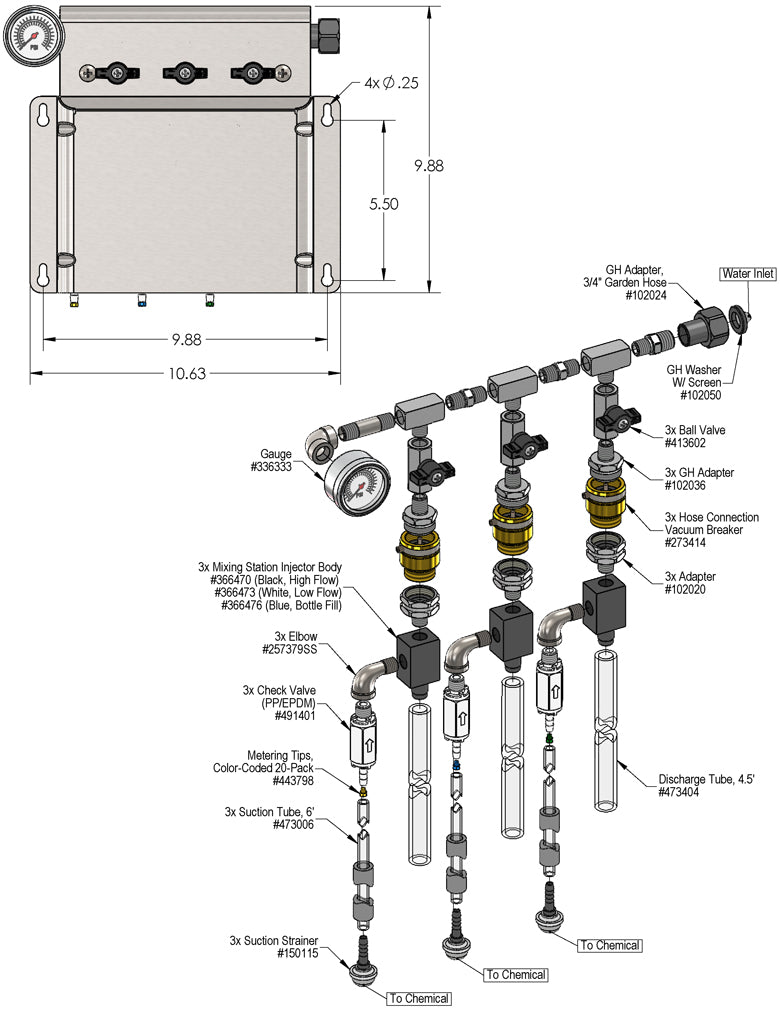

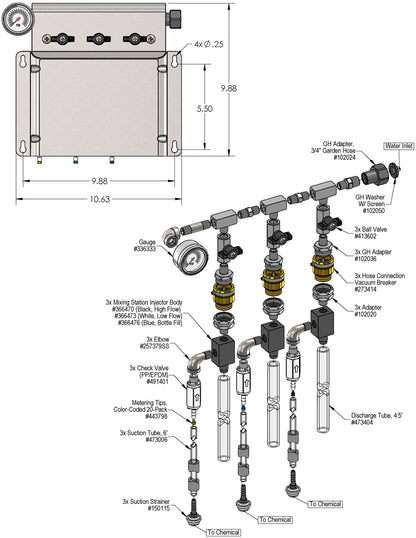

Lafferty factory sets the flow of each valve, so choose bottle fill, low flow or high flow for each one when you order. Supplied with a stainless steel mounting bracket, 3 polypropylene injectors, 3 ball valves, 3 vacuum breakers, a water gauge, EPDM check valves (a Viton check valve is available), 20 colour coded metering tips, 3 suction tubes of 1.8 m with strainers, and 3 discharge tubes (1.4 m for low and high flow, 0.3 m for bottle fill). For one chemical, see the 1-Way Ball Valve Mixing Station.
Applications: Cleaners' rooms, kitchens, food plants, hospitals, schools and any site that mixes several chemicals by hand today
Technical details
- Brand
- LAFFERTY
- Item number
- 07 985300
- Lafferty Part No.
- 985300
- Mounting
- Wall, stainless steel bracket, 27 cm wide x 25.1 cm high
- Power
- Mains water pressure
- Outlets
- 3 ball valves, one chemical each, ratio set separately
- Water Pressure
- 1.7 to 8.6 bar (25 to 125 psi)
- Flow Options
- Per valve: bottle fill 2.3 to 3.8 L/min, low 7.2 to 12.9 L/min, high 15.1 to 27.6 L/min
- Water Temperature
- Up to 71°C
- Supply Line
- 1.27 cm (1/2 inch) minimum
- Strongest Ratio
- With no metering tip: about 4.8 to 1 high flow, 3.5 to 1 low flow, 1.7 to 1 bottle fill
- Activation
- Ball valves, hands free
- Certification
- ASSE 1055
- Discharge Tubes
- 1.4 m for low and high flow, 0.3 m for bottle fill
- Shipping Weight
- 4.1 kg
- Fittings
- 1.9 cm (3/4 inch) US garden hose water inlet and NPT threads, check against your site fittings
