LAFFERTY - USA

Model 10SS Bypass 2-Way Airless Foam/Spray System (No Gun or Hose)

Item no. 07 969712

The Lafferty Model 10SS Bypass 2-Way is a wall mounted wash and rinse system for smaller pressure washers from 8.3 to 12.9 L/min. It draws from two chemical containers, so one hose can apply two products, or one product at two strengths, then rinse.

Discharge Hose At least 0.95 cm (3/8 inch) ID, up to 61 m (not included)
Gun and Hose Not included
Chemicals 2, separate ball valves
Material Stainless steel

See all specifications

Request a Quote Apply for a Trade Account

Not sure it suits your chemical? Check it in our Chemical Compatibility Guide.

Made to order, about 3 to 4 weeks

Application fields

Product information

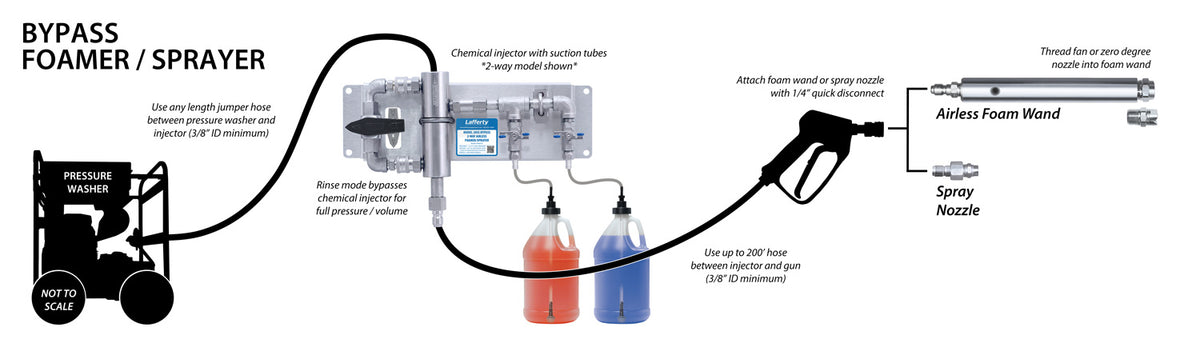

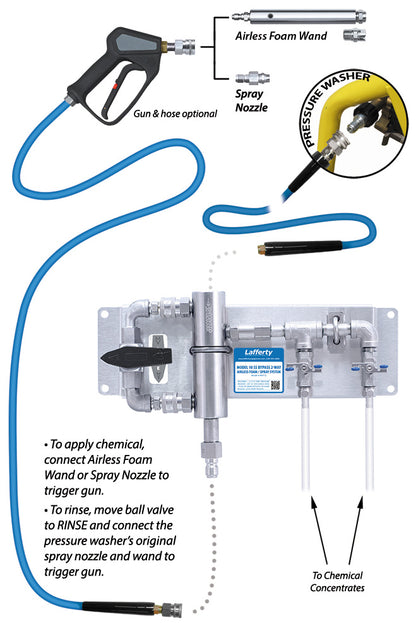

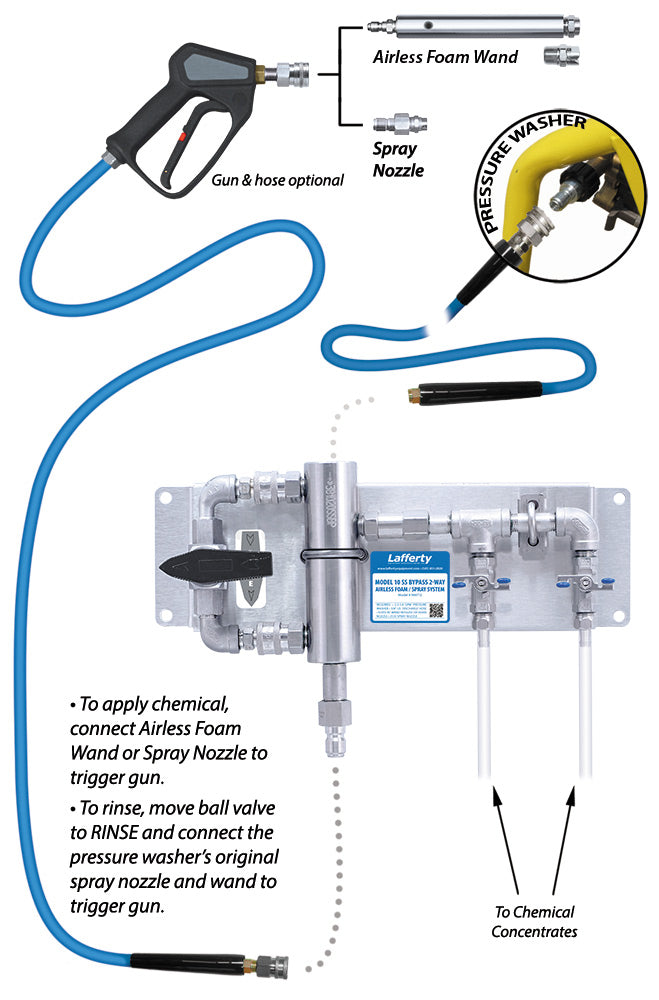

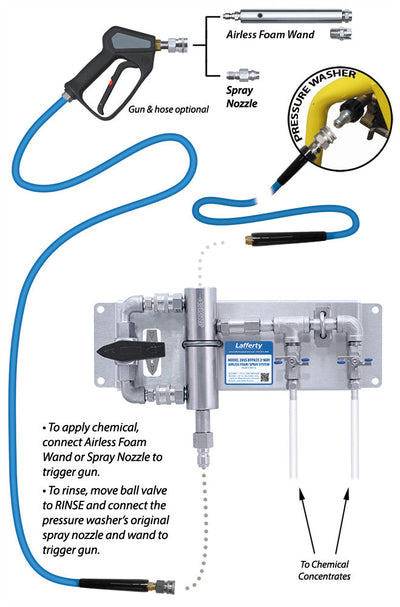

Each chemical has its own ball valve and metering tip. Click on the airless foam wand to foam up to 6.1 m, or the fan sprayer nozzle for non foaming products. Open the bypass ball valve and the water skips the injector for a full pressure rinse. No chemical goes through the pump.

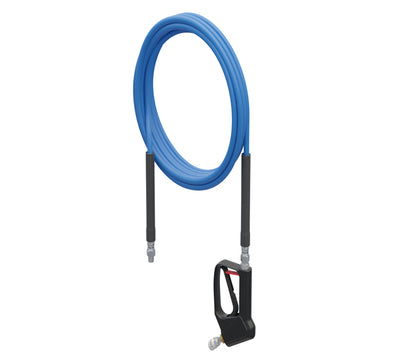

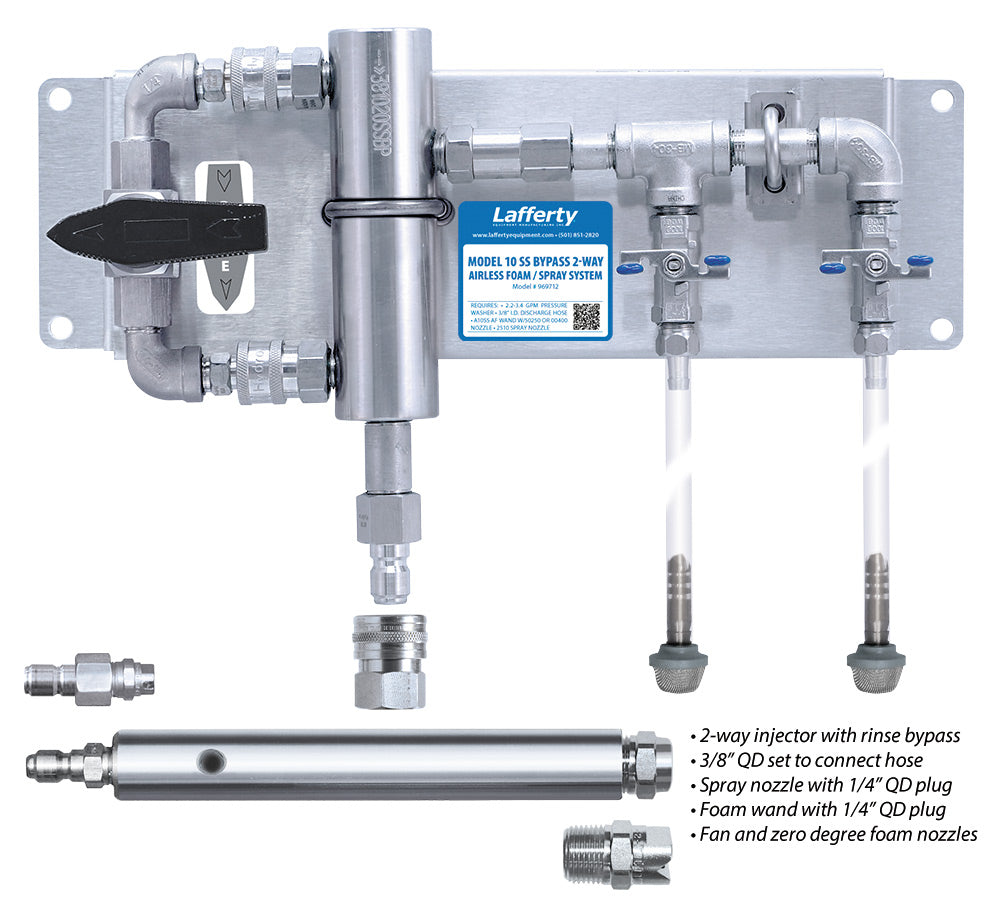

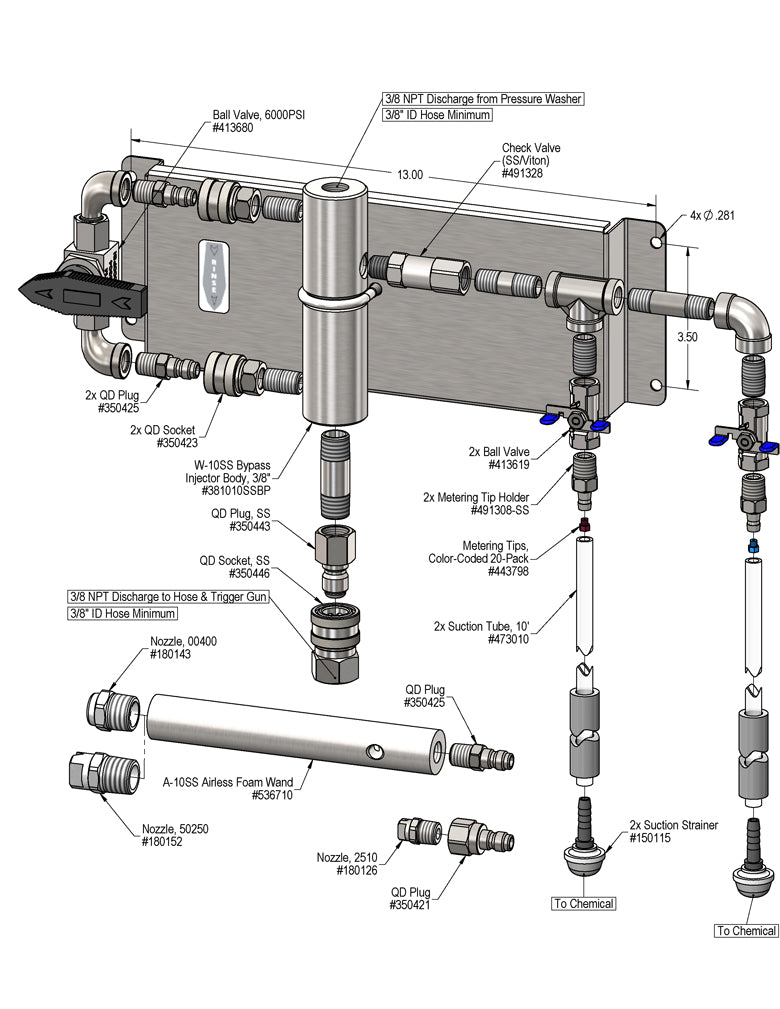

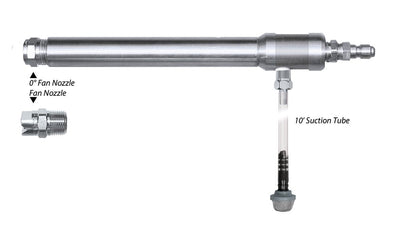

Supplied with the stainless back plate, bypass injector body, ball valve rated to 414 bar (6000 psi), two chemical ball valves with metering tip holders, quick connect plugs and sockets, stainless VITON check valve, 20 colour coded metering tips, two 3 m suction tubes with strainers, the A-10SS airless foam wand with fan and zero degree nozzles, and a fan sprayer nozzle. Gun and hose are not included, and Lafferty offers a 15.2 m hose and gun kit.

Applications: Truck and fleet washes, food plants, mine workshops and wash bays with a pressure washer
