LAFFERTY - USA

Model 20SS Bypass 2-Way Airless Foam/Spray System (No Gun or Hose)

Item no. 07 969752

The Lafferty Model 20SS Bypass is a stainless steel airless foam and spray system that runs off a pressure washer, applying two different chemicals and then rinsing at full pressure from the same trigger gun. There is no compressor and no air line: the foam wand draws atmospheric air as the water passes through it, giving a wet foam that clings to vertical surfaces.

Discharge Hose 0.95 cm (3/8 inch) internal diameter, not supplied with this model
Trigger Gun Optional, not included with this model
Water Supply Pressure washer rated 13 to 21 litres per minute, 69 bar (1,000 PSI) minimum
Chemical Pickups Two, each on its own ball valve, for two chemicals or two concentrations
Construction Machined stainless steel injector body and base

See all specifications

Request a Quote Apply for a Trade Account

Not sure it suits your chemical? Check it in our Chemical Compatibility Guide.

Made to order, about 3 to 4 weeks

Key benefits

Two chemicals and a full pressure rinse from one gun
No compressor or air line
No chemical through the washer pump
Foam or straight spray, by quick connect
Throws foam up to 7.6 m
Machined stainless steel body

Application fields

What it is for

Truck, fleet and heavy plant washdown, food processing and plant sanitising, and two chemical foam cleaning and rinsing from a pressure washer. Two chemical pickups, each on its own ball valve, let you run an alkaline detergent and an acid brightener from the one unit, or two strengths of the same chemical. Lafferty rates the dilution at 7:1 and leaner.

Wetted components are built for chemical service, but concentrations and temperatures vary, so confirm your chemicals against the SDS and send the product details through to us.

How it works

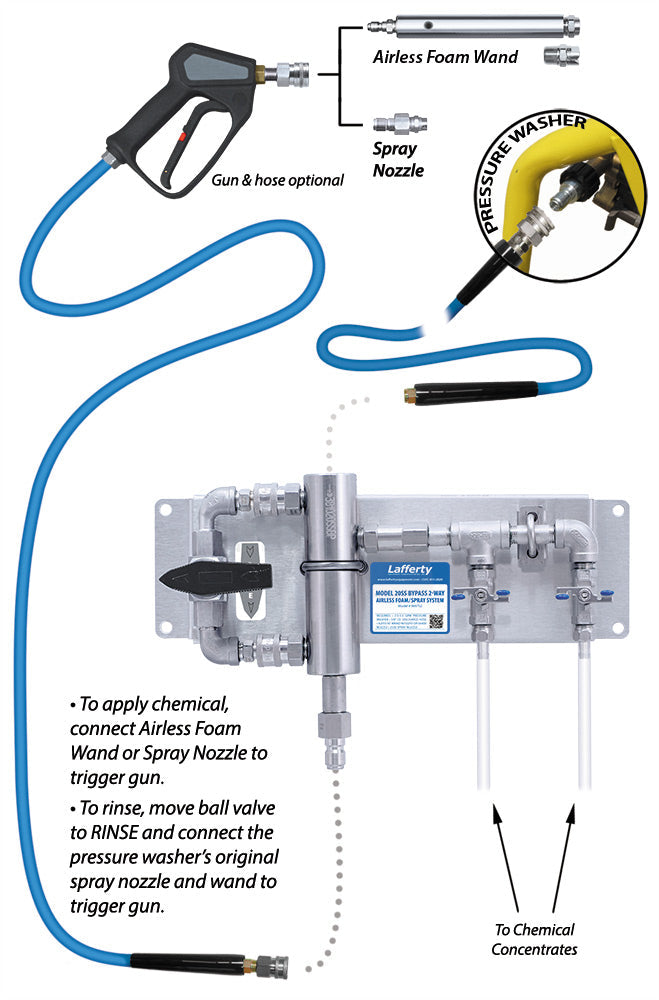

It suits pressure washers that deliver 13 to 21 litres per minute at 69 bar (1,000 PSI) or more. A venturi injector draws each chemical through an interchangeable metering tip and blends it into the water, and no chemical passes through the washer pump. Quick connect the airless foam wand for clinging foam, using the fan nozzle for wide coverage up close or the zero degree nozzle to throw foam up to 7.6 m. For a chemical that should not foam, quick connect the spray nozzle instead.

To rinse, move the bypass valve across and fit your washer's own wand and nozzle to the gun. Rinse runs at full volume and pressure, with no need to disconnect the injector.

What is in the box

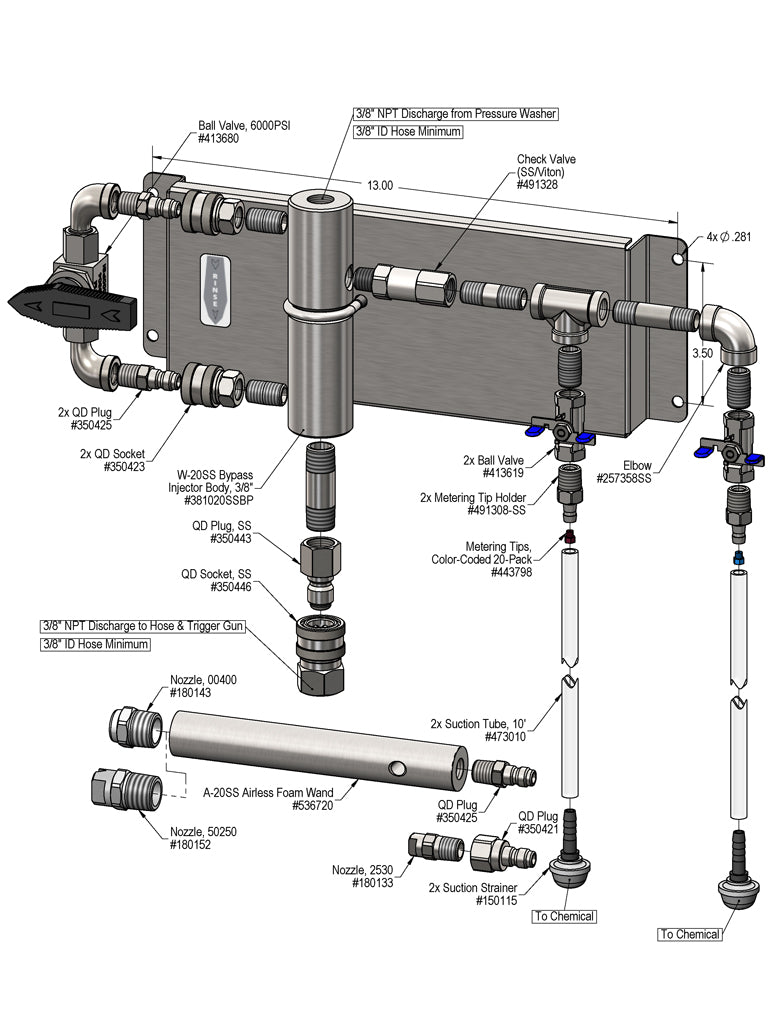

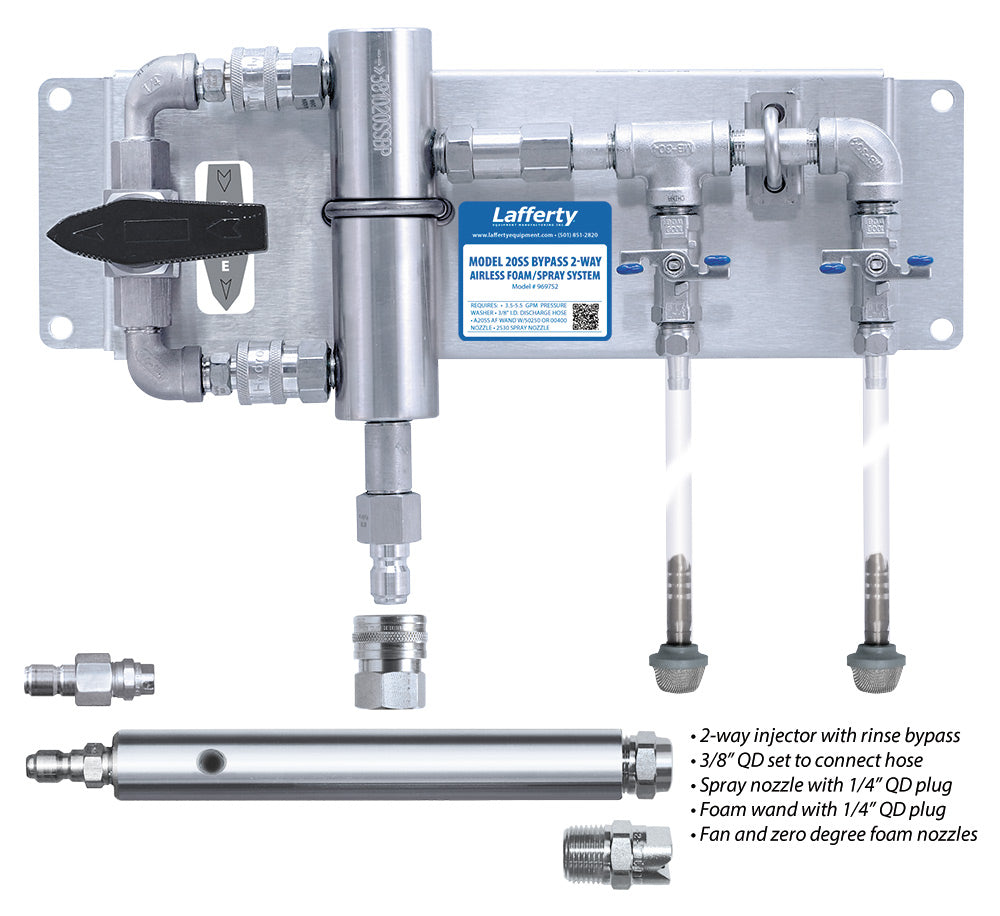

This is part number 07 969752, supplied as the stainless steel base with the injector, bypass and chemical valves, 20 colour coded metering tips, plus the airless foam wand and spray nozzle. The trigger gun and discharge hose are optional and are not included with this model. Tell us your washer flow when you request a quote and we will confirm the metering tip.

Fleet operators, food plants and resellers can request a quote or apply for a trade account. Genuine Lafferty, supplied by NORA PRO. See all foamers and foam injection equipment and the full Lafferty range.

Technical details

Brand: LAFFERTY
Item number: 07 969752
Part Number: 07 969752
Model: Model 20SS Bypass 2-Way Airless Foam/Spray System
Operation: Pressure washer fed, airless, no compressed air required
Water Supply: Pressure washer rated 13 to 21 litres per minute, 69 bar (1,000 PSI) minimum
Discharge Hose: 0.95 cm (3/8 inch) internal diameter, not supplied with this model
Chemical Pickups: Two, each on its own ball valve, for two chemicals or two concentrations
Chemical Metering: Venturi injector with 20 interchangeable metering tips, 7:1 and leaner
Rinse: Move the bypass ball valve to rinse and fit your washer's own wand and nozzle
Applicators: Airless foam wand with fan and zero degree nozzles, spray nozzle for straight chemical, both quick connect to the gun
Foam Throw: Up to 7.6 m with the zero degree nozzle
Mounting: Stainless steel base plate, wall mount
Construction: Machined stainless steel injector body and base
Wetted Components: Chemical-resistant, confirm against your SDS
Pump Protection: No chemical passes through the pressure washer pump
Trigger Gun: Optional, not included with this model
