GLORIA - Germany
PRO 500 JET | 5.0L Industrial Grade Poly Sprayer | Acid Resistant
Item no. 02 003652.AR5
The PRO 500 JET Acid Resistant is the Gloria PRO 500 JET 5 litre poly sprayer, modified by NORA PRO with an acid resistant trigger valve and a PVDF nozzle. It has VITON (FKM) seals and a plastic lance with extension, holds 5.0 L in a 7.0 L tank, works at up to 3 bar (44 PSI) and comes with a 180 cm hose.
VITON (FKM) seals. For acids.
Key specifications
- Liquid capacity 5.0 L
- Total capacity 7.0 L
- Max pressure 3 bar / 44 PSI
- Seals VITON (FKM)
- Nozzle PVDF
- Hose 180 cm
Not sure it suits your chemical? Check it in our Chemical Compatibility Guide.
Key benefits
- VITON (FKM) seals and an acid resistant spring
- PVC lance and PVDF flat fan nozzle
- Holds 5.0L in a 7.0L HDPE tank
- Level indicator and base ring
- Safety relief valve vents excess pressure
- Seal kit, trigger, valve, hose and lance stocked as spares

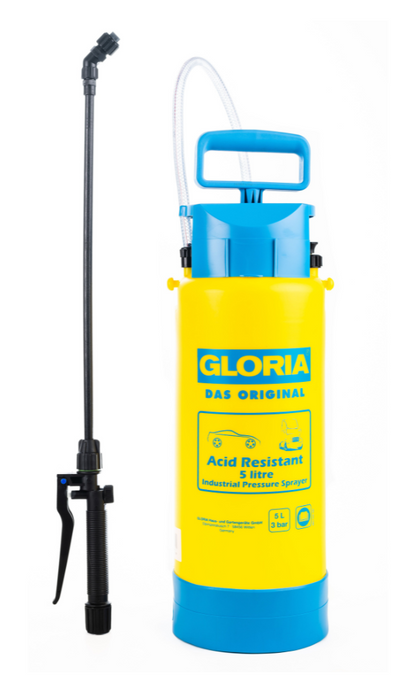

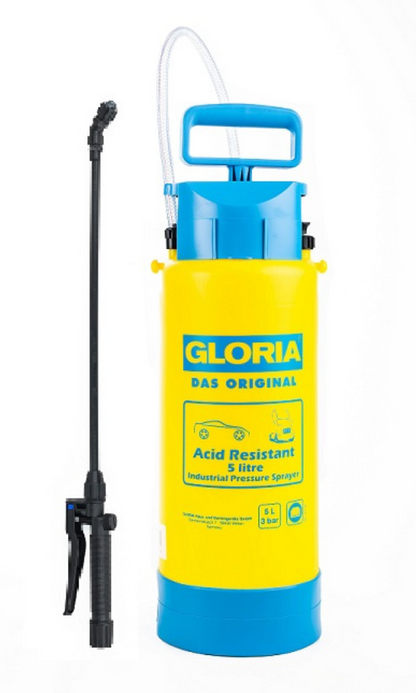

The photo shows the NORA PRO modification on an earlier Gloria model. The sprayer we supply is built on the current Gloria PRO 500 JET.
What it is for
Aluminium brightener, descaling chemicals, brick, tile and concrete acid washing, and shower and bathroom cleaners. The parts that would be attacked by acid are swapped for acid resistant ones.
It suits most diluted acids, such as hydrofluoric, nitric, citric and propionic acid up to 10%, acetic acid up to 20%, hydrochloric acid up to 25%, and phosphoric and sulfuric acid up to 30%. It is not for oils, petroleum solvents or alkaline products. Tell us the chemical and its strength from the SDS if you are unsure, and we will confirm before you fill. For alkaline cleaners use the Gloria CLEAN 500. You can also look your chemical up in the Chemical Compatibility Guide.
How to use it
Release any pressure, unscrew the pump and fill to no more than the 5.0 L mark, leaving air space to hold the charge. Refit the pump and pump until you reach 3 bar. The safety relief valve vents any excess pressure.
After the job, release the pressure, decant leftover acid back into its container, rinse the tank with clean water and spray some through so the valve, lance and nozzle come clean. Store it depressurised, out of heat and direct sun. Wear the gloves and eye protection the SDS calls for.
Keep it running
Genuine Gloria spares for the PRO 500 range include the pump with FKM seals (P2 729326.1111), the FKM safety relief valve (P2 729309.1111) and the coupling nut with bend protection (P2 729385.1111). Send us the model or a photo of the label and we will confirm the right part.
Cleaning contractors, concreters and resellers can request a quote or apply for a trade account. Modified locally by NORA PRO on genuine Gloria. See all acid resistant sprayers, or the PRO 500 JET bleach resistant.
Technical details
- Brand
- GLORIA
- Item number
- 02 003652.AR5
- Built On
- Gloria PRO 500 JET (003652)
- Seal Type
- VITON (FKM)
- Total Capacity
- 7.0 L
- Liquid Capacity
- 5.0 L
- Max Pressure
- 3 bar / 44 PSI
- Safety Relief Valve
- YES
- Trigger Valve
- Acid resistant, fitted by NORA PRO

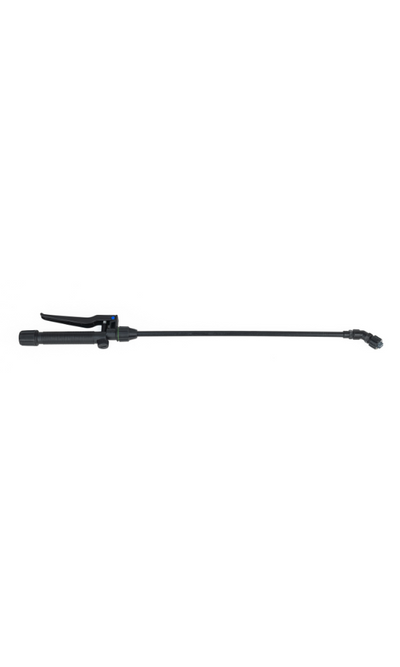

- Lance
- Plastic, with extension
- Nozzle
- PVDF
- Hose
- 180 cm
Common questions
Why not use a standard PRO 500 for acid?
The standard PRO 500 has a brass lance and nozzle, which acids attack. This version has an acid resistant trigger valve, a plastic lance and a PVDF nozzle.
What is the difference between the acid and bleach versions?
They are the same sprayer. The bleach version carries bleach resistant labels so each sprayer stays on one chemical.
Can I use it for caustic cleaners?
Use the Gloria CLEAN 500 with EPDM seals for alkaline cleaners and degreasers.
