LAFFERTY - USA

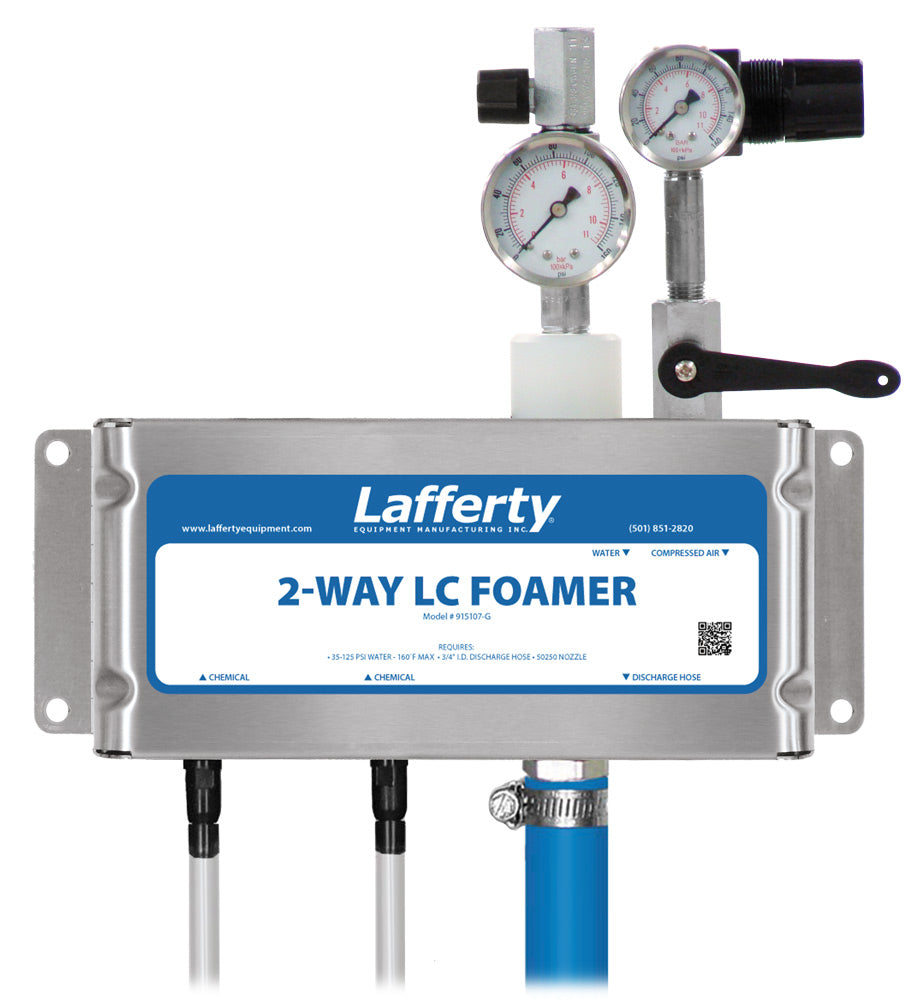

2-Way LC Foamer with Gauges, Wall Mount
Item no. 07 915107-G
The Lafferty 2-Way LC Foamer is a wall mounted, medium volume foamer that draws from two chemical containers. Mains water pressure drives the venturi, which pulls each chemical in at the ratio set by its metering tip, then compressed air is added to make a rich, clinging foam that throws up to 3.7 m.
Key specifications
- Discharge Hose 1.9 cm (3/4 inch) ID x 12.2 m with stainless steel ball valve
- Wand and Nozzle Foam wand, fan nozzle 50250
- Gauges Water and air pressure
- Chemicals 2, separate ball valves
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Product information
Each chemical has its own ball valve, so one hose can lay down a degreaser and then a sanitiser, or the same product at two strengths, without changing containers. Run them one at a time or together. Water and air gauges on the unit take the guesswork out of set up and help with fault finding.

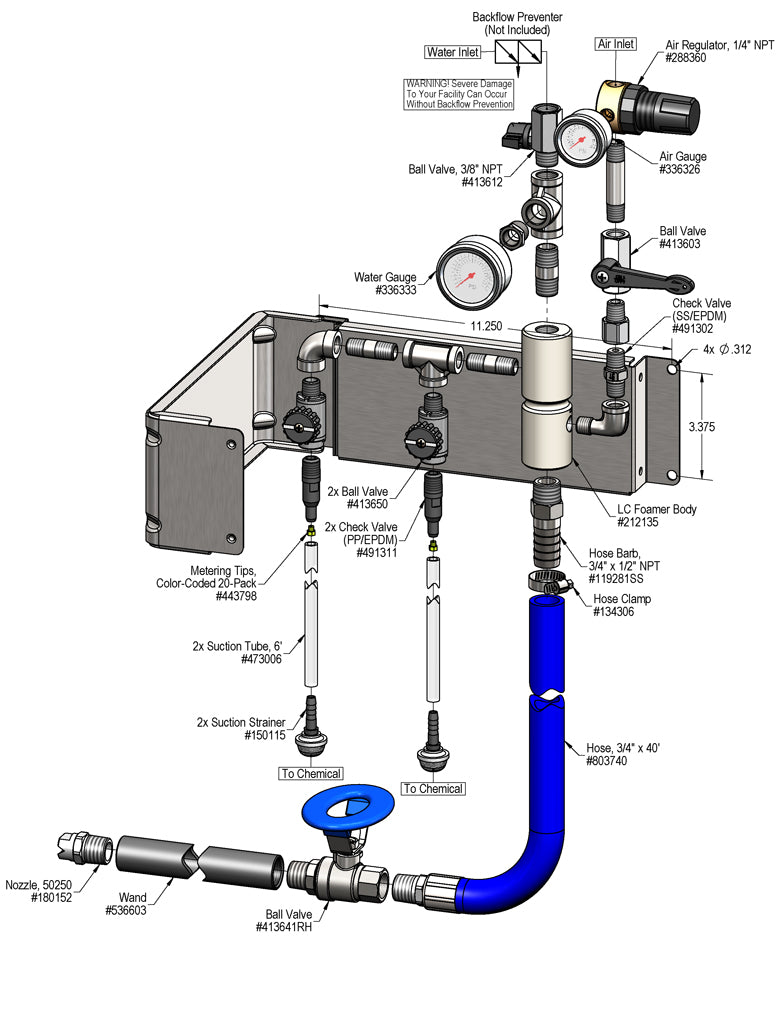

Supplied with a stainless steel bracket, foamer body, gauges, air regulator, 20 colour coded metering tips, two suction tubes with strainers, a 12.2 m discharge hose with a stainless steel ball valve, a foam wand and a fan nozzle. Check valves are EPDM as standard, with VITON available. Lafferty rates it to cover about 46 square metres in 2 minutes.
Applications: Wash bays, fleet depots, food processing rooms and any site that foams two different products
Technical details
- Brand
- LAFFERTY
- Item number
- 07 915107-G
- Lafferty Part No.
- 915107-G
- Mounting
- Wall, stainless steel bracket
- Power
- Mains water pressure plus compressed air
- Chemicals
- 2, separate ball valves
- Water Pressure
- 2.4 to 8.6 bar (35 to 125 psi)
- Water Flow
- About 5.1 L/min at 2.8 bar
- Water Temperature
- Up to 71°C
- Supply Line
- 1.27 cm (1/2 inch)
- Compressed Air
- Up to 85 L/min (3 CFM)
- Strongest Ratio
- About 6 to 1 with no metering tip
- Gauges
- Water and air pressure
- Discharge Hose
- 1.9 cm (3/4 inch) ID x 12.2 m with stainless steel ball valve
- Wand and Nozzle
- Foam wand, fan nozzle 50250
- Foam Throw
- Up to 3.7 m
- Check Valves
- EPDM standard, VITON available
- Shipping Weight
- 10.9 kg
- Fittings
- US NPT threads, check against your site fittings
- Backflow Preventer
- Not included, fit one to suit local plumbing rules
