LAFFERTY - USA

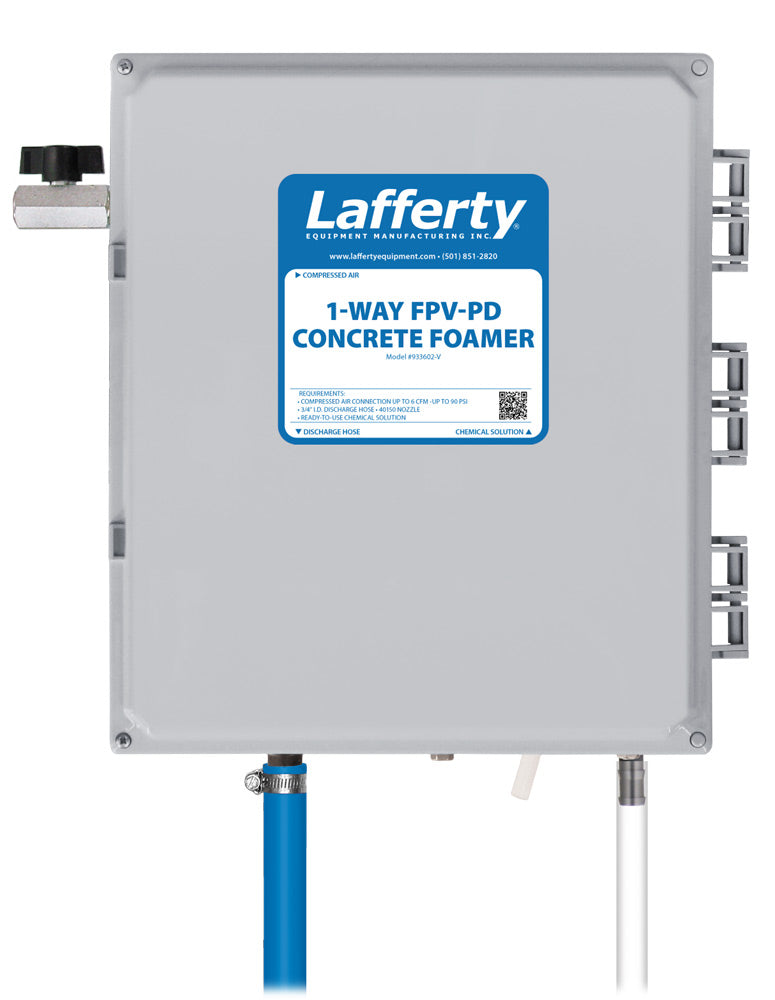

1-Way FPV-PD Concrete Foamer, Wall Mount
Item no. 07 933602-V
The Lafferty 1-Way FPV-PD Concrete Foamer is a wall mounted acid foamer for strong, corrosive products such as concrete removers and aluminium brighteners. It runs on compressed air alone, with no water connection or power point needed. A Flojet 0.64 cm (1/4 inch) air operated double diaphragm pump with VITON diaphragms draws ready to use acid solution from a tank or drum, and compressed air is then injected to turn it into a rich, clinging foam.
For acids.
Key specifications
- Discharge Hose 1.9 cm (3/4 inch) ID x 15.2 m with PVC ball valve
- Wand and Nozzle Polypropylene extended wand, fan nozzle 40150
- Chemical Type Acid, ready to use solution
Not sure it suits your chemical? Check it in our Chemical Compatibility Guide.
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Key benefits
- Runs on compressed air alone
- Flojet pump with VITON diaphragms
- Clinging foam for longer acid contact
- Adjustable wet to dry foam
- 15.2 m hose, wand and fan nozzle included
Product information
Foam stays on the surface longer, so the acid gets more contact time, and you can see where you have been, which cuts over application and run off. A needle valve sets the foam from wet to dry, and Lafferty notes a medium wet foam cleans best. All wetted parts are corrosion resistant. Check your chemical is compatible with VITON, and fit an air filter or dryer on the air supply as Lafferty recommends.

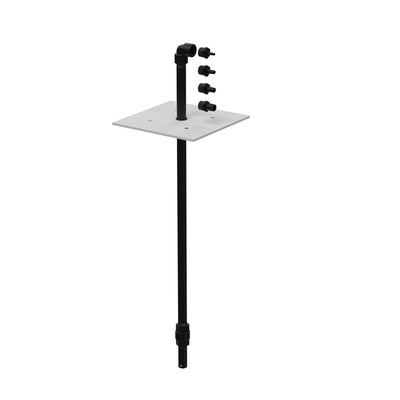

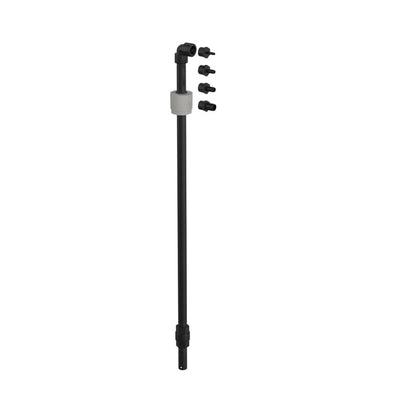

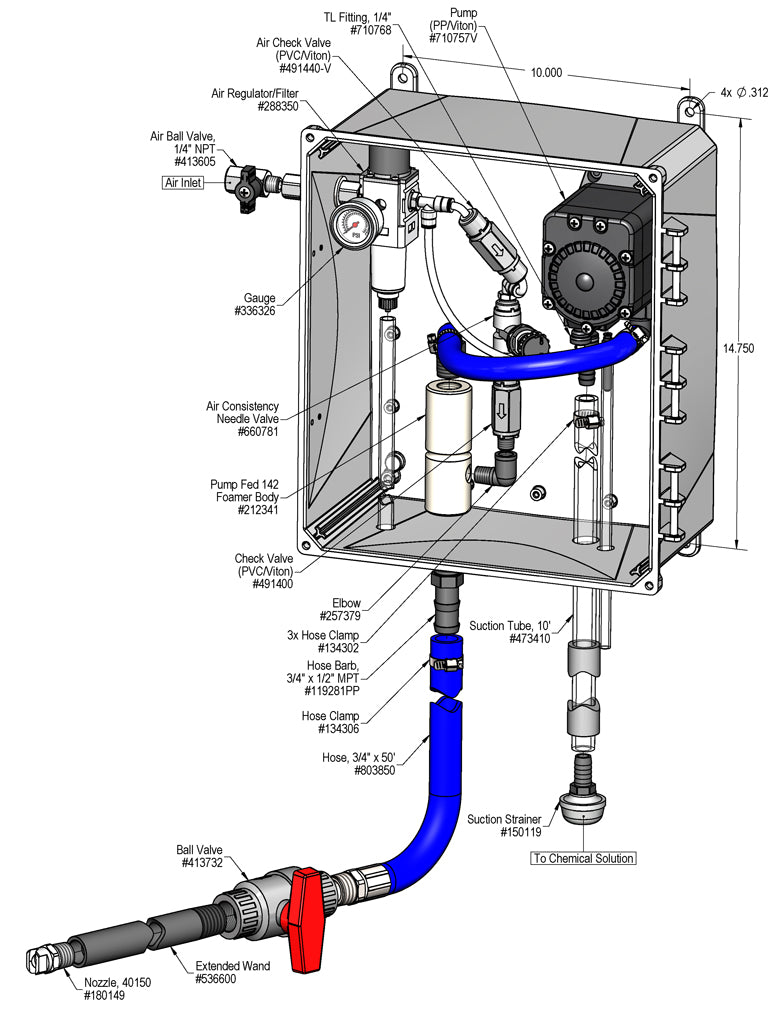

Supplied in a chemical resistant plastic enclosure with an air inlet ball valve, air regulator and filter with gauge, the Flojet pump, a machined polypropylene pump fed foamer body, a 3 m suction tube with strainer, a 15.2 m discharge hose with PVC ball valve, a polypropylene extended wand and a fan nozzle. The solution must be diluted before use. For two chemicals see the 2-Way FPV-PD Concrete Foamer, for spray instead of foam the 1-Way APV-PD Concrete Sprayer, and for a heavier duty pump the 1-Way YPT-PD Concrete Foamer. A large stainless steel hose rack and drum and tote pick up sticks are available.
Applications: Concrete and cement removal, aluminium brightening, metal processing and industrial acid cleaning
Technical details
- Brand
- LAFFERTY
- Item number
- 07 933602-V
- Lafferty Part No.
- 933602-V
- Mounting
- Wall, chemical resistant plastic enclosure
- Power
- Compressed air, no water or power connection
- Pump
- Flojet 0.64 cm (1/4 inch) air operated double diaphragm, VITON diaphragms
- Chemical Type
- Acid, ready to use solution
- Solution Flow
- About 4.5 L/min at 4.1 bar (60 psi)
- Compressed Air
- Up to 170 L/min (6 CFM), regulator preset to 4.1 bar (60 psi)
- Air Inlet
- 0.64 cm (1/4 inch) NPT ball valve
- Suction Tube
- 3 m with strainer
- Discharge Hose
- 1.9 cm (3/4 inch) ID x 15.2 m with PVC ball valve
- Wand and Nozzle
- Polypropylene extended wand, fan nozzle 40150
- Enclosure Size
- About 25.4 x 37.5 cm
- Shipping Weight
- 15.0 kg
- Shipping Size
- 66.0 x 63.5 x 27.9 cm
- Fittings
- US NPT threads, check against your site fittings
