LAFFERTY - USA
LV Foamer with Gauges, Wall Mount
Item no. 07 913105-G

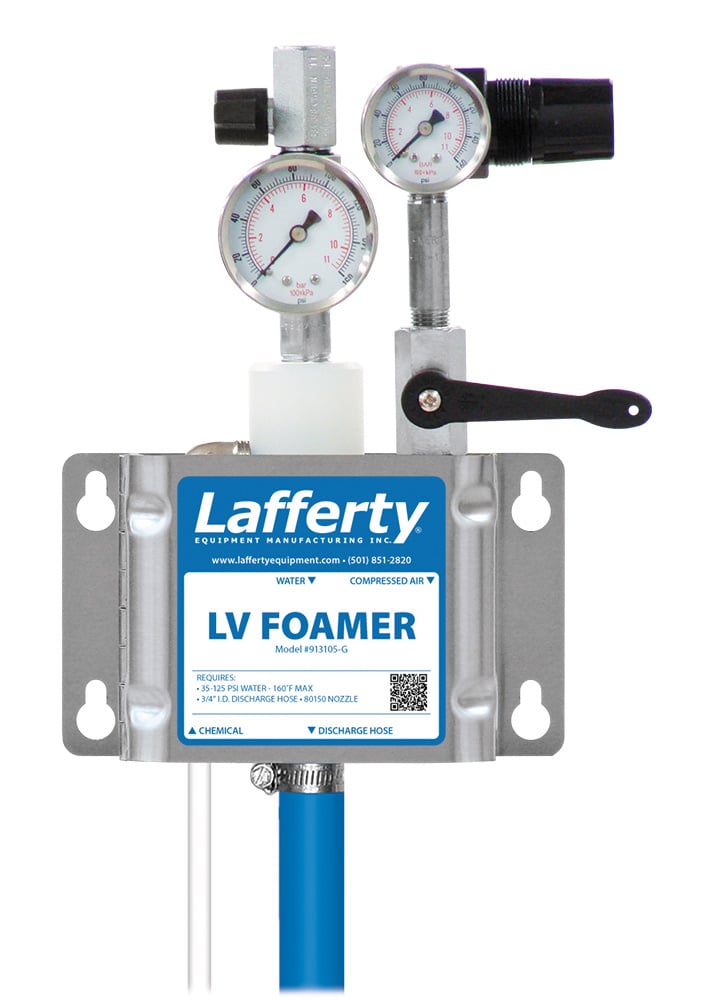

The Lafferty LV Foamer is a low volume, wall mounted foamer for small rooms, tight spaces and cleaning around sensitive equipment. It runs on mains water pressure plus compressed air, uses about half the water of the LC Foamer and keeps overspray to a minimum.
Key specifications
- Discharge Hose 1.9 cm (3/4 inch) ID x 12.2 m with stainless steel ball valve
- Wand and Nozzle Foam wand, fan nozzle 80150
- Gauges Water and air pressure
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Product information
The venturi draws chemical in at the ratio set by the metering tip, as strong as about 5 to 1 with no tip. Compressed air then turns the solution into a rich, clinging foam, and the fan nozzle places it accurately up to 2.7 m away. Water and air gauges on the unit take the guesswork out of set up.

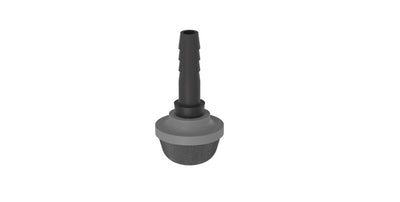

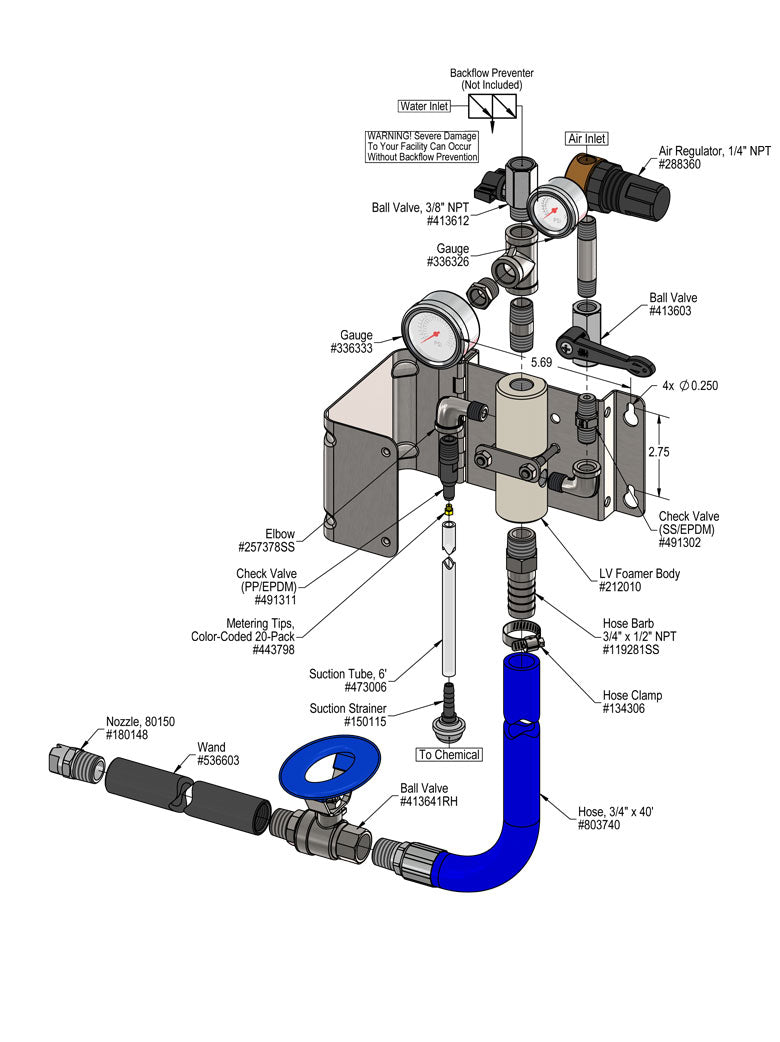

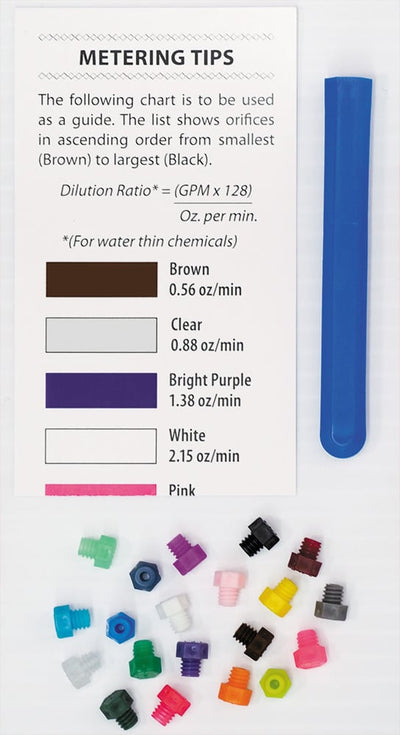

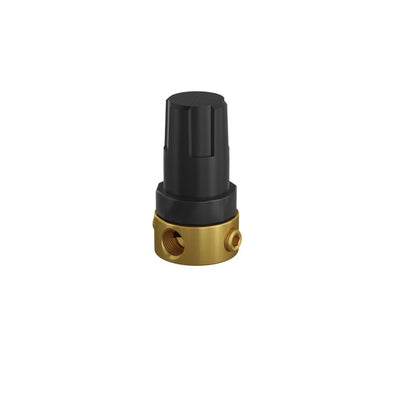

Supplied with a stainless steel bracket, foamer body, gauges, air regulator, 20 colour coded metering tips, suction tube and strainer, a 12.2 m discharge hose with a stainless steel ball valve, a foam wand and a fan nozzle. Check valves are EPDM as standard, with VITON available. For more coverage see the LC Foamer.
Applications: Small kitchens, bakeries, labs, packaging lines and cleaning around sensitive equipment
Technical details
- Brand
- LAFFERTY
- Item number
- 07 913105-G
- Lafferty Part No.
- 913105-G
- Mounting
- Wall, stainless steel bracket
- Power
- Mains water pressure plus compressed air
- Water Pressure
- 2.4 to 8.6 bar (35 to 125 psi)
- Water Flow
- About 2.5 L/min at 2.8 bar
- Water Temperature
- Up to 71°C
- Supply Line
- 1.27 cm (1/2 inch)
- Compressed Air
- Up to 35 L/min (1.25 CFM)
- Strongest Ratio
- About 5 to 1 with no metering tip
- Gauges
- Water and air pressure
- Discharge Hose
- 1.9 cm (3/4 inch) ID x 12.2 m with stainless steel ball valve
- Wand and Nozzle
- Foam wand, fan nozzle 80150
- Foam Throw
- Up to 2.7 m
- Check Valves
- EPDM standard, VITON available
- Shipping Weight
- 9.1 kg
- Fittings
- US NPT threads, check against your site fittings
- Backflow Preventer
- Not included, fit one to suit local plumbing rules
