FLOJET - USA
Air-Driven Wall Mount Box Type Acid & Solvent Resistant Sprayer
Item no. 16 G5 73205 AR-BOX

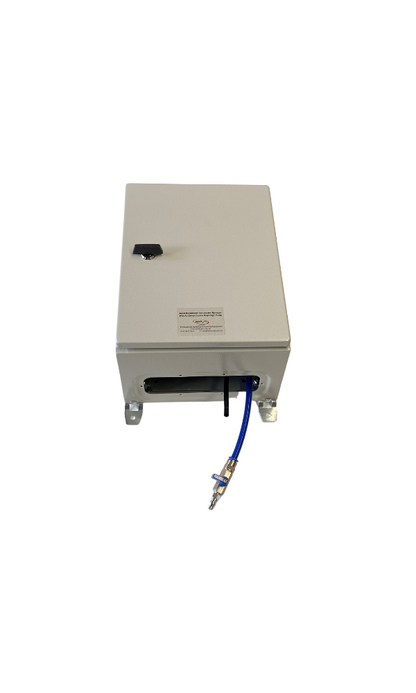

The Flojet air driven wall mount sprayer (enclosed box model) runs off compressed air and pulls ready to use solution straight from the container through a 15 m braided hose, with a steady output and spray pattern for continuous work on site. The pump, regulator and fittings sit inside the wall mounted box, built around a Flojet G57 double diaphragm pump made for acids and other aggressive liquids.
For acids and petroleum based solvents.
Not sure it suits your chemical? Check it in our Chemical Compatibility Guide.
Key benefits

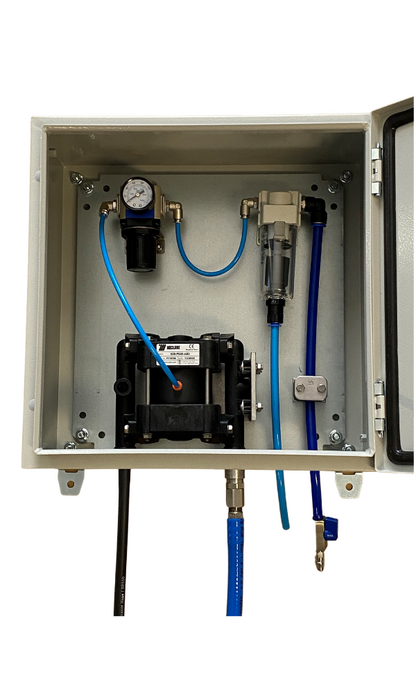

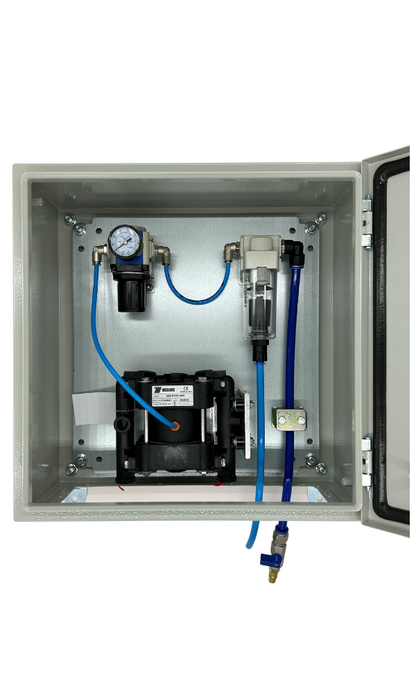

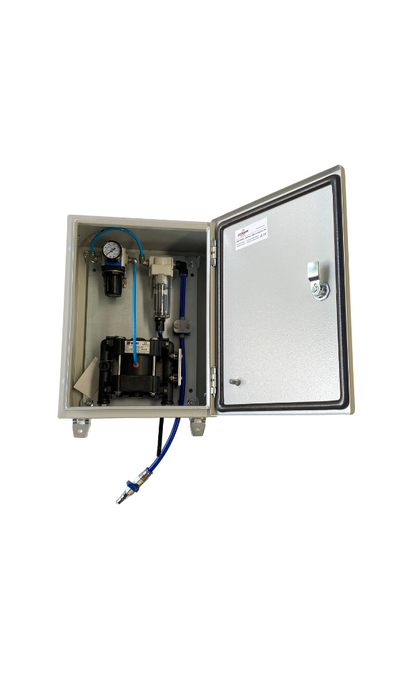

- Pump, regulator and fittings enclosed in a wall box
- Flojet G57 pump with VITON elastomers and Hastelloy springs
- Air regulator preset at 4 bar for acid work
- 15 m braided discharge hose
- Self priming, lifts up to 4.5 m
Applications: truck wash, concrete and cement removing agents, precast mould release and food hygiene. Use with ready to use premixed solutions.
What is in the pack
- 1 complete wall mount air driven sprayer unit (enclosed box model)

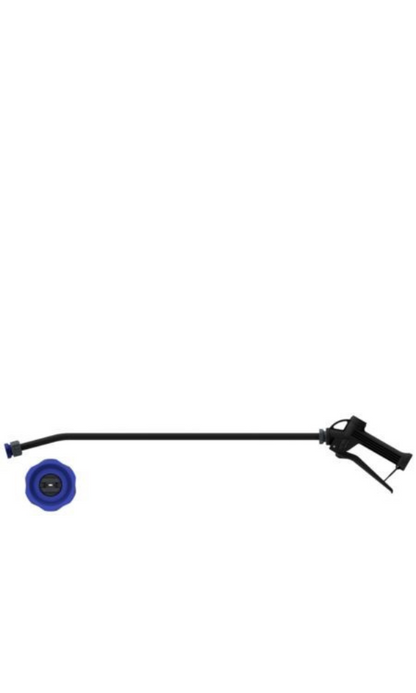

- 1 complete acid resistant spray gun with lance, nozzle holder and nozzle
- 15 m super flex braided discharge hose with fittings on both ends
- 2.5 m industrial grade suction hose with pump end fitting
- 1 hose rack with 2 x 6 mm Dyna Bolts
- Laminated safety notice, how to fix the unit instructions and the unit brochure
Fitting and setup
Fix the box to the wall with the supplied Dyna Bolts, using drilling marks 35 cm wide by 45 cm high. The air regulator is preset at 4 bar (60 psi), the level we recommend for acid application, and you can adjust it up or down. When you first start, or after the unit has stood unused, it can take a couple of minutes for liquid to reach the nozzle.
Pump

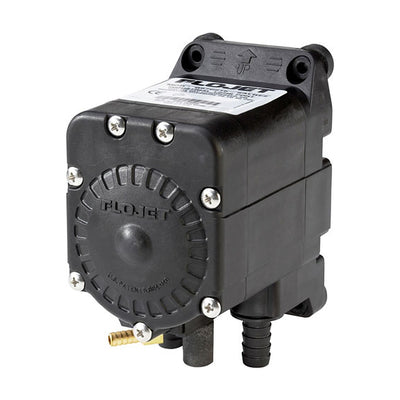

Flojet G57 (G573205) double diaphragm pump with a polypropylene body, Viton elastomers and Hastelloy springs. Self priming, with suction lift up to 4.5 m depending on the viscosity of the liquid, and it passes solids up to about 3 mm. Needs a compressed air supply. Confirm your chemical against the pump materials before ordering.
Product code 16 G5-73205 AR-Box. Pricing is on quote.
