LAFFERTY - USA
1-Way Acid LC Foamer
Item no. 07 972306

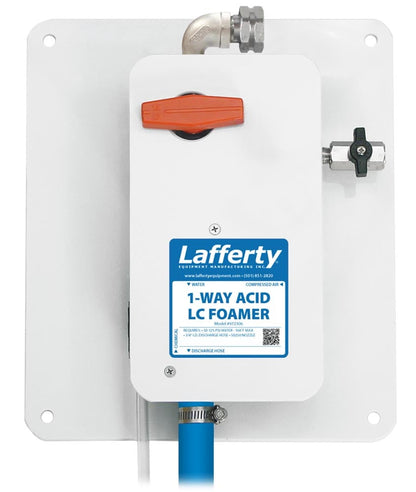

The Lafferty 1-Way Acid LC Foamer is a wall mounted, acid resistant foamer that applies strong acid cleaners as a thick, clinging foam, at concentrations up to 3.5 to 1. One way means foam only, with no rinse position on the unit.
For acids.
Key specifications
- Nozzle Fan pattern, throw up to 3.7 m
- Discharge Hose 12 m (972306 only)
- Wand Polypropylene
- Water Supply Mains water pressure, 40 to 125 PSI / 2.8 to 8.6 bar
- Dilution Ratio Up to 3.5 to 1, set at the metering tip
- Foam Consistency Adjustable, wet to dry
Not sure it suits your chemical? Check it in our Chemical Compatibility Guide.
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Key benefits
- Built for strong acids, up to 3.5 to 1
- Air assisted foam, wet to dry
- Concealed air regulator discourages tampering
- Fan nozzle throws up to 3.7 m
- 20 colour coded metering tips
- 12 m discharge hose
What it is for
Concrete and cement removal, aluminium brightening, acid descaling and acid washdown in wash bays, plant rooms and processing areas. The fan nozzle throws up to 3.7 m, so a wall or a trailer side gets coated from where you stand.
Concentration and temperature both change what the wetted parts will tolerate, so confirm your product against the SDS and we will match the metering tip and injector to the job.
How it works
It runs on mains water pressure from 2.8 to 8.6 bar (40 to 125 PSI), drawing chemical through a machined polypropylene venturi injector at the ratio set by the colour coded metering tips, then blending in compressed air to build the foam. An air regulator, concealed to discourage tampering, takes the foam from wet to dry so it holds on a vertical surface long enough to work.
What is in the box

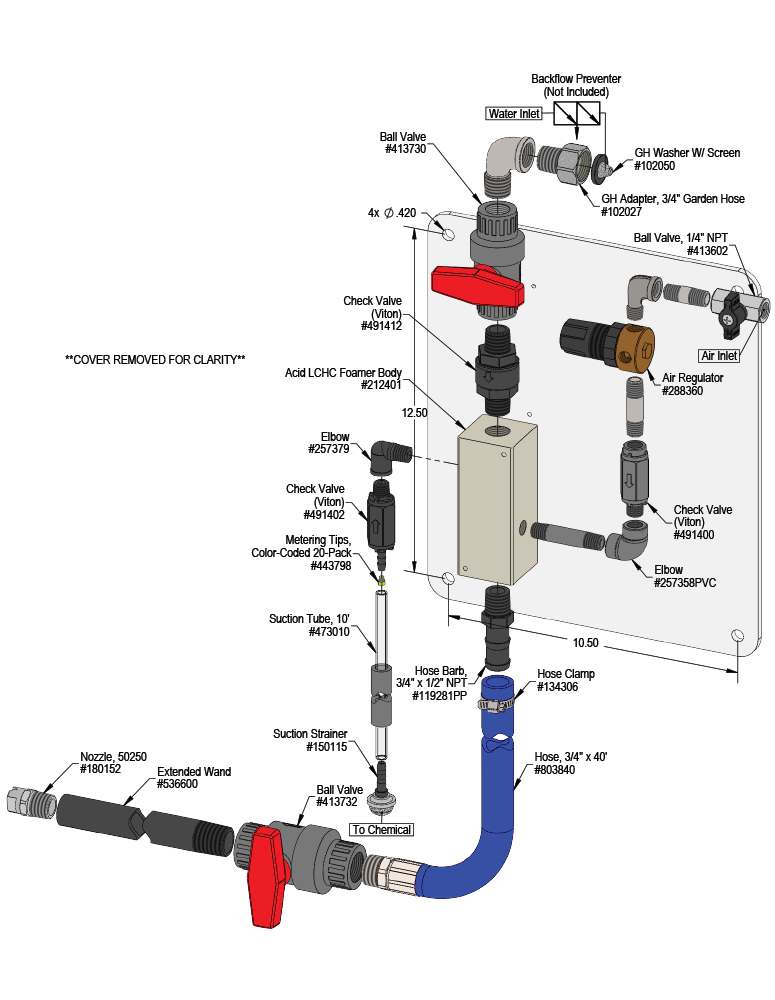

Polypropylene mounting bracket and cover, PVC inlet and discharge ball valves, the machined polypropylene injector body, 20 colour coded metering tips, a 12 m discharge hose, a polypropylene wand and a fan nozzle. If you need two acids from the one wall station, see the Lafferty 2-Way Acid LC Foamer.
Choose the version with the 12 m discharge hose (972306) or the no hose version (972306-NH) if you already have a hose or hose reel; ask us what the no hose version includes.
Concreters, wash bays and resellers can request a quote or apply for a trade account. Genuine Lafferty, supplied by NORA PRO. See the foamers and foam injection range for how the foam types compare.
Technical details
- Brand
- LAFFERTY
- Item number
- 07 972306
- Function
- 1-way, foam only (no rinse position)
- Mounting
- Wall mount
- Water Supply
- Mains water pressure, 40 to 125 PSI / 2.8 to 8.6 bar
- Air Supply
- Compressed air, set at a concealed adjustable regulator
- Foam Consistency
- Adjustable, wet to dry
- Dilution Ratio
- Up to 3.5 to 1, set at the metering tip
- Metering Tips
- 20 colour-coded precision tips supplied
- Injector Body
- Machined polypropylene
- Ball Valves
- PVC inlet and discharge
- Discharge Hose
- 12 m (972306 only)
- Wand
- Polypropylene
- Nozzle
- Fan pattern, throw up to 3.7 m
- SKU
- 07 972306 (with hose), 07 972306-NH (no hose)
Common questions
Can it rinse?
No. The 1-Way is foam only. Rinse with your normal hose or washer.
How strong can it run?
Up to 3.5 parts water to 1 part acid. Weaker ratios are set with the metering tips.
