LAFFERTY - USA
2-Way HV Foamer with Gauges, Wall Mount
Item no. 07 916107-G

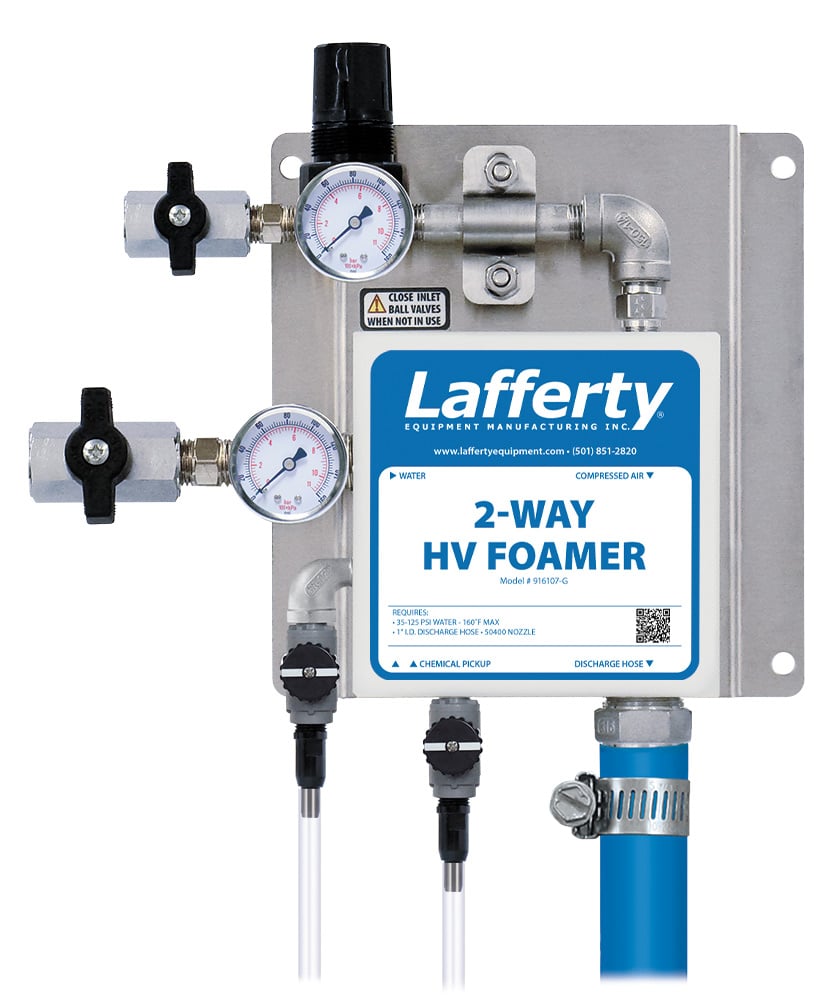

The Lafferty 2-Way HV Foamer is a high volume, wall mounted foamer for large floors, trucks, trailers and process equipment. It runs on mains water pressure plus compressed air and draws from two chemical containers, each set by its own metering tip.
Key specifications
- Discharge Hose 2.5 cm (1 inch) ID x 15.2 m with stainless steel ball valve
- Wand and Nozzles HV foam wand, fan nozzle 50400 and zero degree nozzle 00400
- Gauges Water and air pressure
- Chemicals 2, separate ball valves
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Product information
Open one chemical valve or both, so one hose can apply two products, or one product at two strengths, with no swapping of containers. The fan nozzle throws foam up to 4.6 m, and the zero degree nozzle reaches about 7.6 m for high walls and ceilings. Water and air gauges on the unit make set up quick and help when fault finding. Lafferty rates it to cover about 46 square metres in 1 minute.

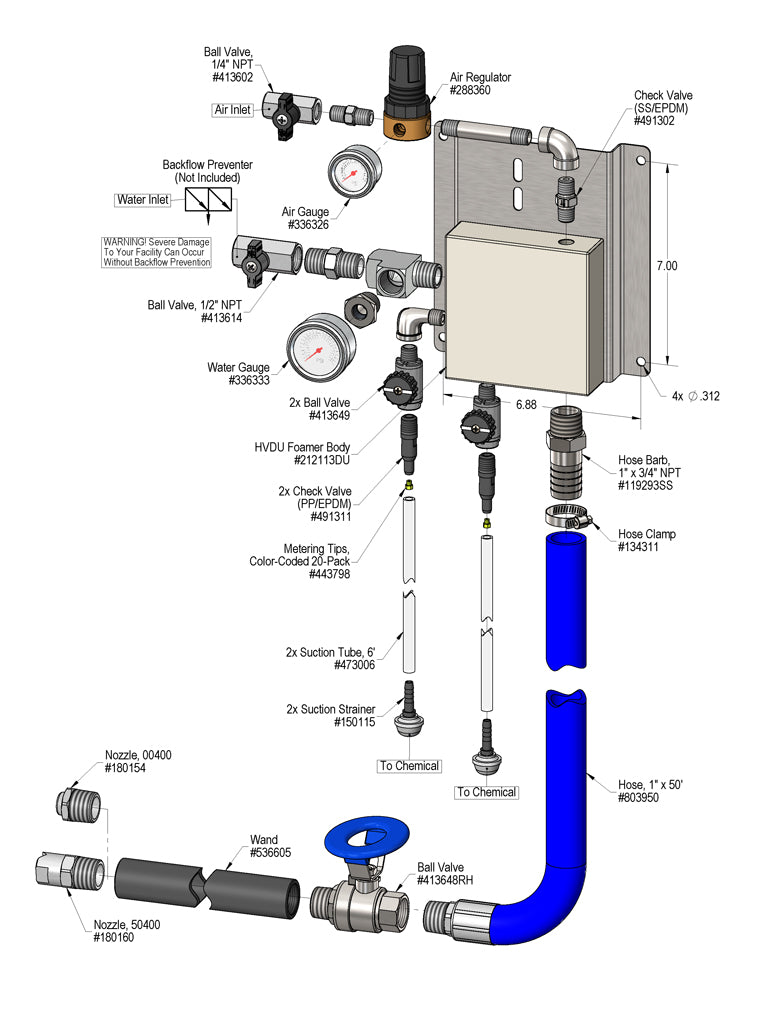

Supplied with a stainless steel bracket, foamer body, gauges, air regulator, 20 colour coded metering tips, two suction tubes with strainers, a 15.2 m discharge hose of 2.5 cm (1 inch) bore with a stainless steel ball valve, the HV foam wand and both nozzles. Check valves are EPDM as standard, with VITON available. For one chemical, see the HV Foamer.
Applications: Truck and trailer washes, meat and food plants, mine workshops and large washdown areas
Technical details
- Brand
- LAFFERTY
- Item number
- 07 916107-G
- Lafferty Part No.
- 916107-G
- Mounting
- Wall, stainless steel bracket
- Power
- Mains water pressure plus compressed air
- Chemicals
- 2, separate ball valves
- Water Pressure
- 2.4 to 8.6 bar (35 to 125 psi)
- Water Flow
- About 15.1 L/min at 2.8 bar
- Water Temperature
- Up to 71°C
- Supply Line
- 1.9 cm (3/4 inch)
- Compressed Air
- Up to 142 L/min (5 CFM)
- Strongest Ratio
- About 6 to 1 with no metering tip
- Gauges
- Water and air pressure
- Discharge Hose
- 2.5 cm (1 inch) ID x 15.2 m with stainless steel ball valve
- Wand and Nozzles
- HV foam wand, fan nozzle 50400 and zero degree nozzle 00400
- Foam Throw
- Up to 4.6 m, about 7.6 m with the zero degree nozzle
- Check Valves
- EPDM standard, VITON available
- Shipping Weight
- 15.4 kg
- Fittings
- US NPT threads, check against your site fittings
- Backflow Preventer
- Not included, fit one to suit local plumbing rules
