LAFFERTY - USA

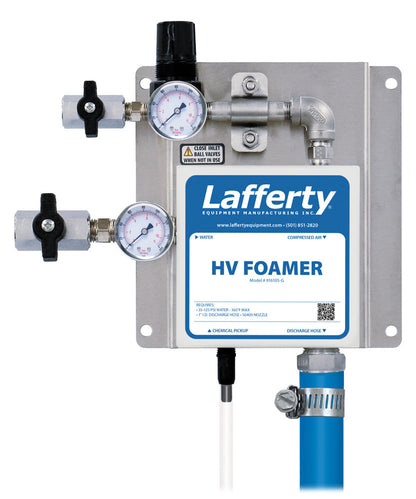

Wall Mount HV (High Volume) Foamer with Gauges
Item no. 07 916105-G
The Lafferty Wall Mount HV Foamer is a fixed foaming station that runs on your incoming water supply and a compressed air line, laying down a high volume of thick, clinging foam over large areas: up to 46.5 m² a minute. This is the gauge version: water and air pressure both read on the unit, so foam consistency is set off the dial rather than by feel, and the same mix can be repeated shift after shift by whoever is on the hose.
Key specifications
- Discharge Hose 15 m, 2.54 cm (1 inch) internal diameter; no hose version 07 916105-NHG
- Foam Wand Polypropylene, fan and zero degree nozzles
- Gauges Water and air pressure, read on the unit
- Water Supply 2.4 to 8.6 bar (35 to 125 PSI), about 15 L/min at 2.8 bar
- Chemical Metering Venturi with 20 colour coded metering tips
- Foam Type Air injected, adjustable wet to dry
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Key benefits
- Covers up to 46.5 m² a minute
- Water and air gauges for the same foam every shift
- Foam adjusts from wet to dry
- Fan nozzle throws foam up to 4.6 m
- 20 colour coded metering tips
- No hose version for existing reels
What it is for
Open plant and equipment cleaning, food processing washdown, sanitising, and truck and fleet wash bays. It earns its place where foaming section by section with a hand held unit takes too long.
Wetted components are built for chemical service. Concentrations and temperatures still vary, so confirm your chemical against its SDS and send the product details through to us, and we will check dilution and materials before you order.
How it works
Water at 2.4 to 8.6 bar (35 to 125 PSI) passes through a venturi that draws and dilutes chemical at the ratio set by a colour coded metering tip, then compressed air (up to 142 L/min) is injected to build the foam. The fan nozzle throws foam up to 4.6 m, the zero degree nozzle reaches further, and the foam adjusts from wet to dry.
What is in the box

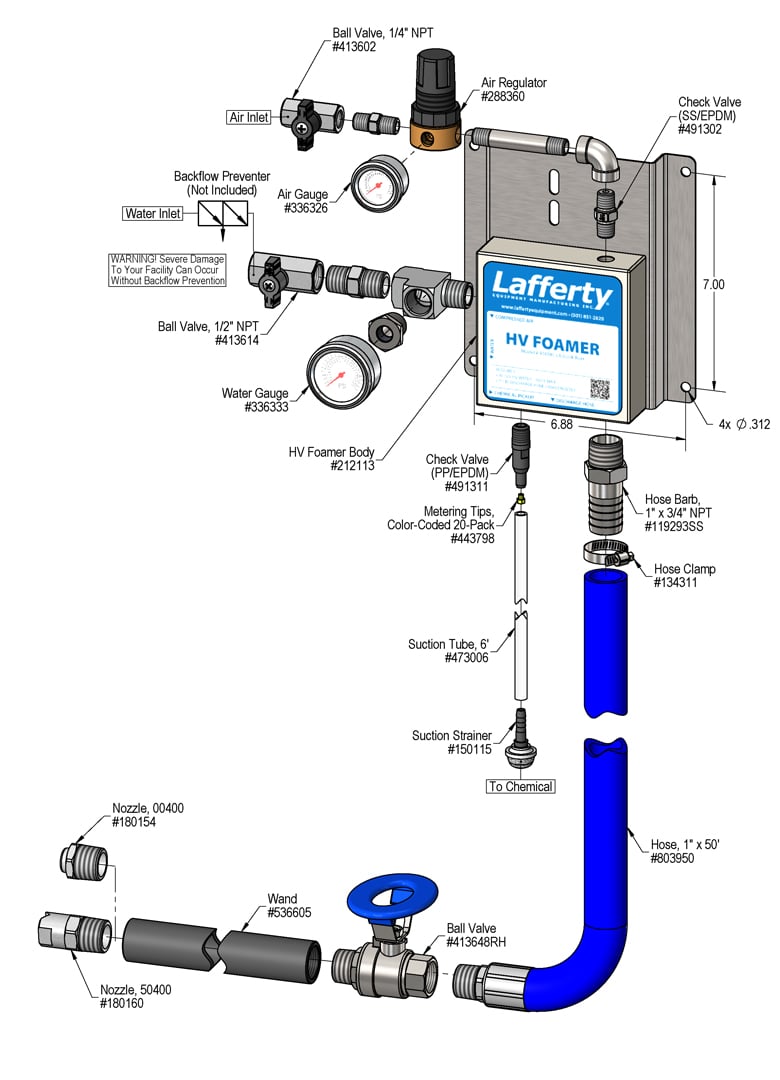

This is part number 07 916105-G, supplied with a stainless steel mounting bracket, the machined polypropylene foamer body, water and air gauges, 20 colour coded metering tips, a 15 m discharge hose with a stainless steel discharge ball valve, and a polypropylene foam wand with fan and zero degree nozzles. A no hose version, 07 916105-NHG, is available if you are plumbing into an existing reel, and replacement ball valves are stocked. NORA PRO supplies the Lafferty HV range from Brisbane.
Food plants, fleet operators and resellers can request a quote or apply for a trade account. Genuine Lafferty, supplied by NORA PRO. For strong dilution ratios see the Lafferty HVHC Foamer.
Technical details
- Brand
- LAFFERTY
- Item number
- 07 916105-G
- Part Number
- 07 916105-G
- Mounting
- Wall mount, fixed installation
- Water Supply
- 2.4 to 8.6 bar (35 to 125 PSI), about 15 L/min at 2.8 bar
- Air Supply
- Compressed air, up to 142 L/min
- Foam Type
- Air injected, adjustable wet to dry
- Chemical Metering
- Venturi with 20 colour coded metering tips
- Gauges
- Water and air pressure, read on the unit
- Construction
- Machined polypropylene body, stainless steel bracket
- Wetted Components
- Chemical-resistant, confirm against your SDS
- Discharge Hose
- 15 m, 2.54 cm (1 inch) internal diameter; no hose version 07 916105-NHG
- Discharge Valve
- Stainless steel ball valve, replacements stocked
- Foam Wand
- Polypropylene, fan and zero degree nozzles
- Coverage
- Up to 46.5 m² a minute
Common questions
Why the gauges?
They show incoming water and air pressure, so set up is quicker, the foam is the same every shift, and faults are easier to find.
How much area does it cover?
Lafferty rates it at up to 46.5 m² a minute.
