LAFFERTY - USA

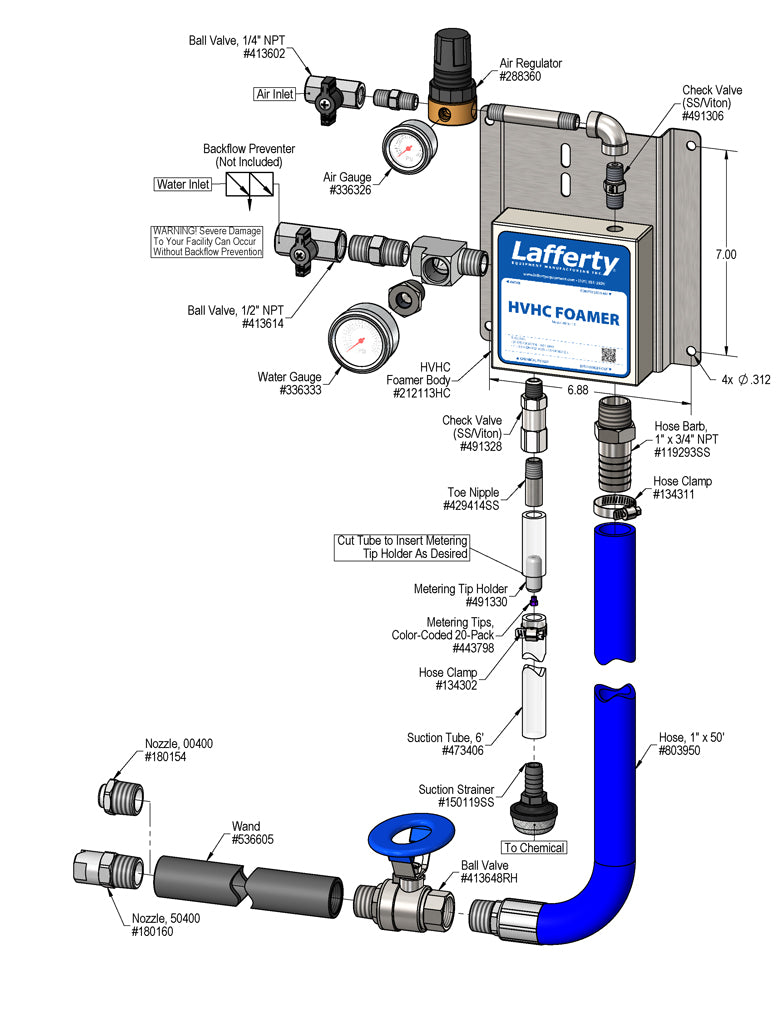

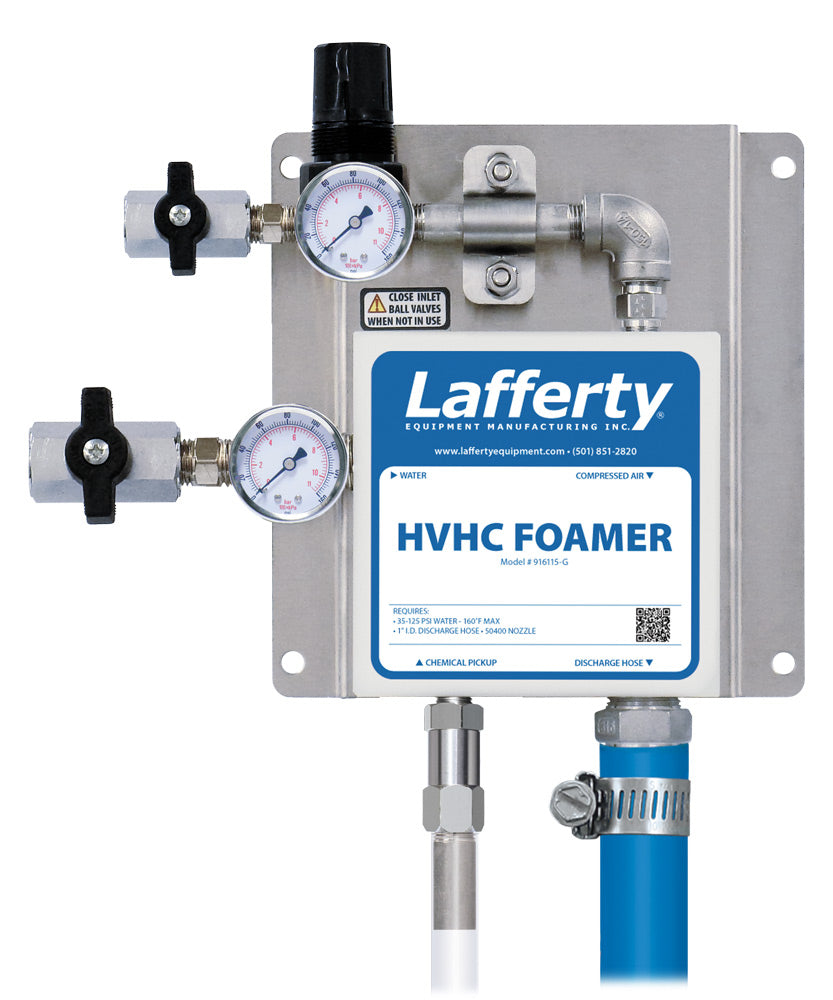

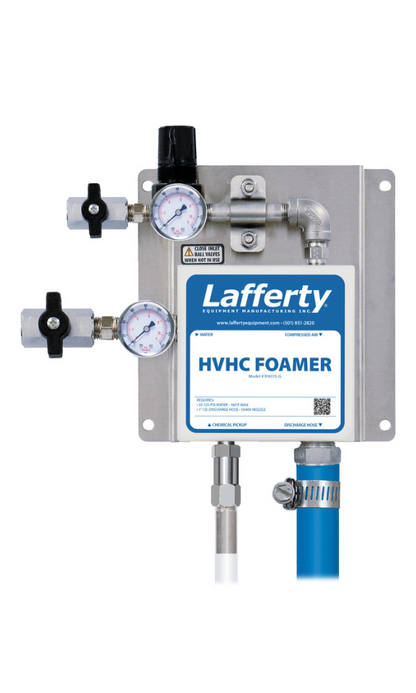

Wall Mount HVHC (High Volume/High Concentrate) Foamer
Item no. 07 916115-G
The Lafferty HVHC Foamer is a wall mounted, high volume foamer built for strong dilution ratios. HVHC stands for high volume, high concentrate. With no metering tip fitted it draws chemical as strong as 2.8 to 1, and the colour coded tips take it leaner when the job allows. It runs on mains water pressure plus compressed air: the venturi blends the chemical into the water, then air is injected to turn it into a large volume of rich, clinging foam.
Key specifications

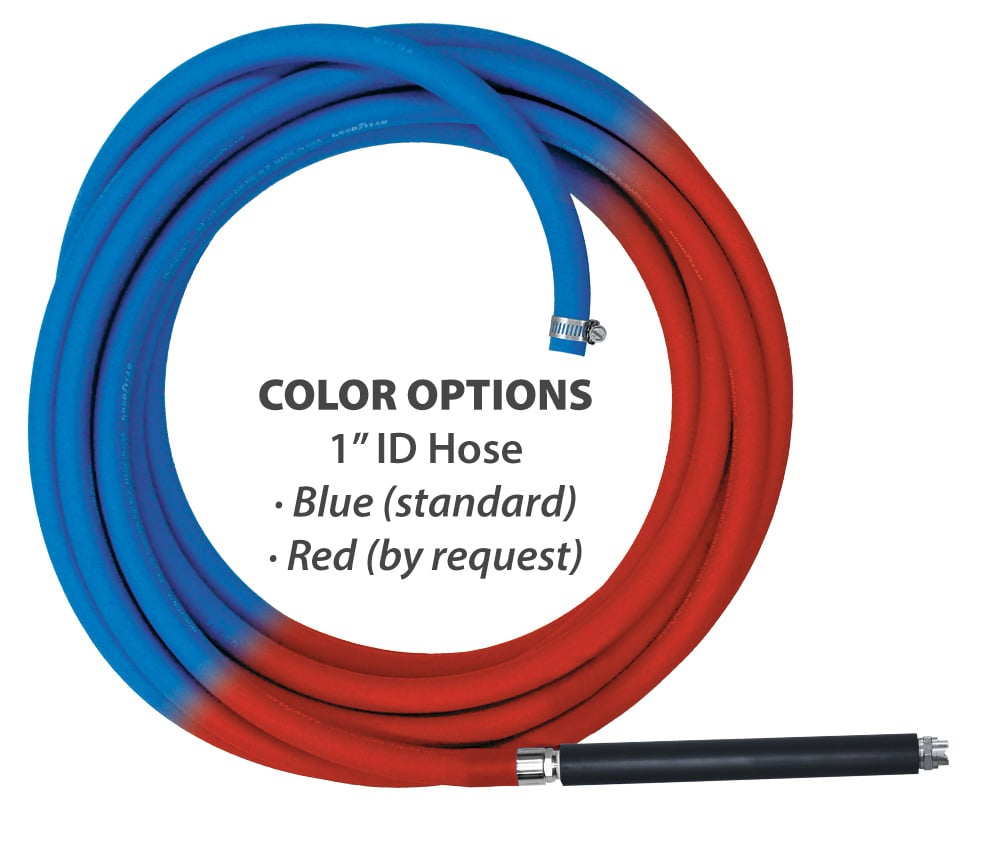

- Discharge Hose 2.5 cm ID x 15.2 m with stainless steel ball valve (916115-G only)
- Wand and Nozzles Polypropylene foam wand, fan and zero degree nozzles
- Gauges Water and air pressure
- Metering Tips 20 colour coded tips supplied
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Key benefits
- Runs chemical as strong as 2.8 to 1
- Air assisted for high volume foam
- Weaker ratios with 20 metering tips
- Foam adjusts from wet to dry
- Fan nozzle throws foam up to 4.6 m
Product information
It suits truck and fleet wash bays, food plants and processing floors where a standard foamer runs too weak for the soil. Water and air gauges sit on the unit, so the foam setting can be repeated shift after shift. The fan nozzle throws foam up to 4.6 m and the zero degree nozzle up to 7.6 m.

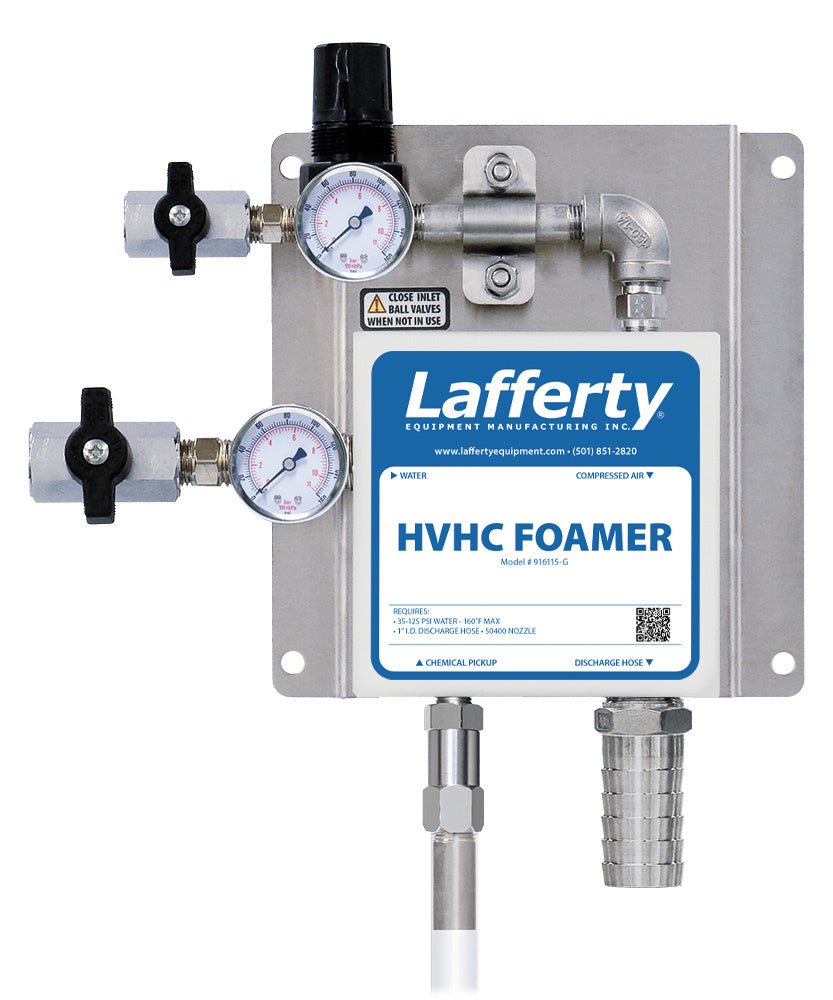

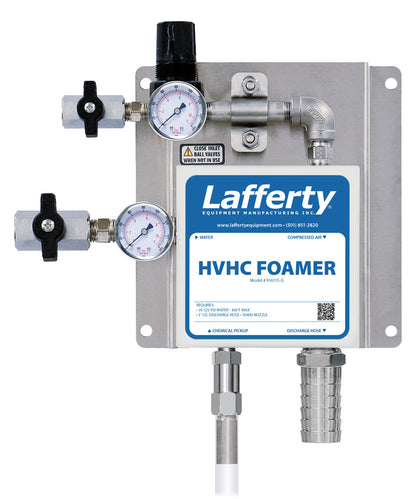

Choose the version with the 15.2 m discharge hose (916115-G) or the no hose version (916115-NHG) if you are plumbing into an existing hose reel. Confirm your chemical against its SDS when you request a quote and we will check the tip and seal setup.
Applications: Truck and fleet washing, food plants, processing floors and other large areas that need strong chemical
Technical details
- Brand
- LAFFERTY
- Item number
- 07 916115-G
- Lafferty Part No.
- 916115-G (with hose), 916115-NHG (no hose)
- Mounting
- Wall, stainless steel bracket
- Power
- Mains water pressure plus compressed air
- Water Pressure
- 2.4 to 8.6 bar (35 to 125 psi)
- Water Flow
- About 13.2 L/min at 3.4 bar
- Water Temperature
- Up to 71°C
- Supply Line
- 1.9 cm (3/4 inch)
- Compressed Air
- Up to 142 L/min (5 CFM)
- Strongest Ratio
- About 2.8 to 1 with no metering tip
- Gauges
- Water and air pressure
- Discharge Hose
- 2.5 cm ID x 15.2 m with stainless steel ball valve (916115-G only)
- Wand and Nozzles
- Polypropylene foam wand, fan and zero degree nozzles
- Foam Throw
- Up to 4.6 m fan, 7.6 m zero degree
- Metering Tips
- 20 colour coded tips supplied
- Shipping Weight
- 15.4 kg
- Fittings
- US NPT threads, check against your site fittings
