LAFFERTY - USA
Drum Mount HV Foamer | High Volume Air-Driven
Item no. 07 916635

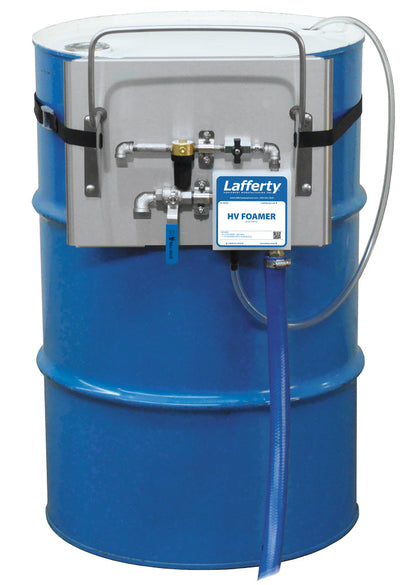

The Lafferty Drum Mount HV Foamer is a high volume, air assisted foamer that straps straight to a 205 L drum or a tote and draws chemical from it, so there is no decanting and no premixing. Connect water at 2.4 to 8.6 bar (35 to 125 PSI) and a compressed air line, and it lays clinging foam over a large area, wet or dry depending on how you set it.
Key specifications
- Discharge Hose 15 m, with stainless steel ball valve
- Wand & Nozzles Foam wand with a fan nozzle (up to 4.6 m) and a zero degree nozzle for reach
- Water Supply 2.4 to 8.6 bar (35 to 125 PSI)
- Dilution Control 20 colour coded precision metering tips
- Foam Consistency Adjustable, wet through to dry
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Key benefits
- Straps to a 205 L drum or tote, no decanting
- Air assisted for a high volume of foam
- Fan nozzle throws foam up to 4.6 m
- Foam adjusts from wet to dry
- 20 colour coded metering tips
- Integrated stainless steel hose rack
What it is for
Drum fed high volume foaming in food plants, washdown bays and truck and fleet wash. On a big washdown that is the whole point of foam: the chemical stays on the surface instead of running off it, and you can see where you have been.
Wetted materials suit a broad range of cleaning and sanitising chemicals. Acids and strong solvents are a separate question, and Lafferty builds a dedicated acid foamer for that duty, so tell us the product you run and we will confirm concentration and temperature against the SDS when you request a quote.
How it works
A venturi injector meters the concentrate through a colour coded tip, then compressed air is injected to build the foam. The fan nozzle throws foam up to 4.6 m for fast coverage, and the zero degree nozzle reaches further. Foam consistency adjusts from wet to dry.
What is in the box

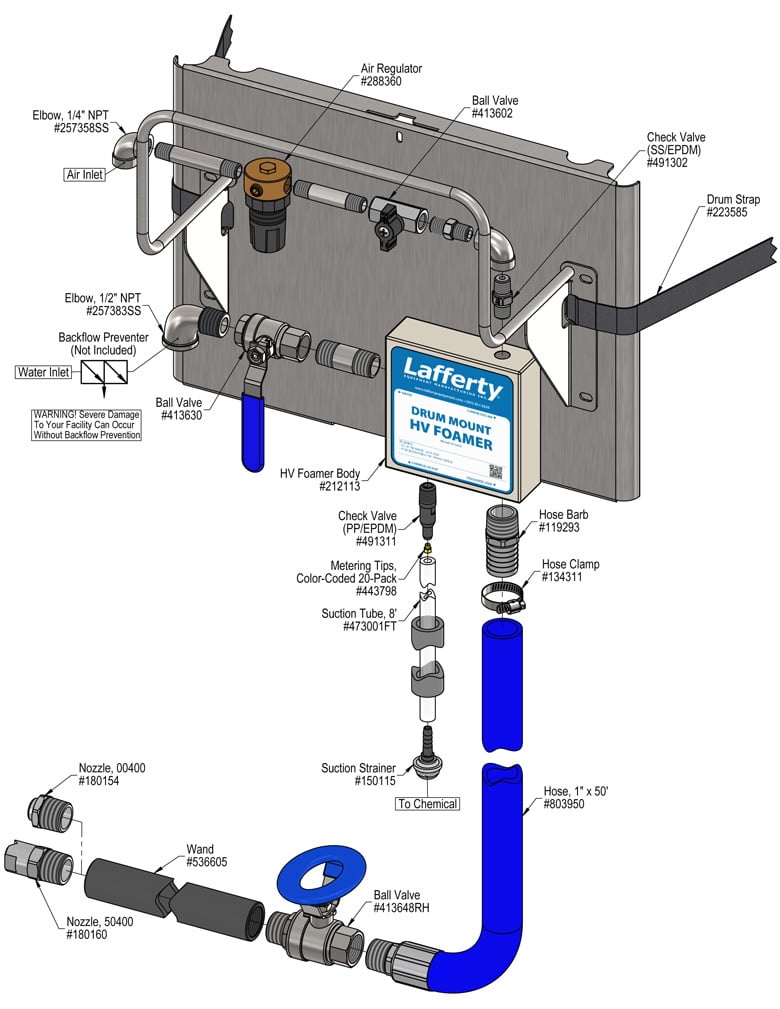

Stainless steel mounting bracket with a polypropylene strap, an integrated stainless steel hose rack, the machined polypropylene foamer body, 20 colour coded metering tips, 15 m discharge hose with a stainless steel ball valve, and a polypropylene foam wand with fan and zero degree nozzles. Tell us your measured site water pressure and compressor output and we will confirm the unit suits.
Food plants, fleet operators and resellers can request a quote or apply for a trade account. Genuine Lafferty, supplied by NORA PRO. The fixed version is the Lafferty Wall Mount HV Foamer.
Technical details
- Brand
- LAFFERTY
- Item number
- 07 916635
- Model
- 916635
- Mounting
- Straps to a standard 205 L drum or a tote, runs straight off the container
- Water Supply
- 2.4 to 8.6 bar (35 to 125 PSI)
- Air Supply
- Compressed air line required. Tell us your compressor output and line size
- Foamer Body
- Machined polypropylene
- Wetted Components
- Suited to general cleaning and sanitising chemicals. Confirm your chemical, concentration and temperature against the SDS
- Dilution Control
- 20 colour coded precision metering tips
- Foam Consistency
- Adjustable, wet through to dry
- Discharge Hose
- 15 m, with stainless steel ball valve
- Wand & Nozzles
- Foam wand with a fan nozzle (up to 4.6 m) and a zero degree nozzle for reach
- Hose Rack
- Integrated, stainless steel
Common questions
Does it need compressed air?
Yes. It runs on water pressure plus a compressed air line. The air is what gives it the high foam volume.
Do I need to decant the chemical?
No. It straps to the drum or tote and draws straight from it.
