GLORIA - Germany

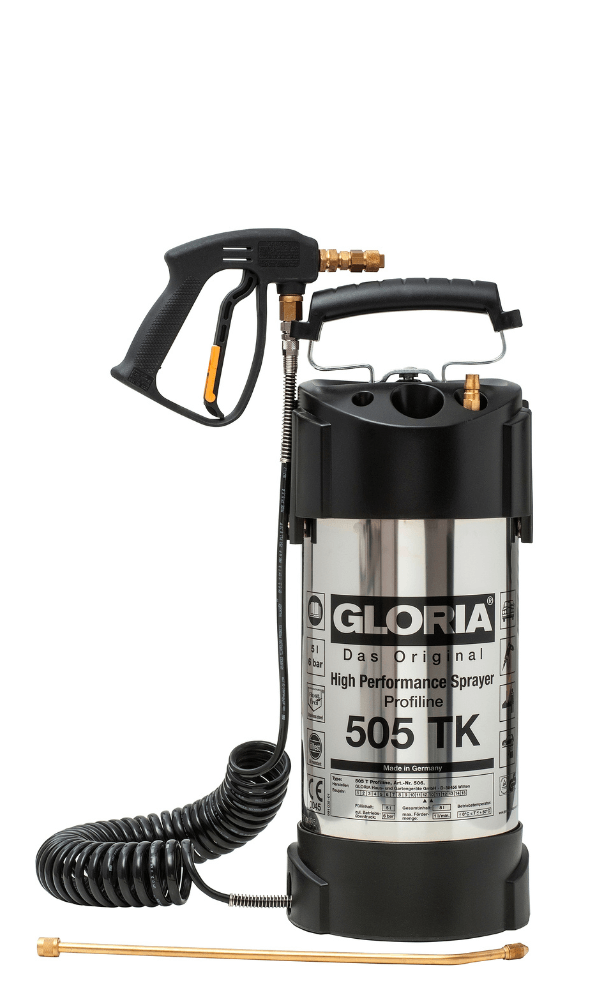

505TK | 5.0L Stainless Steel Sprayer | Carpet & Upholstery Cleaning
Item no. 02 000506.00SG
The Gloria 505TK Carpet and Upholstery is the 5 litre stainless steel pressure sprayer fitted with an RL16 spray gun, a 4001 stainless steel flat fan nozzle and a spiral hose that stretches to 4.0 m. It has VITON (FKM) seals, a pressure gauge and a Nitto type air intake, holds 5.0L in an 8.0L tank and works at up to 6 bar (85 PSI).
VITON (FKM) seals.
Key specifications
- Liquid capacity 5.0L
- Total capacity 8.0L
- Max pressure 6 bar / 85 PSI
- Seals VITON (FKM)
- Bottle or tank Stainless Steel
- Nozzle 4001 SS Flat Fan
Key benefits
- RL16 spray gun, easy to aim at seats and edges
- 4001 stainless flat fan for a light, even band
- Spiral hose stretches to 4.0 m
- Pump by hand or from an air line
- Pressure gauge shows the charge
- VITON (FKM) seals
Application fields
Nitto type air intake fitted. NORA PRO supplies this sprayer with a Nitto type air intake, so it clicks straight onto a workshop air line with a Nitto type coupler and charges in seconds instead of hand pumping.
What it is for
Pre spraying carpet and upholstery. The narrow 4001 flat fan lays down a light, even band, and the spiral hose lets you move around a room or a vehicle interior without dragging a hose.
Cleaning chemicals differ. Send us the SDS and we will confirm before you fill. It is not for acids, alkalis or acetone based products.
How to use it
Release any pressure, open the filler and fill to no more than the 5.0L mark. Close it, then pump by hand or connect an air line to the Nitto type air intake, and watch the gauge: never go past 6 bar. The safety relief valve vents automatically and can be opened by hand.
After the job, release the pressure, rinse the tank with clean water and spray some through the gun so the hose and nozzle come clean. The residual drain lets the last of the liquid out. Store it depressurised.
Keep it running
The RL16 spray gun, brass pump, piston plate kit, relief valve, base ring, filling funnel and Nitto type air connector are stocked as spares. Carpet cleaners, detailers and resellers can request a quote or apply for a trade account. Genuine Gloria, supplied by NORA PRO. See all stainless steel sprayers, or the larger Gloria 510TK Carpet and Upholstery.
Technical details
- Brand
- GLORIA
- Item number
- 02 000506.00SG
- Seal Type
- VITON (FKM)
- Bottle/Tank Material
- Stainless Steel
- Total Capacity
- 8.0L
- Liquid Capacity
- 5.0L
- Max Pressure
- 6 bar / 85 PSI
- Pressure Gauge
- YES
- Safety Release Valve
- Automatic & Manual
- Air Intake
- Nitto type
- Gun
- RL16
- Nozzle
- 4001 SS Flat Fan
- Hose
- Spiral (stretches to 4.0 m)
Common questions
Why a spray gun instead of a lance?
The RL16 gun is short and easy to aim at seats and carpet edges, and the spiral hose keeps the line off the floor.
Can I pressurise it from a compressor?
Yes. It has a Nitto type air intake, so connect a workshop air line with a Nitto type coupler and watch the gauge. Never go past 6 bar.
