GLORIA - Germany
505TK | 5.0L Stainless Steel Sprayer | Anti Damp Injector
Item no. 02 000506.0101

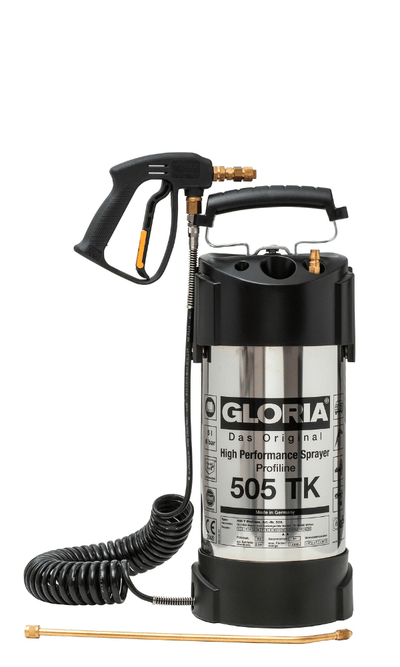

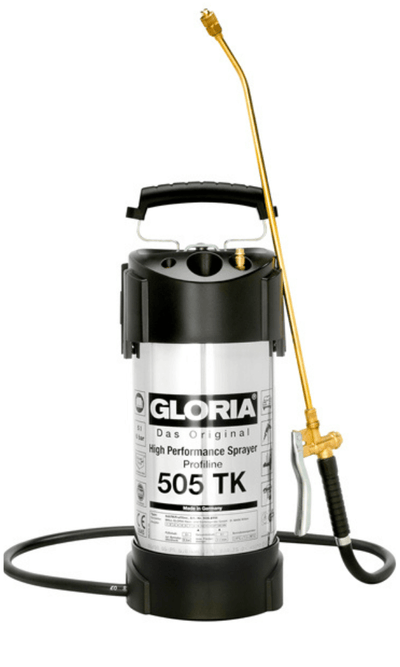

The Gloria 505TK Anti Damp Injector is the 5 litre stainless steel pressure sprayer fitted with three brass injector lances (25, 35 and 45 cm), a 2.5 m hose and a brass trigger, for injecting damp proofing treatments. It has VITON (FKM) seals, a pressure gauge, an automatic and manual relief valve, and pressurises by hand or from an air line. It holds 5.0L in an 8.0L tank and works at up to 6 bar (85 PSI).
VITON (FKM) seals.
Key specifications
- Liquid capacity 5.0L
- Total capacity 8.0L
- Max pressure 6 bar / 85 PSI
- Seals VITON (FKM)
- Bottle or tank Stainless Steel
- Hose 2.5 m
Key benefits
- Three brass injector lances, 25, 35 and 45 cm
- Pressure gauge holds the same pressure hole to hole
- Pump by hand or from an air line
- Automatic and manual relief valve
- VITON (FKM) seals
- 2.5 m hose and brass trigger
Application fields
What it is for
Damp proofing work where the treatment is injected rather than sprayed. Pick the injector length to suit the wall, and use the gauge to hold the same pressure from hole to hole.
Damp proofing products differ. Send us the product's SDS and we will confirm the VITON seals suit it before you fill, and always follow the product label.
How to use it
Release any pressure, open the filler and fill to no more than the 5.0L mark. Close it, then pump by hand or connect an air line to the compressor connection, and watch the gauge: never go past 6 bar. The safety relief valve vents automatically and can be opened by hand.
After the job, release the pressure, decant leftover product back into its container, rinse the tank with clean water and pump some through the injector so the line comes clean. Store it depressurised.
Keep it running

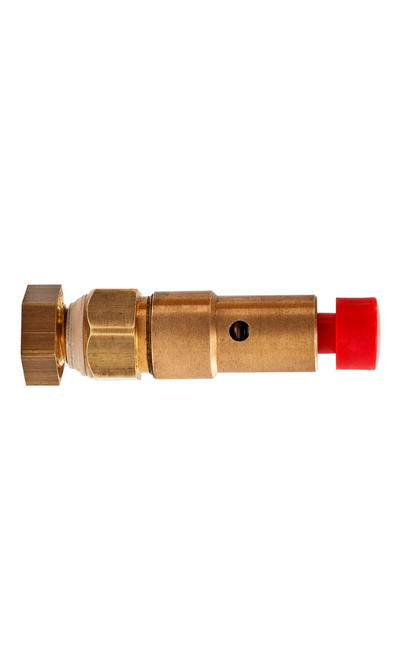

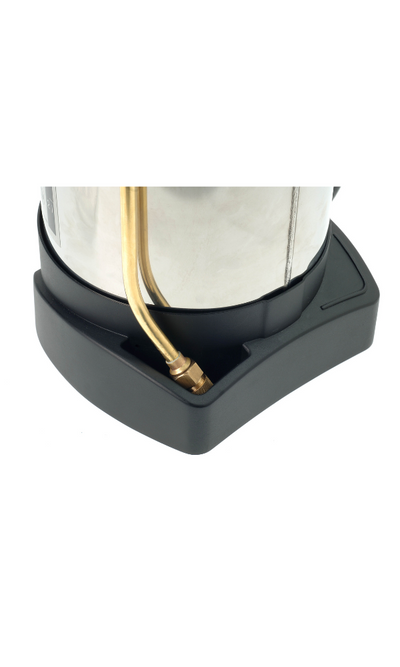

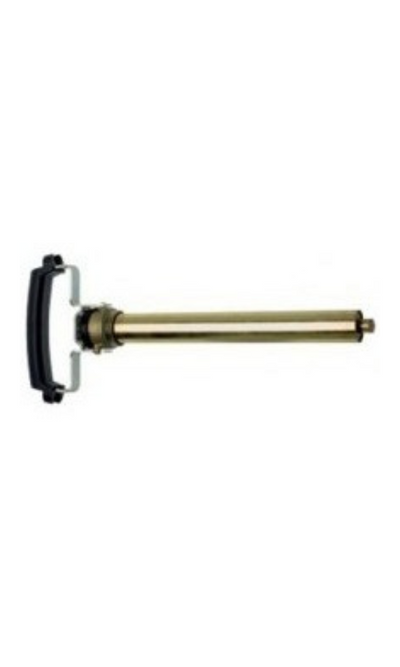

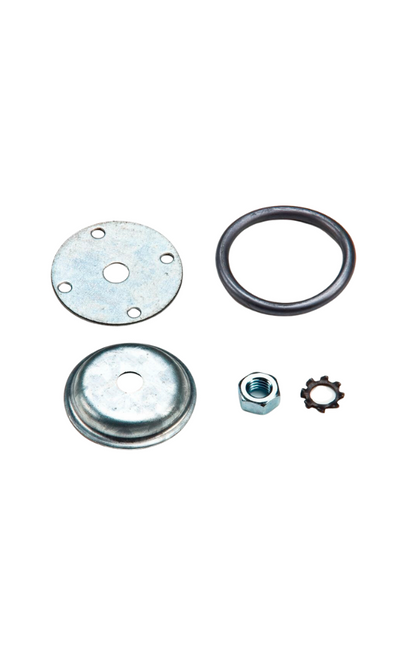

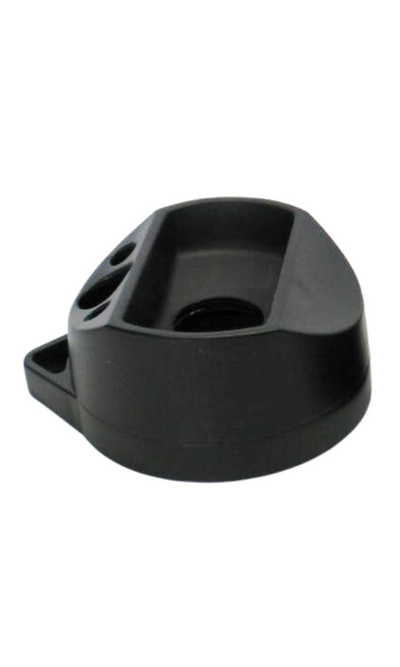

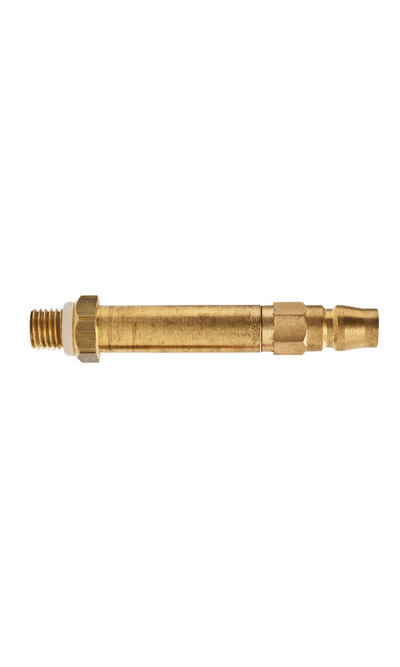

The brass pump, piston plate kit, relief valve, base ring, filling funnel and air connector are stocked as genuine Gloria spares. Contractors and resellers can request a quote or apply for a trade account. Genuine Gloria, supplied by NORA PRO. See the larger Gloria 510TK Anti Damp Injector and the concrete and construction range.
Technical details
- Brand
- GLORIA
- Item number
- 02 000506.0101
- Seal Type
- VITON (FKM)
- Bottle/Tank Material
- Stainless Steel
- Total Capacity
- 8.0L
- Liquid Capacity
- 5.0L
- Max Pressure
- 6 bar / 85 PSI
- Pressure Gauge
- YES
- Safety Release Valve
- Automatic & Manual
- Compressor Connection
- YES
- Injector
- 3 brass injector lances: 25, 35 and 45 cm
- Trigger
- Brass
- Hose
- 2.5 m
Common questions
Which injector lance should I use?
It comes with 25, 35 and 45 cm brass injectors. Use the one that reaches the depth the damp proofing product's instructions call for.
Which damp proofing products can I use in it?
Send us the SDS and we will confirm. It has VITON seals.
