LAFFERTY - USA
1-Way APV-PD Concrete Sprayer, Wall Mount
Item no. 07 932600-V

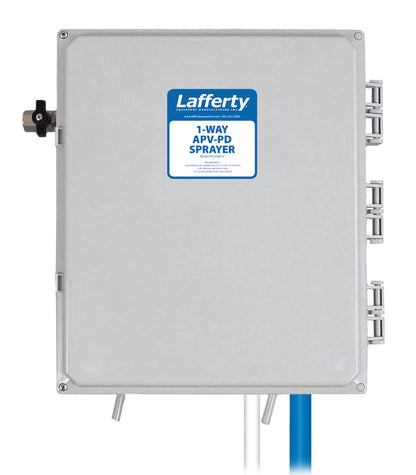

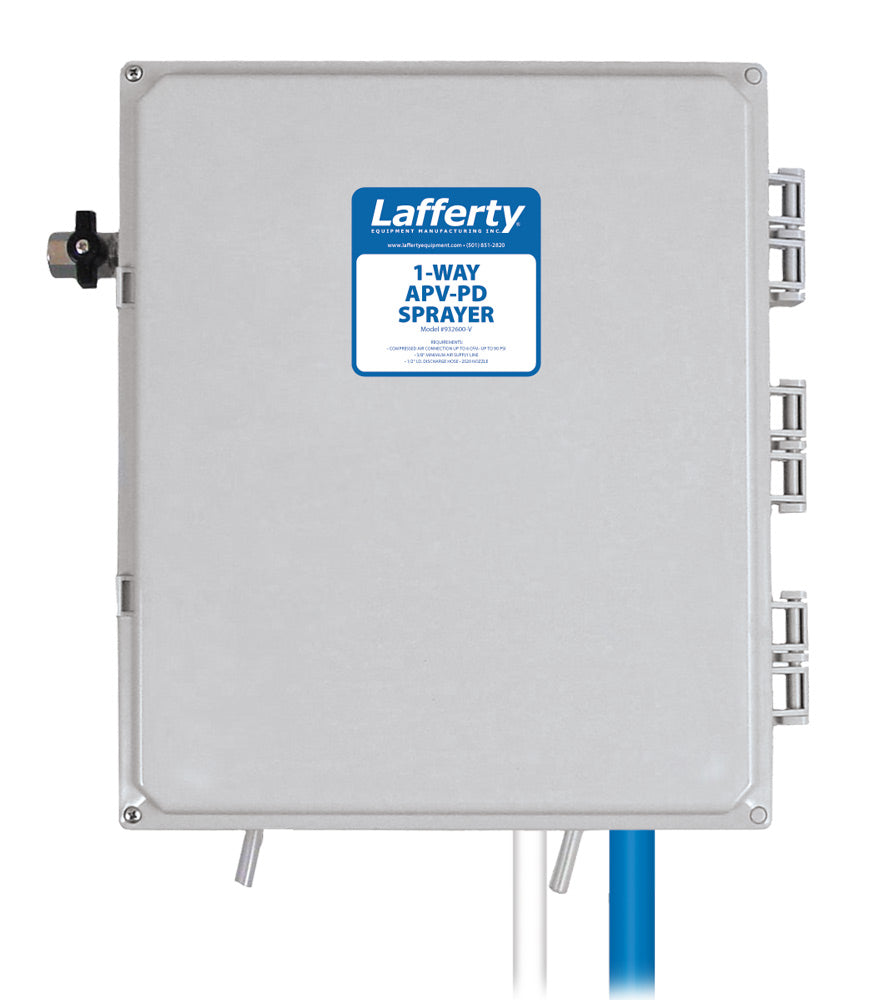

The Lafferty 1-Way APV-PD Concrete Sprayer is a wall mounted acid sprayer for strong, corrosive products such as concrete removers and aluminium brighteners. It runs on compressed air alone, with no water connection or power point needed. A Flojet 0.64 cm (1/4 inch) air operated double diaphragm pump with VITON diaphragms draws ready to use acid solution from a tank or drum and sprays it through the hose, wand and fan nozzle.
For acids.
Key specifications
- Discharge Hose 1.27 cm (1/2 inch) ID x 15.2 m with PVC ball valve
- Wand and Nozzle Polypropylene extended wand, fan nozzle 2520 with nozzle protector
- Chemical Type Acid, ready to use solution
Not sure it suits your chemical? Check it in our Chemical Compatibility Guide.
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Key benefits
- Runs on compressed air alone
- Flojet pump with VITON diaphragms
- Set flow cuts run off and overspray
- Fan nozzle with nozzle protector
- 15.2 m hose and wand included
Product information
The flow is set to give the right amount of spray, which avoids run off and overspray and saves the pump from running flat out all day. The fan nozzle covers ground quickly and a nozzle protector guards the tip. All wetted parts are corrosion resistant. Check your chemical is compatible with VITON, and fit an air filter or dryer on the air supply as Lafferty recommends.

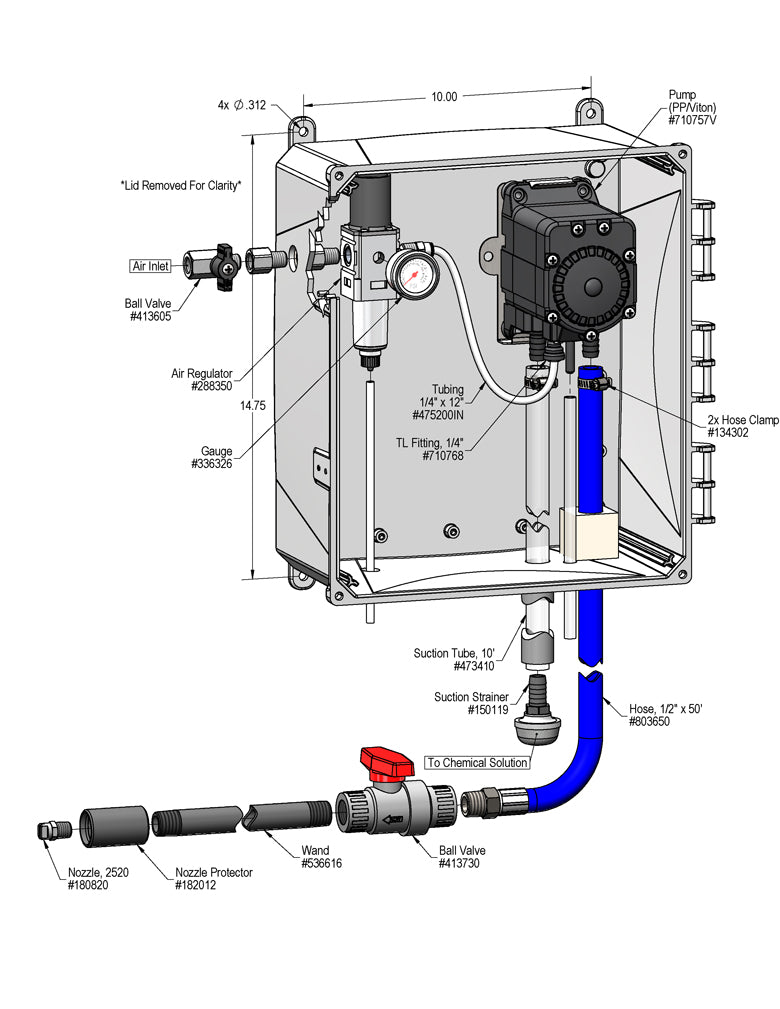

Supplied in a chemical resistant plastic enclosure with an air inlet ball valve, air regulator and filter with gauge, the Flojet pump, a 3 m suction tube with strainer, a 15.2 m discharge hose with PVC ball valve, a polypropylene extended wand, a fan nozzle and a nozzle protector. The solution must be diluted before use. If you would rather apply foam, see the 1-Way FPV-PD Concrete Foamer. For water powered acid spraying see the 1-Way Acid W-25HC Spray-All. A large stainless steel hose rack and drum and tote pick up sticks are available.
Applications: Concrete and cement removal, aluminium brightening, metal processing and industrial acid cleaning
Technical details
- Brand
- LAFFERTY
- Item number
- 07 932600-V
- Lafferty Part No.
- 932600-V
- Mounting
- Wall, chemical resistant plastic enclosure
- Power
- Compressed air, no water or power connection
- Pump
- Flojet 0.64 cm (1/4 inch) air operated double diaphragm, VITON diaphragms
- Chemical Type
- Acid, ready to use solution
- Application
- Spray, not foam
- Compressed Air
- Up to 113 L/min (4 CFM) at 6.2 bar (90 psi), regulator preset to 4.1 bar (60 psi)
- Air Supply Line
- 0.95 cm (3/8 inch) minimum
- Suction Tube
- 3 m with strainer
- Discharge Hose
- 1.27 cm (1/2 inch) ID x 15.2 m with PVC ball valve
- Wand and Nozzle
- Polypropylene extended wand, fan nozzle 2520 with nozzle protector
- Enclosure Size
- About 25.4 x 37.5 cm
- Shipping Weight
- 11.3 kg
- Shipping Size
- 68.6 x 48.3 x 22.9 cm
- Fittings
- US NPT threads, check against your site fittings
