LAFFERTY - USA
Drum Bung Mount Acid Airless Foamer
Item no. 07 972225

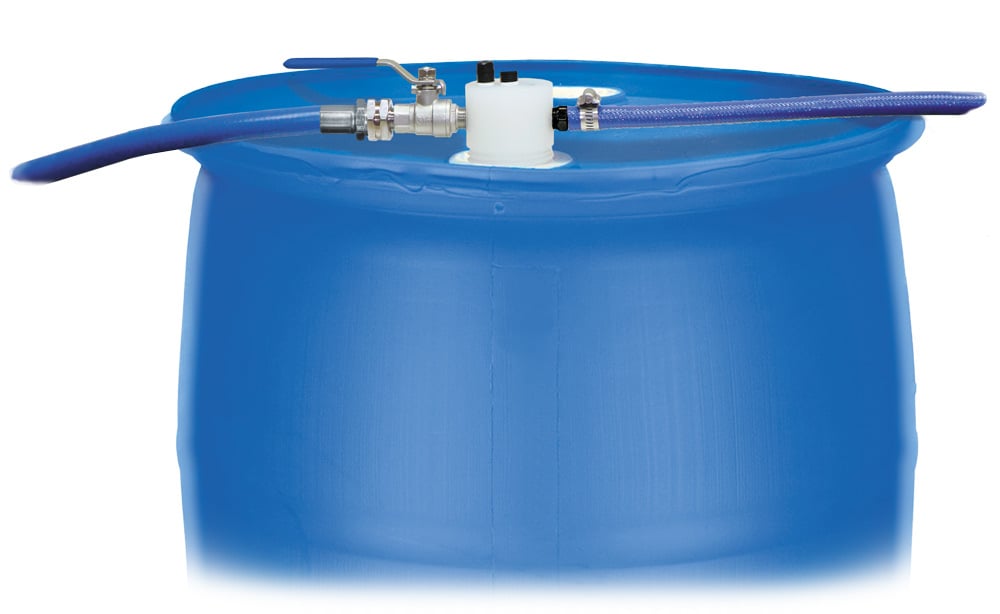

The Lafferty Drum Bung Mount Acid Airless Foamer screws straight into the bung of an acid drum and foams from it, so there is no decanting and no wall mounting. It runs on mains water pressure alone, with no compressed air, and mixes as strong as about 4 to 1, with metering tips for weaker ratios.
For acids.
Key specifications
- Discharge Hose 1.27 cm (1/2 inch) ID x 15.2 m with plastic ball valve
- Wand Extended wand and A-25 airless foam wand
- Chemical Type Acid
Not sure it suits your chemical? Check it in our Chemical Compatibility Guide.
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Product information
The injector body has both fine and coarse threads to suit common drum bungs. The solution flows down the hose to the airless foam wand, which draws in outside air to make a wet, clinging foam. It can be set up with the plug on top or underneath, and the second layout makes it harder for anyone to change the setting.

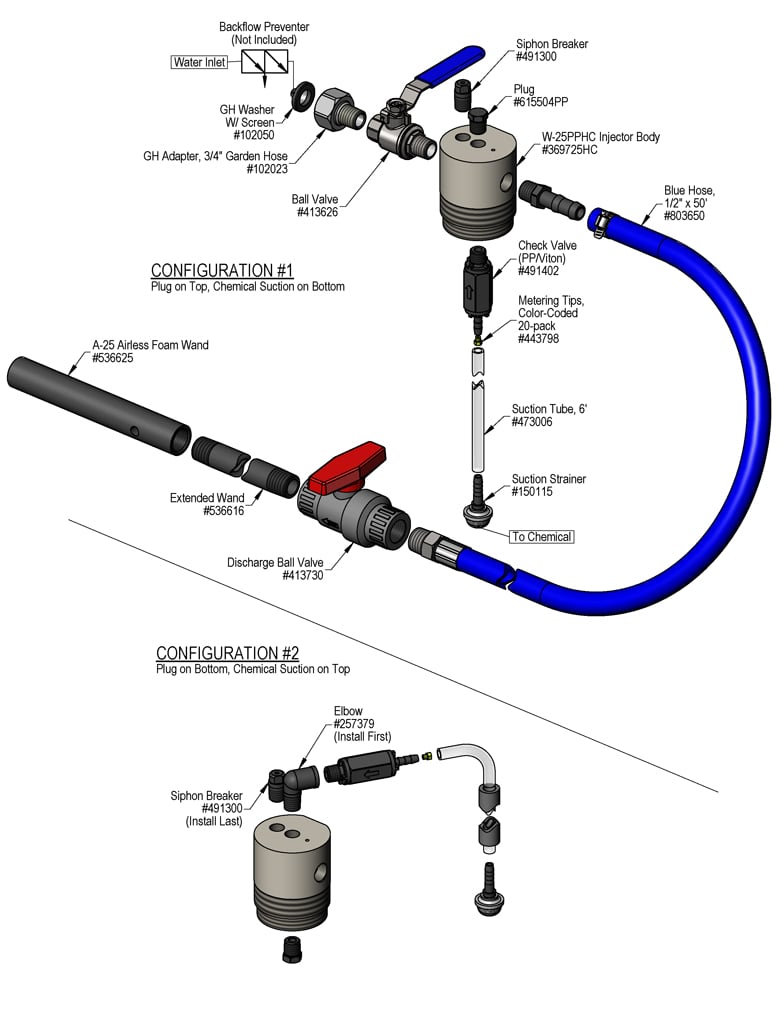

Supplied with the acid resistant drum bung injector, stainless steel inlet ball valve, garden hose adaptor, VITON chemical check valve, siphon breaker, 20 colour coded metering tips, a 1.8 m suction tube with strainer, a 15.2 m discharge hose with a plastic ball valve, an extended wand and the A-25 airless foam wand.
Applications: Concrete removal, aluminium brightening and acid washing straight from the drum, mobile and temporary wash sites
Technical details
- Brand
- LAFFERTY
- Item number
- 07 972225
- Lafferty Part No.
- 972225
- Mounting
- Drum bung, fine and coarse threads
- Power
- Mains water pressure only, no compressed air
- Chemical Type
- Acid
- Water Pressure
- 2.4 to 8.6 bar (35 to 125 psi)
- Water Flow
- About 4.9 L/min at 2.8 bar
- Water Temperature
- Up to 71°C
- Supply Line
- 1.27 cm (1/2 inch)
- Strongest Ratio
- About 4 to 1 with no metering tip
- Discharge Hose
- 1.27 cm (1/2 inch) ID x 15.2 m with plastic ball valve
- Wand
- Extended wand and A-25 airless foam wand
- Check Valve
- VITON (chemical)
- Shipping Weight
- 6.8 kg
- Fittings
- US garden hose and NPT threads, check against your site fittings
- Backflow Preventer
- Not included, fit one to suit local plumbing rules
