LAFFERTY - USA

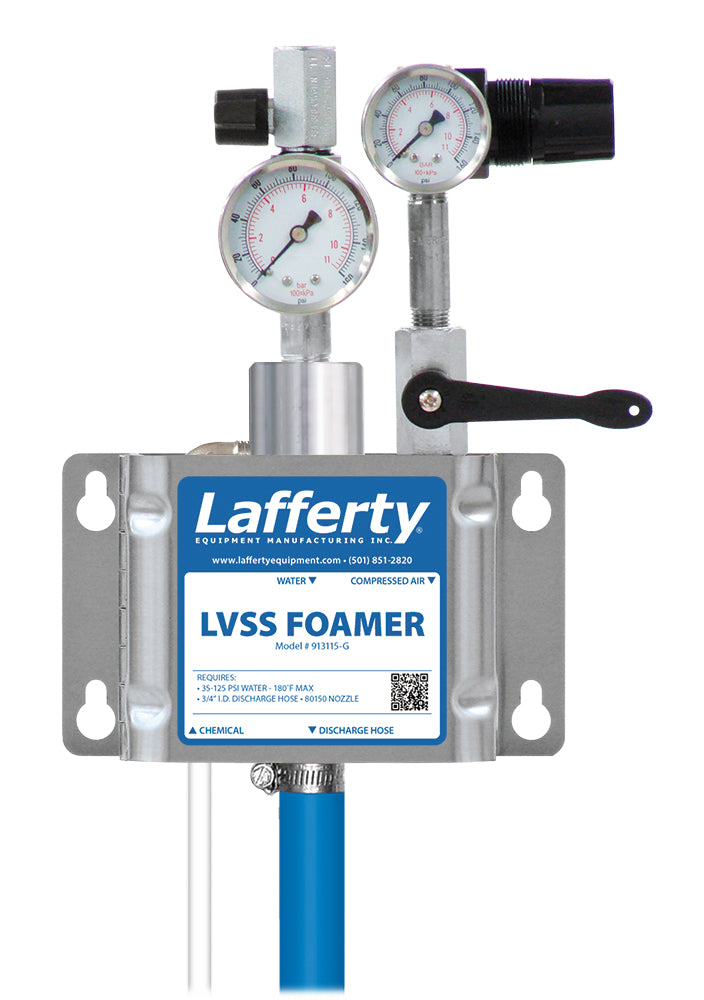

LVSS Stainless Steel Foamer with Gauges, Wall Mount
Item no. 07 913115-G
The Lafferty LVSS Foamer is the stainless steel version of our LV Foamer. It is a low volume, wall mounted foamer for small areas, tight spaces and cleaning around sensitive equipment, with little overspray. The machined stainless steel body gives the most chemical and temperature resistance in the LV range, and Lafferty lists food and beverage plants, dairies and metal processing among its uses.
Key specifications
- Discharge Hose 1.9 cm (3/4 inch) ID x 12.2 m with stainless steel ball valve
- Wand and Nozzle Polypropylene foam wand, fan nozzle 80150
- Gauges Water and air pressure
- Dilution Range About 149 to 1 down to 5 to 1 at 2.8 bar
- Body Machined stainless steel
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Key benefits
- Machined stainless steel foamer body
- Low volume foam with little overspray
- Water up to 82°C
- Water and air gauges for repeatable set up
- 20 colour coded metering tips
Product information
It runs on mains water pressure plus compressed air. The venturi draws chemical concentrate in at the ratio set by a colour coded metering tip, from about 149 to 1 up to about 5 to 1 with no tip. Compressed air turns the solution into a rich, clinging foam, and the fan nozzle places it accurately up to 2.7 m away. Water and air gauges on the unit take the guesswork out of set up.

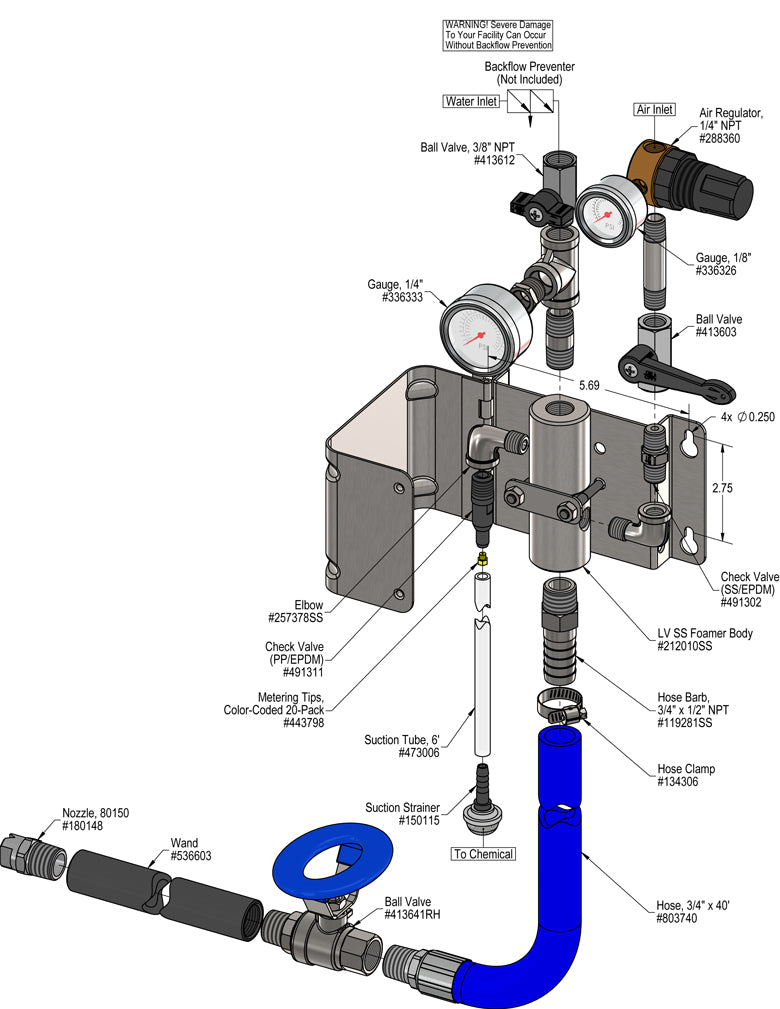

Supplied with a stainless steel bracket, the stainless steel foamer body, water and air gauges, an air regulator, 20 colour coded metering tips, a suction tube and strainer, a 12.2 m discharge hose with a stainless steel ball valve, a polypropylene foam wand and a fan nozzle. Check valves are EPDM as standard, with VITON available. A backflow preventer is not included; we list a Lafferty backflow preventer to suit.
Applications: Food and beverage plants, dairies, animal health, metal processing, vehicle wash and small area cleaning
Technical details
- Brand
- LAFFERTY
- Item number
- 07 913115-G
- Lafferty Part No.
- 913115-G
- Mounting
- Wall, stainless steel bracket
- Power
- Mains water pressure plus compressed air
- Body
- Machined stainless steel
- Water Pressure
- 2.4 to 8.6 bar (35 to 125 psi); above 6.9 bar (100 psi) lower the pressure or remove the discharge valve
- Water Flow
- About 2.5 L/min at 2.8 bar (40 psi)
- Water Temperature
- Up to 82°C
- Supply Line
- 1.27 cm (1/2 inch)
- Compressed Air
- Up to 35 L/min (1.25 CFM)
- Dilution Range
- About 149 to 1 down to 5 to 1 at 2.8 bar
- Gauges
- Water and air pressure
- Discharge Hose
- 1.9 cm (3/4 inch) ID x 12.2 m with stainless steel ball valve
- Wand and Nozzle
- Polypropylene foam wand, fan nozzle 80150
- Foam Throw
- Up to 2.7 m
- Coverage
- Up to 46.5 m² in 4.5 minutes
- Check Valves
- EPDM standard, VITON available
- Fittings
- Water inlet ball valve 0.95 cm (3/8 inch) NPT, air regulator 0.64 cm (1/4 inch) NPT. US NPT threads, check against your site fittings
- Backflow Preventer
- Not included, fit one to suit local plumbing rules. See our Lafferty backflow preventer
