LAFFERTY - USA
Ultimate Foamer with Gauges, Wall Mount
Item no. 07 914105-G

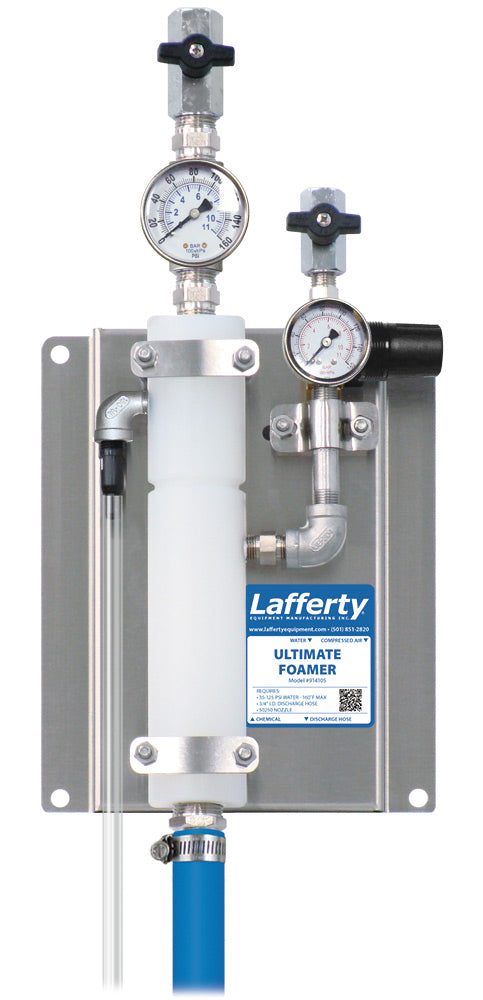

The Lafferty Ultimate Foamer is a medium volume, wall mounted foamer for cleaning medium to large surfaces. It sits between the LC Foamer and the HV Foamer, and suits food and beverage plants, dairies, vehicle wash bays and general industrial washdown.
Key specifications
- Discharge Hose 1.9 cm (3/4 inch) ID x 15.2 m with stainless steel ball valve
- Wand and Nozzle Polypropylene foam wand, fan nozzle 50250
- Gauges Water and air pressure
- Dilution Range About 306 to 1 down to 6 to 1 at 2.8 bar
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Key benefits
- Medium volume foam for medium to large areas
- Covers up to 46.5 m² in 2 minutes
- Water and air gauges for repeatable set up
- 20 colour coded metering tips
- Foam adjusts from wet to dry
Product information
It runs on mains water pressure plus compressed air. Water passes through a venturi that draws chemical concentrate in at the ratio set by a colour coded metering tip, from about 306 to 1 up to about 6 to 1 with no tip. Compressed air then turns the solution into a rich, clinging foam, and the fan nozzle throws it up to 3.7 m. Lafferty rates it at up to 46.5 m² in 2 minutes. Water and air gauges on the unit make set up quicker and help with fault finding.

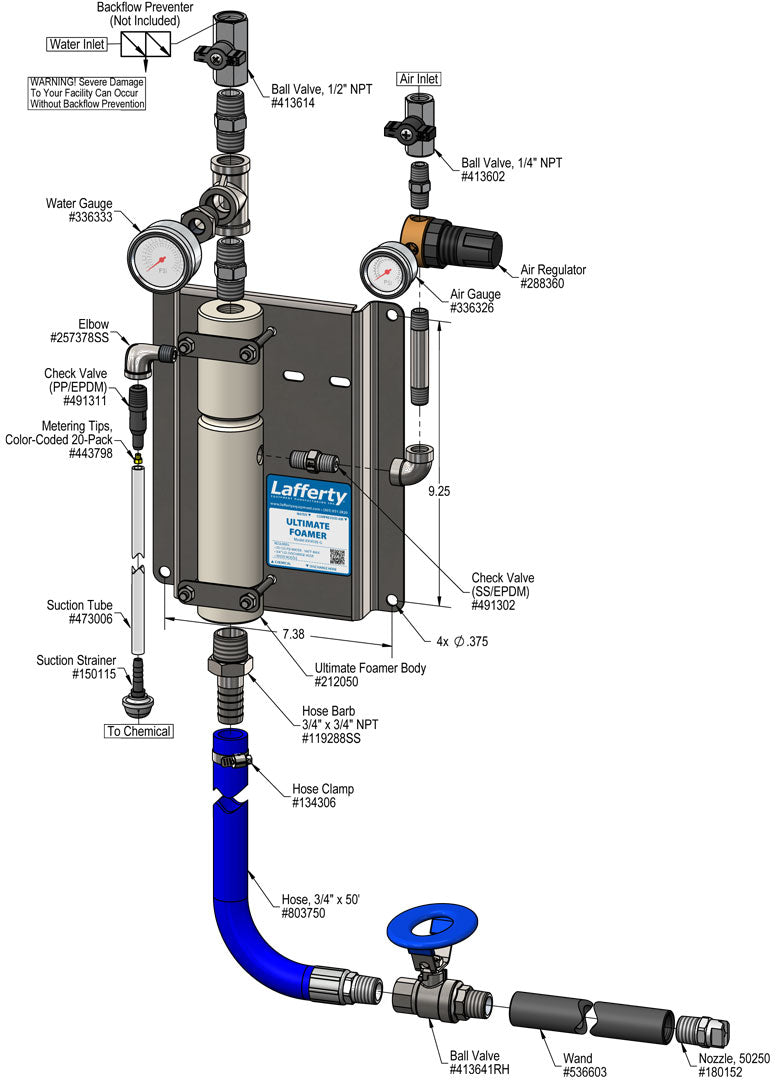

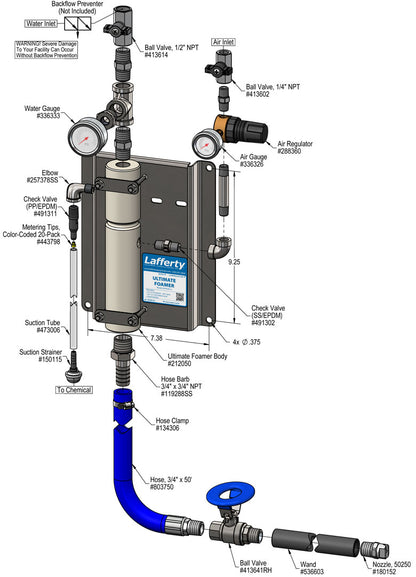

Supplied with a stainless steel bracket, a machined polypropylene foamer body, water and air gauges, an air regulator, 20 colour coded metering tips, a suction tube and strainer, a 15.2 m discharge hose with a stainless steel ball valve, a polypropylene foam wand and a fan nozzle. Check valves are EPDM as standard, with VITON available. A backflow preventer is not included; we list a Lafferty backflow preventer to suit. Keep the hose tidy on a large stainless steel hose rack.
Applications: Food and beverage plants, dairies, vehicle wash, agriculture and industrial cleaning
Technical details
- Brand
- LAFFERTY
- Item number
- 07 914105-G
- Lafferty Part No.
- 914105-G
- Mounting
- Wall, stainless steel bracket
- Power
- Mains water pressure plus compressed air
- Water Pressure
- 2.4 to 8.6 bar (35 to 125 psi); above 6.9 bar (100 psi) lower the pressure or remove the discharge valve
- Water Flow
- About 5.1 L/min at 2.8 bar (40 psi)
- Water Temperature
- Up to 71°C
- Supply Line
- 1.27 cm (1/2 inch)
- Compressed Air
- Up to 85 L/min (3 CFM)
- Dilution Range
- About 306 to 1 down to 6 to 1 at 2.8 bar
- Gauges
- Water and air pressure
- Discharge Hose
- 1.9 cm (3/4 inch) ID x 15.2 m with stainless steel ball valve
- Wand and Nozzle
- Polypropylene foam wand, fan nozzle 50250
- Foam Throw
- Up to 3.7 m
- Coverage
- Up to 46.5 m² in 2 minutes
- Check Valves
- EPDM standard, VITON available
- Shipping Weight
- 13.6 kg
- Shipping Size
- 71 x 71 x 20 cm
- Fittings
- Water inlet ball valve 1.27 cm (1/2 inch) NPT, air inlet ball valve 0.64 cm (1/4 inch) NPT. US NPT threads, check against your site fittings
- Backflow Preventer
- Not included, fit one to suit local plumbing rules. See our Lafferty backflow preventer
