LAFFERTY - USA
2-Way Acid LC Foamer
Item no. 07 972307

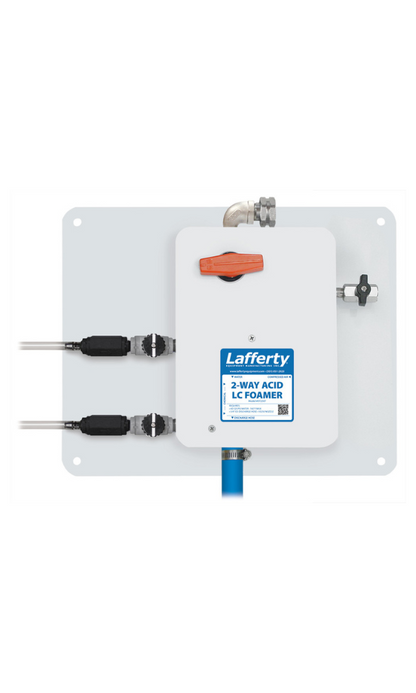

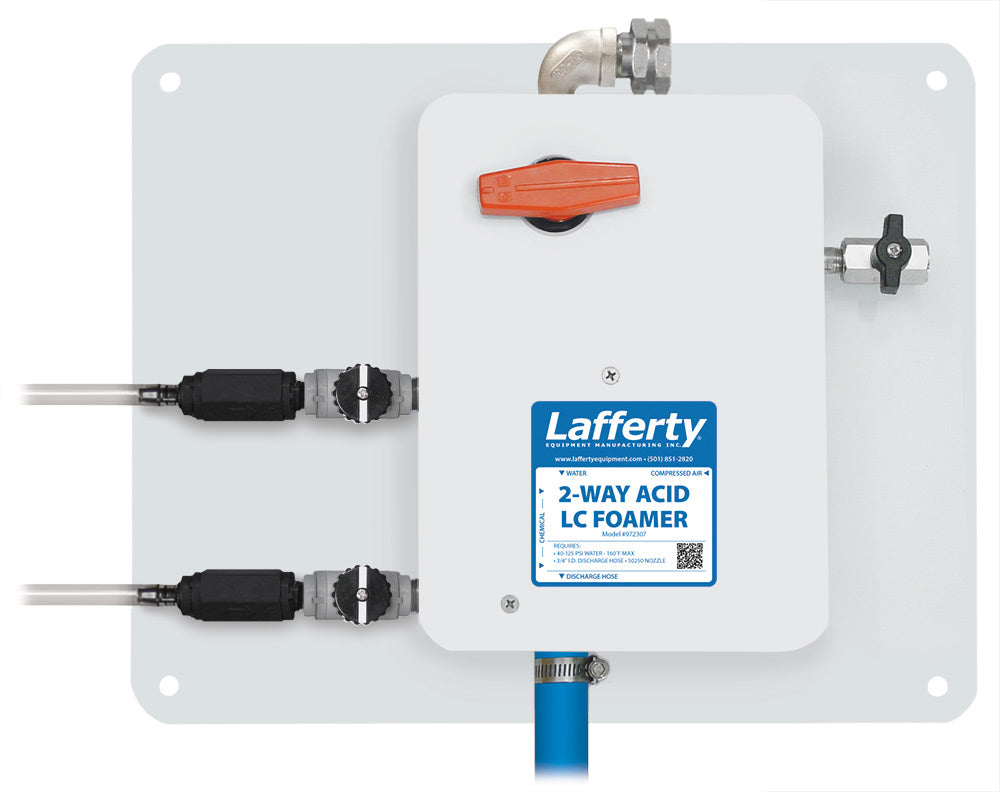

The Lafferty 2-Way Acid LC Foamer is a wall mounted foamer for acid cleaners such as concrete and cement removers and aluminium brighteners. It runs on mains water pressure plus compressed air. Water passes through an acid resistant venturi that draws the acid in at the ratio set by the metering tip, then compressed air is injected to turn the solution into a rich, clinging foam.
For acids.
Key specifications
- Discharge Hose 1.9 cm (3/4 inch) ID x 12.2 m, supplied
- Wand and Nozzle Polypropylene extension wand, fan nozzle 50250
- Metering Tips 20 colour coded tips supplied
Not sure it suits your chemical? Check it in our Chemical Compatibility Guide.
Made to order, about 3 to 4 weeks
Download data sheet (PDF)
Key benefits
- Two acids, or two strengths, from one wall station
- Built for strong acids, up to 3.5 to 1
- Air assisted foam, wet to dry
- Concealed air regulator discourages tampering
- Fan nozzle throws foam up to 3.7 m
Product information
Two way means two chemical pick ups, each on its own ball valve. Run one acid, or two different chemicals, separately or together, from the one wall station. The air regulator sits under the cover so the foam setting can't be changed by accident. Medium wet foam gives the best clean and the strongest concentration.

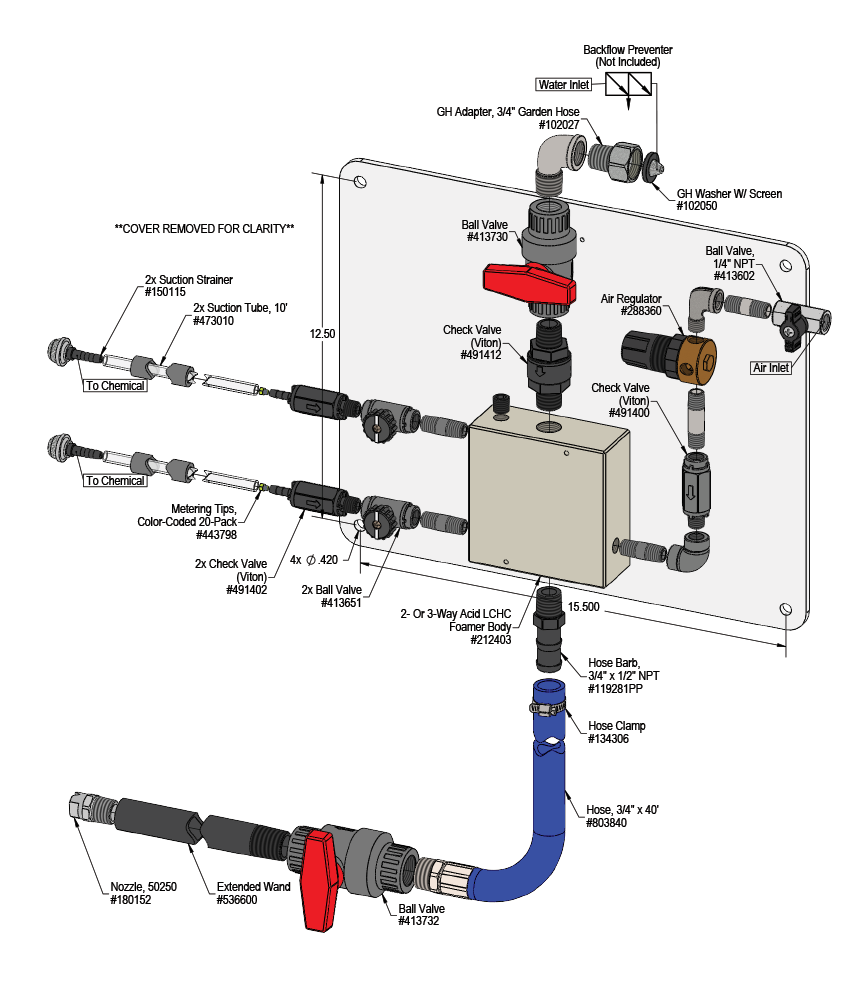

Supplied with a polypropylene bracket and cover, PVC inlet and discharge ball valves, 20 colour coded metering tips, a 12.2 m discharge hose, a polypropylene extension wand and a fan nozzle. Acid duty depends on concentration and temperature as well as the chemical, so send us your SDS and we will confirm the setup. For one chemical only, see the 1-Way Acid LC Foamer.
Applications: Concrete and cement removal, aluminium brightening on trucks and trailers, acid descaling and acid washdown
Technical details
- Brand
- LAFFERTY
- Item number
- 07 972307
- Lafferty Part No.
- 972307
- Function
- 2-way, two chemical pick ups with separate ball valves
- Mounting
- Wall, polypropylene bracket and cover
- Power
- Mains water pressure plus compressed air
- Water Pressure
- 2.8 to 8.6 bar (40 to 125 psi)
- Water Flow
- About 5.1 L/min at 2.8 bar
- Water Temperature
- Up to 71°C
- Supply Line
- 1.27 cm (1/2 inch)
- Compressed Air
- Up to 71 L/min (2.5 CFM), regulator under cover
- Discharge Hose
- 1.9 cm (3/4 inch) ID x 12.2 m, supplied
- Wand and Nozzle
- Polypropylene extension wand, fan nozzle 50250
- Foam Throw
- Up to 3.7 m
- Metering Tips
- 20 colour coded tips supplied
- Shipping Weight
- 12.7 kg
- Fittings
- US NPT threads, check against your site fittings
