GLORIA - Germany
510 TK | 10.0L Stainless Steel Sprayer | Original
Item no. 02 000512.2700

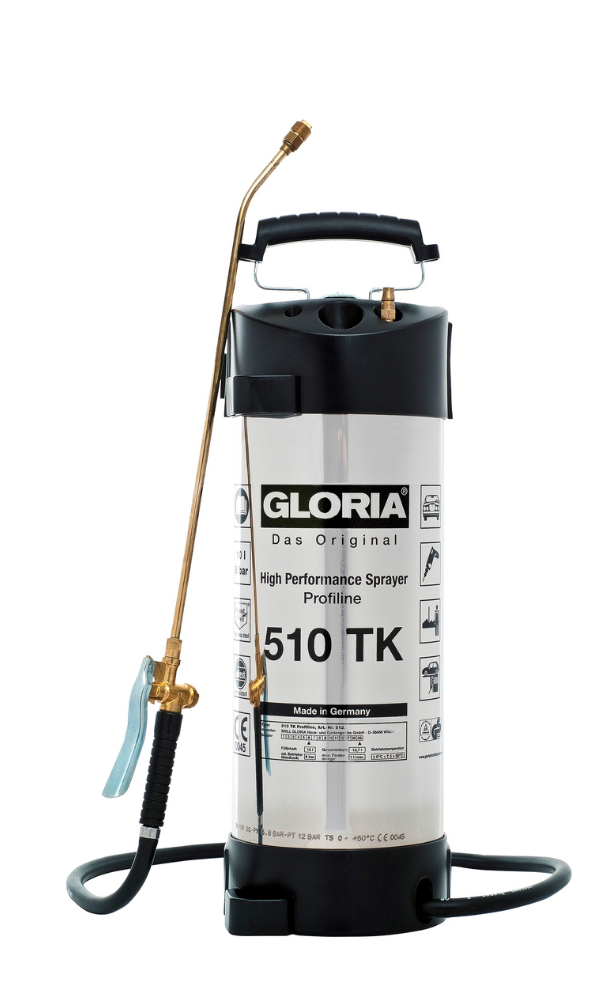

The Gloria 510 TK Profiline is a 10 litre stainless steel pressure sprayer with VITON (FKM) seals, a brass pump and lance, a flat jet 8004E nozzle, a pressure gauge and a Nitto type air intake, so you can pressurise it by hand or from an air line. It holds 10.0 L in a 13.7 L tank and works at up to 6 bar (85 PSI), for big areas with fewer refills.
VITON (FKM) seals.
Key specifications
- Liquid capacity 10.0L
- Total capacity 13.7L
- Max pressure 6 bar / 85 PSI
- Seals VITON (FKM)
- Bottle or tank Stainless Steel
- Pump Brass
Not sure it suits your chemical? Check it in our Chemical Compatibility Guide.
Key benefits
- Holds 10.0L for big areas
- Works at up to 6 bar
- Pump by hand or from an air line
- Pressure gauge shows the charge
- VITON (FKM) seals, oil proof build
- Optional trolley to wheel it around site
Nitto type air intake fitted. NORA PRO supplies this sprayer with a Nitto type air intake, so it clicks straight onto a workshop air line with a Nitto type coupler and charges in seconds instead of hand pumping.
What it is for
Formwork oil, sealers, degreasers, car and truck wash, pest and weed control, and sanitising in food processing, over bigger areas. Gloria builds it oil proof with FKM seals.
It suits most solvent and petroleum based liquids, such as degreasers, lubricants, formwork oil, sealers, tyre shine and pesticides. It is not suitable for acids, alkaline products or acetone based products. For solvent based sealers over big areas, see the Volkanex 12.0L air driven sealer sprayer. For acids use the Gloria PRO 500 JET acid resistant, and for caustics the Gloria CLEAN 500. You can also look your chemical up in the Chemical Compatibility Guide.
How to use it
Release any pressure, open the filler and fill to no more than the 10.0L mark, leaving air space to hold the charge. Close it, then pump by hand or connect an air line to the Nitto type air intake, and watch the gauge: never go past 6 bar. The safety relief valve vents automatically and can be opened by hand. The brass quick acting valve, brass lance and flat jet 8004E nozzle give a steady pattern for long runs.
After the job, release the pressure with the relief valve, decant leftover chemical back into its container, rinse the tank with clean water and spray some through so the hose, lance and nozzle come clean. The residual drain lets the last of the liquid out. Store it depressurised. Wear the gloves and eye protection the SDS calls for.
Keep it running

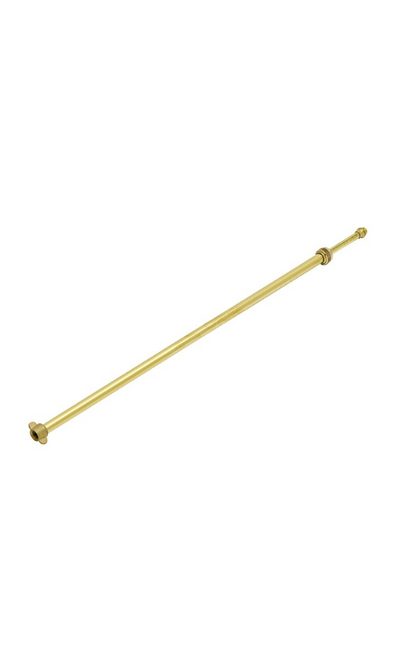

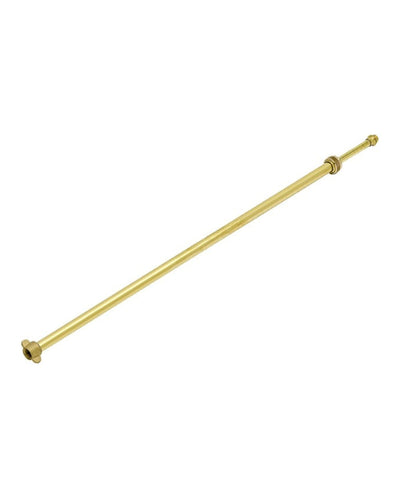

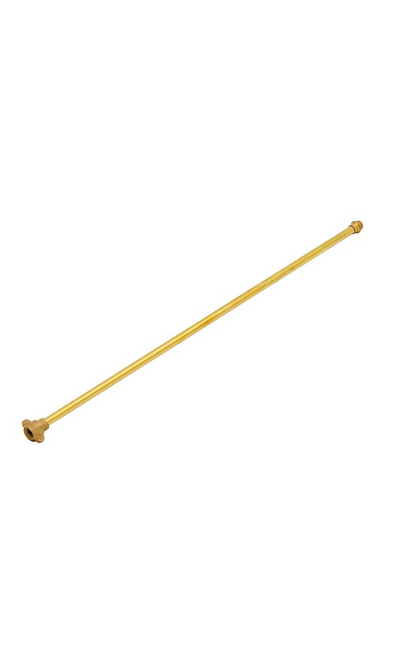

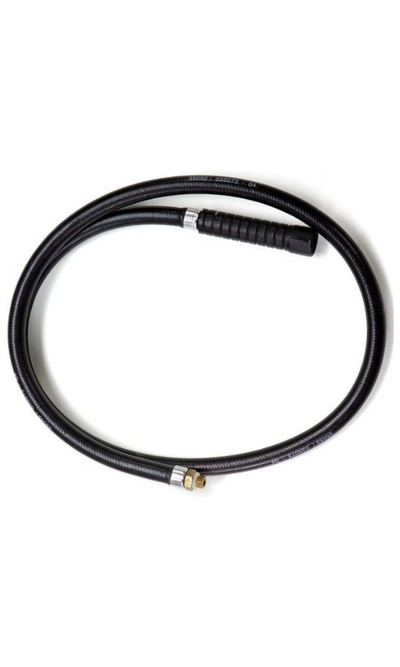

The piston plate kit, relief valve, base ring, filling funnel, Nitto type air connector and hose are stocked as genuine Gloria spares, and a trolley for the 510 TK lets you wheel a full tank around site. Add a 0.5 m brass extension lance or a 1 m or 2 m telescopic lance for reach.
Contractors, workshops and resellers can request a quote or apply for a trade account. Genuine Gloria, supplied by NORA PRO. See all stainless steel sprayers, or the smaller Gloria 505 TK.
Technical details
- Brand
- GLORIA
- Item number
- 02 000512.2700
- Seal Type
- VITON (FKM)
- Bottle/Tank Material
- Stainless Steel
- Pump Material
- Brass
- Total Capacity
- 13.7L
- Liquid Capacity
- 10.0L
- Max Pressure
- 6 bar / 85 PSI
- Pressure Gauge
- YES
- Safety Release Valve
- Automatic & Manual
- Air Intake
- Nitto type
- Base Ring
- YES
- Lance & Trigger
- Brass
- Nozzle
- Flat jet 8004E
Common questions
505 TK or 510 TK?
Same seals, pressure and features, including the Nitto type air intake. The 510 TK holds 10.0 L for big areas, and the 505 TK holds 5.0 L and is lighter to carry.
Can I pressurise it from a compressor?
Yes. It has a Nitto type air intake, so connect a workshop air line with a Nitto type coupler and watch the gauge. Never go past 6 bar.
Can I use it for acids or caustics?
No. Use the Gloria PRO 500 JET acid resistant for acids and the Gloria CLEAN 500 for alkaline cleaners.
Can I use it for solvents or brake cleaner?
Yes, most petroleum solvents, degreasers and solvent based sealers. It is not for acetone based products.
